aston martin dbs (2007) front lightweight seat parts diagram

011001-B1 - Front Lightweight Seat

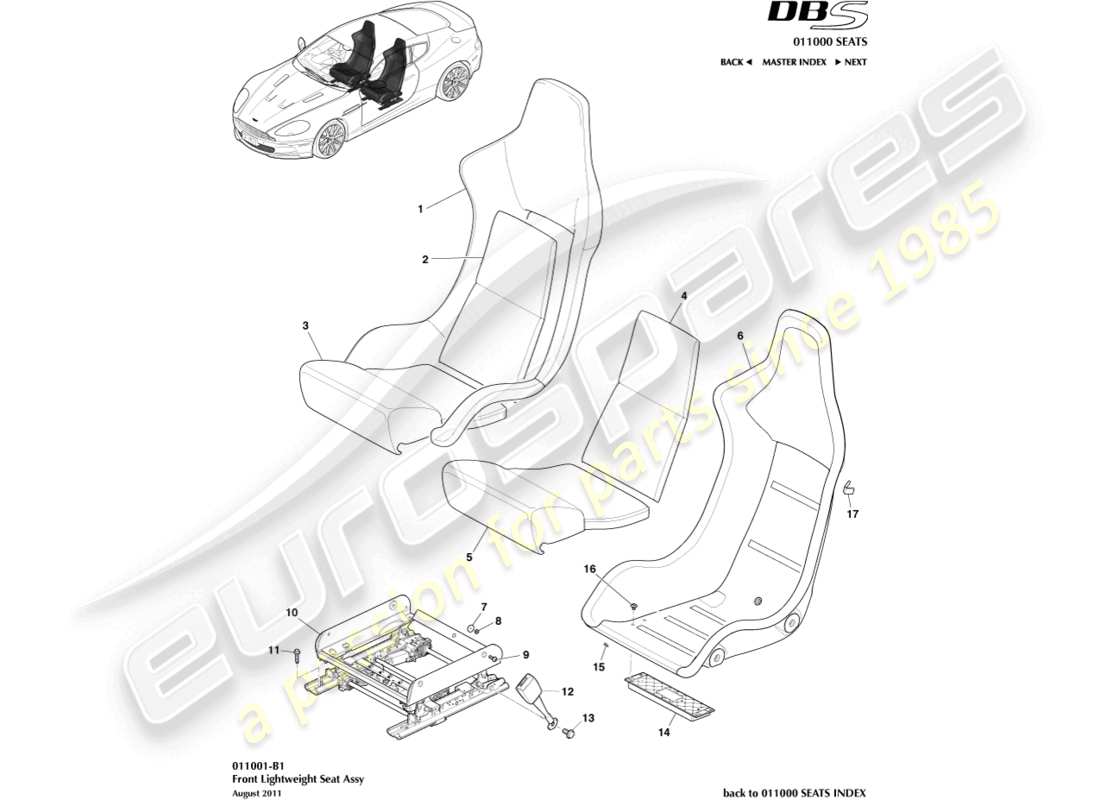

Aston Martin DBS (2007) Front Lightweight Seat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # -
                            MPN: 8D33-60008-ADW
                            FRONT SEAT ASSY, COMPLETE TRIMMED, RHS
                            from £10,489.83
                            from £10,489.83
                            FRONT SEAT ASSEMBLY, COMPLETE TRIMMED, RHS Genuine Aston Martin - New (to order)
                            # -
                            MPN: 8D33-60009-ADW
                            FRONT SEAT ASSY, COMPLETE TRIMMED, LHS
                            from £10,489.83
                            from £10,489.83
                            FRONT SEAT ASSEMBLY, COMPLETE TRIMMED, LHS Genuine Aston Martin - New (to order)
                            # -
                            MPN: 8D33-600C14-AE
                            FRONT SEAT ASSY, COMPLETE, NOT TRIMMED
                            FRONT SEAT ASSEMBLY, COMPLETE, NOT TRIMMED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: 8D33-60136-ACW
                            KIT, LEATHER COVER SQUAB ASSY RHS
                            KIT, LEATHER COVER SQUAB ASSEMBLY RHS Genuine Aston Martin - New (to order)
                            # 1
                            MPN: 8D33-60136-ACW
                            KIT, LEATHER COVER SQUAB ASSY LHS
                            KIT, LEATHER COVER SQUAB ASSEMBLY RHS Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 8D33-60050-BAW
                            KIT, LEATHER COVER CUSHION ASSY
                            from £4,970.82
                            from £4,970.82
                            FRONT ST CSH ASSEMBLY RH Genuine Aston Martin - New (to order)
                            # 3
                            MPN: 8D33-64572-ABW
                            KIT, LEATHER COVER OUTER SEAT ASSY
                            KIT, LEATHER COVER OUTER SEAT ASSEMBLY Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 8D33-60136-BAW
                            SQUAB ASSY, TRIMMED, LIGHTWEIGHT SEAT BACK, RHS
                            SQUAB ASSEMBLY, TRIMMED, LIGHTWEIGHT SEAT BACK, RHS Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 8D33-60137-BAW
                            SQUAB ASSY, TRIMMED, LIGHTWEIGHT SEAT BACK, LHS
                            from £4,269.06
                            from £4,269.06
                            SQUAB ASSEMBLY, TRIMMED, LIGHTWEIGHT SEAT BACK, LHS Genuine Aston Martin - New (to order)
                            # 5
                            MPN: 8D33-60050-BAW
                            CUSHION ASSY, TRIMMED, LIGHTWEIGHT SEAT
                            from £4,970.82
                            from £4,970.82
                            FRONT ST CSH ASSEMBLY RH Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 8G33-617B94-AA
                            SCREW, SHELL FIXINGS
                            SCREW, SHELL FIXINGS Genuine Aston Martin - New (to order)
                            # 10
                            MPN: 4G43-74-10116
                            SEAT TRACK ASSY, LIGHTWEIGHT
                            from £1,383.16
                            from £1,383.16
                            HEIGHT ADJUSTER-6WAY Genuine Aston Martin - New (to order)
                            HEIGHT ADJUSTER-6WAY Genuine Aston Martin - Used In stock
                            Driver side
                            # 11
                            MPN: 702687
                            BOLT, M8X30 HEX FLG
                            BOLT M8 X 30 Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 4G43-613K22-BD
                            BELT BUCKLE ASSY, FRONT SEAT
                            from £166.54
                            from £166.54
                            BKLE ASY FRONT BEL Genuine Aston Martin - New (to order)
                            # 13
                            MPN: Pt of item 10
                            SCREW, 7/16" UNF
                            SCREW, 7/16" UNF Genuine Aston Martin - New (to order)
                            # 14
                            MPN: 9G43-14C249-AA
                            MODULE, ECU, FRT SEAT
                            MODULE, ECU, FRONT SEAT Genuine Aston Martin - New (to order)
                            # 14
                            MPN: CG43-14C249-BA
                            MODULE, ECU, FRT SEAT
                            12MY
                            from £173.33
                            from £173.33
                            MODULE, SEAT FUNCTION CONTROL Genuine Aston Martin - New (to order)
                            # 16
                            MPN: 8D33-60302-BA
                            CLIP, EDGE
                            from £0.47
                            from £0.47
                            EDGE CLIP Genuine Aston Martin - New (to order)
                            # 17
                            MPN: AD23-61003-AA
                            CLIP
                            CLIP Genuine Aston Martin - New (to order)
                            # 17
                            MPN: AG33-61003-AA
                            CLIP, CABLE EDGE
                            CLIP, CABLE EDGE Genuine Aston Martin - New (to order)
