aston martin dbs (2013) floor trim, rhd parts diagram

010501-B1 - Floor Trim, RHD

Aston Martin DBS (2013) Floor Trim, RHD Parts Diagram

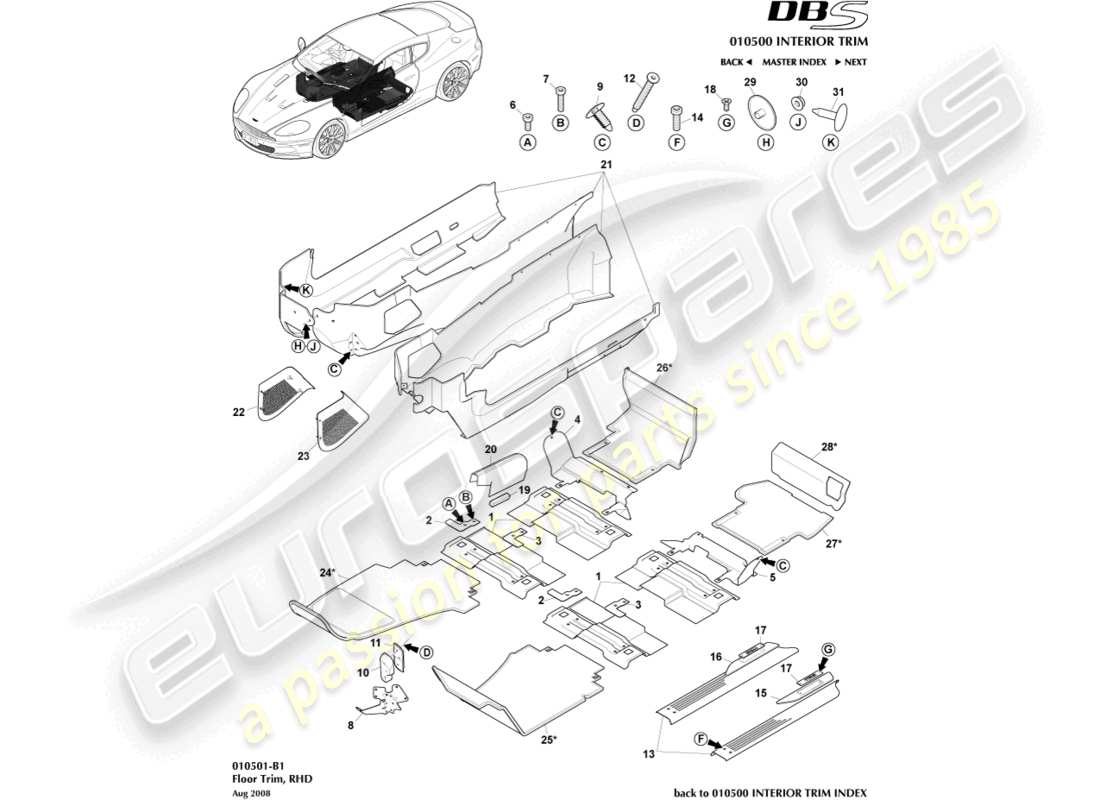

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 8D33-M1H403-AB
                                              FLOOR PAN COVER
                                              from £8.00
                                              from £8.00
                                              FLOOR PAN COVER Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: 6G33-666A40-AA
                                              FINISHER, CARPET RHS
                                              FINISHER, CARPET RHS Genuine Aston Martin - New (to order)
                                              # 3
                                              MPN: 6G33-666A41-AA
                                              FINISHER, CARPET LHS
                                              FINISHER, CARPET LHS Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 4G43-100A90-AA
                                              REAR SUPPORT PANEL RH
                                              from £18.61
                                              from £18.61
                                              RH REAR FLR SPRT PNL Genuine Aston Martin - New (to order)
                                              RH REAR FLR SPRT PNL Genuine Aston Martin - Used In stock
                                              # 5
                                              MPN: 8G43-100A91-AB
                                              REAR SUPPORT PANEL LH
                                              from £46.62
                                              from £46.62
                                              REAR SUPPORT PANEL LH Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 6G33-68D11-BA
                                              SCREW, M5 X 20 CAP HEAD
                                              from £0.81
                                              from £0.81
                                              CAP SCREW - M5X20 Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: 6G33-68D11-AA
                                              SCREW, M5 X 12 CAP HEAD
                                              from £0.47
                                              from £0.47
                                              CAP SCREW - M5X12 Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: 6G33-3N234-AA
                                              BRACKET, FOOTREST
                                              from £13.36
                                              from £13.36
                                              BRACKET FOOTREST RHD Genuine Aston Martin - New (to order)
                                              BRACKET FOOTREST RHD Genuine Aston Martin - Used In stock
                                              # 9
                                              MPN: 4G43-MXC1800-AA

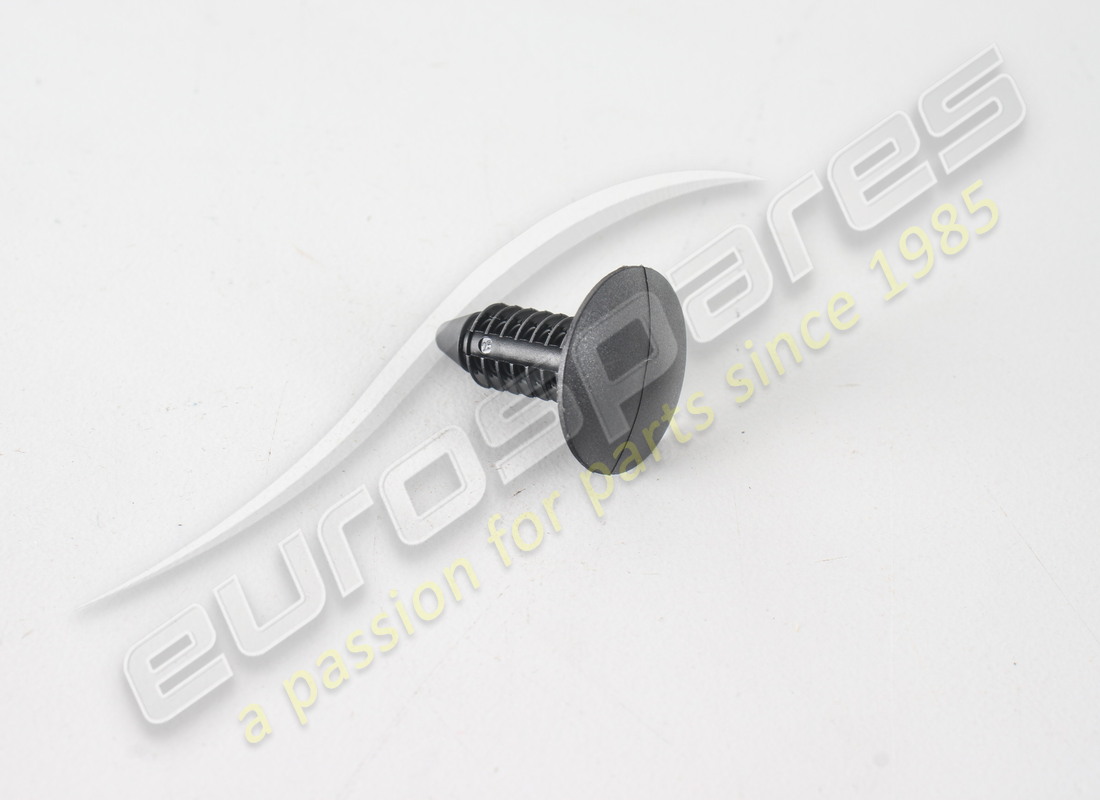

                                              FASTENER, FIRTREE
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 4G43-MXC1800-AA-PK
                                              FASTENER, FIRTREE Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: 6G33-044J08-AA
                                              ENERGY ABSORBER, FOOTREST
                                              from £11.42
                                              from £11.42

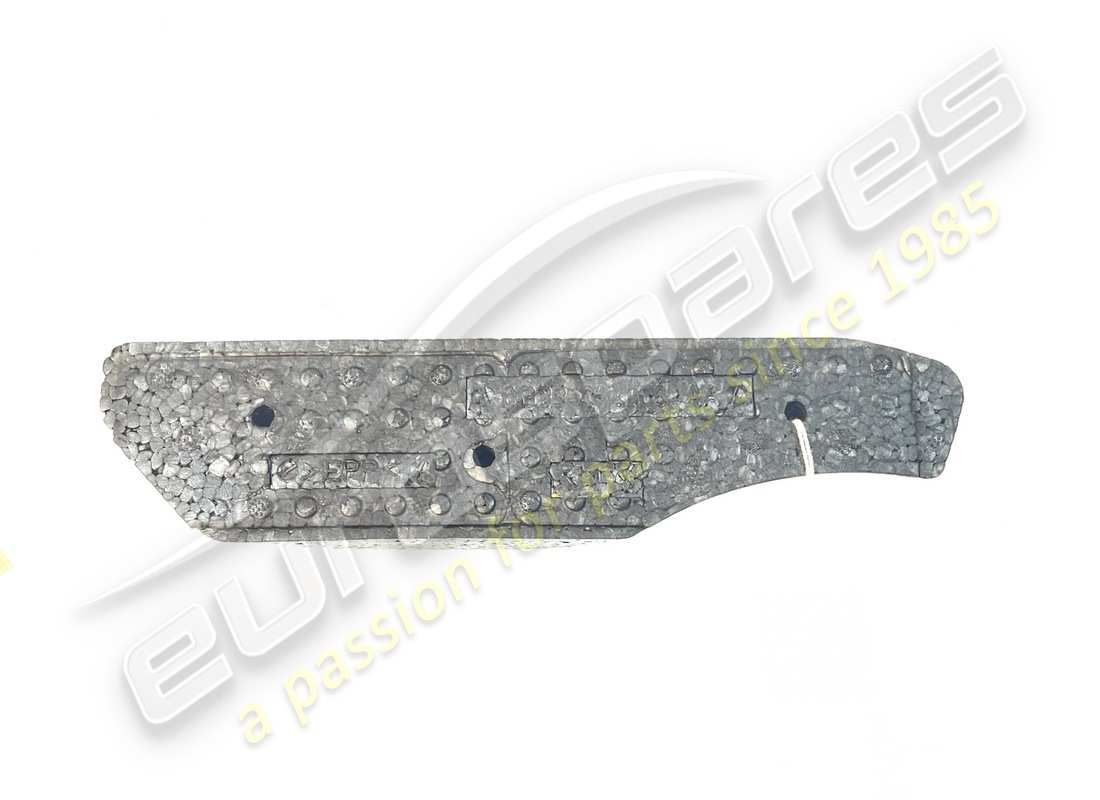

                                              FOAM FOOTREST RHD Genuine Aston Martin - New (to order)
                                              FOAM FOOTREST RHD Genuine Aston Martin - Used In stock
                                              # 11
                                              MPN: 6G33-12021-AA
                                              PAD ASSEMBLY, FOOTREST
                                              from £44.24
                                              from £44.24

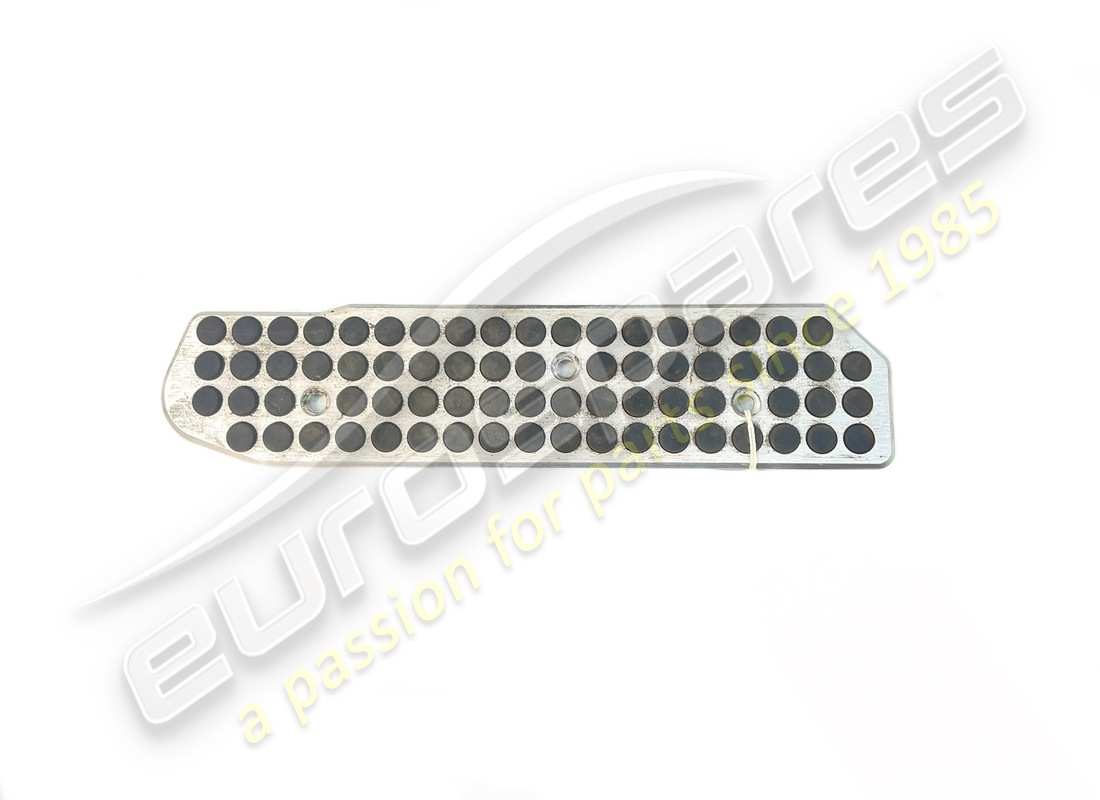

                                              RH F/R COVER PLATE Genuine Aston Martin - New (to order)
                                              RH F/R COVER PLATE Genuine Aston Martin - Used In stock
                                              # 12
                                              MPN: 6G33-E801202-AA
                                              SCREW, M5 X 45 COUNTERSUNK HEAD CAPSCREW
                                              from £0.47
                                              from £0.47
                                              M5X45 CSK ST SCREW Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: AG43-13242-AC
                                              SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED
                                              Polished Alloy
                                              from £246.92
                                              from £246.92
                                              SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: 8D33-13242-AD
                                              SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED
                                              Black
                                              SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: 6G33-SS106209-AA
                                              SCREW, M6 X 20 SOCKET LOW HEAD
                                              stainless steel
                                              SCREW, M6 X 20 SOCKET LOW HEAD Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: 8D33-68D11-AA
                                              SCREW, M6 X 20 SOCKET LOW HEAD
                                              Black
                                              from £0.47
                                              from £0.47
                                              M6X20 SKT LW HD BLT Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: 8D33-13255-AAW
                                              NAME PAD ASSEMBLY, SILL LH
                                              from £230.76
                                              from £230.76
                                              NAME PAD ASSEMBLY, SILL LH Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: 8D33-13254-AAW
                                              NAME PAD ASSEMBLY, SILL RH
                                              from £230.76
                                              from £230.76
                                              NAME PAD ASSEMBLY, SILL RH Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: 8D33-132A50-AA
                                              NAME PLATE, SILL SCUFF PLATE
                                              NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: AD33-132A51-AA
                                              NAME PLATE, SILL SCUFF PLATE
                                              Carbon Black Edition
                                              from £281.81
                                              from £281.81
                                              NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: CD33-132A50-AA
                                              NAME PLATE, SILL SCUFF PLATE
                                              Carbon Edition
                                              from £237.06
                                              from £237.06
                                              NM PLT FRONT SILL SCF Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: CG33-80-10635
                                              NAME PLATE, SILL SCUFF PLATE
                                              Dragon 88-English
                                              from £149.61
                                              from £149.61
                                              NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: CG33-80-10634
                                              NAME PLATE, SILL SCUFF PLATE
                                              Dragon 88 - Mandarin
                                              from £149.61
                                              from £149.61
                                              NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: CD33-80-10120
                                              NAME PLATE, SILL SCUFF PLATE
                                              DBS Ultimate
                                              from £796.93
                                              from £796.93
                                              NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: 697687
                                              SCREW, NO6 X 9.5 COUNTERSUNK HEAD
                                              from £0.47
                                              from £0.47
                                              SCREW NO6 X 9.5 CS B Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 4G43-M4D4515-AA
                                              FOAM, HANDBRAKE GAITER
                                              from £0.49
                                              from £0.49
                                              FOAM Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 4G43-833016-BBW
                                              HANDBRAKE GAITER ASSEMBLY
                                              HANDBRAKE GAITER ASSEMBLY Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 8D33-281B10-ABW
                                              KIT ASSEMBLY, SIDE CARPET RHD
                                              from £979.97
                                              from £979.97
                                              KIT ASSEMBLY, SIDE CARPET RHD Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 9D33-281B10-CAW
                                              KIT ASSEMBLY, SIDE CARPET, LIGHTWEIGHT
                                              9.5MY
                                              KIT ASSEMBLY, SIDE CARPET, LIGHTWEIGHT Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 9D33-281B10-DCW
                                              KIT ASSEMBLY, SIDE CARPET, HEAVYWEIGHT
                                              9.5MY
                                              from £1,138.74
                                              from £1,138.74
                                              KIT ASSEMBLY, SIDE CARPET, HEAVYWEIGHT Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: 9D33-311A76-CA
                                              SPEAKER GRILLE ASSEMBLY,FOOTWELL RH
                                              9.5MY
                                              from £435.45
                                              from £435.45
                                              FOOTWELL SPKR GRL RH Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: 9D33-311A76-DA
                                              SPEAKER GRILLE ASSEMBLY, FOOTWELL RH
                                              Carbon Edition, DBS Ultimate
                                              from £444.41
                                              from £444.41
                                              FOOTWELL SPKR GRL RH Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: 9D33-311A77-CA
                                              SPEAKER GRILLE ASSEMBLY, FOOTWELL LH
                                              9.5MY
                                              from £435.45
                                              from £435.45
                                              FOOTWELL SPKR GRL LH Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: 9D33-311A77-DA
                                              SPEAKER GRILLE ASSEMBLY, FOOTWELL LH
                                              Carbon Edition, DBS Ultimate
                                              from £444.41
                                              from £444.41
                                              FOOTWELL SPKR GRL LH Genuine Aston Martin - New (to order)
                                              # -
                                              MPN: 8D33-83-10022
                                              FLOOR CARPET KIT (CONTAINS ITEMS 24-28) PHANTOM GREY
                                              from £2,049.01
                                              from £2,049.01
                                              FLOOR CARPET KIT (CONTAINS ITEMS 24-28) PHANTOM GREY Genuine Aston Martin - New (to order)
                                              # -
                                              MPN: 8D33-83-10052
                                              FLOOR CARPET KIT (CONTAINS ITEMS 24-28) OBSIDIAN BLACK
                                              from £3,210.20
                                              from £3,210.20
                                              FLOOR CARPET KIT (CONTAINS ITEMS 24-28) OBSIDIAN BLACK Genuine Aston Martin - New (to order)
                                              # 24
                                              MPN: 8D33-130A12-AAW
                                              CARPET ASSEMBLY, FRONT FLOOR RH
                                              NSS - Please use Floor Carpet Kit
                                              CARPET ASSEMBLY, FRONT FLOOR RH Genuine Aston Martin - New (to order)
                                              # 25
                                              MPN: 8D33-130A10-AAW
                                              CARPET ASSEMBLY, FRONT FLOOR LH
                                              NSS - Please use Floor Carpet Kit
                                              CARPET ASSEMBLY, FRONT FLOOR LH Genuine Aston Martin - New (to order)
                                              # 26
                                              MPN: 8D33-130A36-ABW
                                              CARPET ASSEMBLY, REAR FLOOR RH
                                              NSS - Please use Floor Carpet Kit
                                              CARPET ASSEMBLY, REAR FLOOR RH Genuine Aston Martin - New (to order)
                                              # 27
                                              MPN: 8D33-130A37-ADW
                                              CARPET ASSEMBLY, REAR FLOOR LH
                                              NSS - Please use Floor Carpet Kit
                                              CARPET ASSEMBLY, REAR FLOOR LH Genuine Aston Martin - New (to order)
                                              # 28
                                              MPN: 8D33-10K973-ABW
                                              CARPET HEELBOARD ASSEMBLY, REAR LH
                                              from £115.52
                                              from £115.52
                                              CARPET HEELBOARD ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
                                              # 29
                                              MPN: 6G33-13925-AA
                                              PUSH-ON FIX, M5 X 35
                                              from £0.47
                                              from £0.47
                                              M5 X 35 PSH ON FIX Genuine Aston Martin - New (to order)
                                              # 30
                                              MPN: 702295
                                              NUT, FLG, M5
                                              from £0.47
                                              from £0.47
                                              NUT M5 HEX FLG Genuine Aston Martin - New (to order)
                                              # 31
                                              MPN: 4G43-STC3710-AA
                                              FASTENER, FIRTREE
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 4G43-STC3710-AA-PK
                                              FIR TREE 8MM Genuine Aston Martin - New (to order)
                                              # -
                                              MPN: 6G33-100N00-AA
                                              ADHESIVE TAPE, DOUBLE-SIDED
                                              from £8.69
                                              from £8.69
                                              ADHESIVE TAPE - DOUB Genuine Aston Martin - New (to order)
