aston martin dbs (2013) air con lines parts diagram

120305 - Air Con Lines

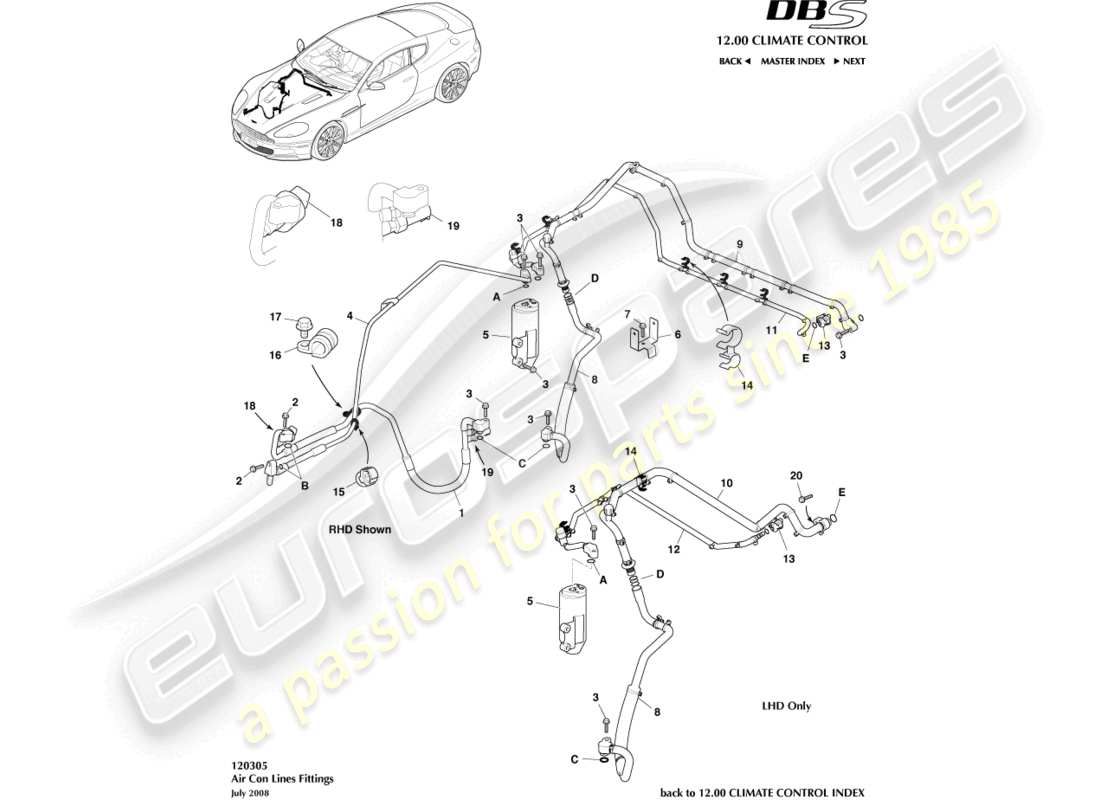

Aston Martin DBS (2013) Air Con Lines Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 7G43-19972-AA
                                          TUBE ASSY, A/C COMPRESSOR TO CONDENSER
                                          TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 703201
                                          SCREW, M8X30
                                          from £0.47
                                          from £0.47
                                          SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 703199
                                          BOLT, M6X30
                                          from £0.47
                                          from £0.47
                                          BOLT M6X30 HEX FLG Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: 4G43-19D719-AF
                                          TUBE ASSY, CONDENSER TO RECEIVER DRIER
                                          Genuine Aston Martin (no longer available to order)
                                          TUBE ASSEMBLY CONDENDSER TO R/DRIER Genuine Aston Martin - Used In stock
                                          # 6
                                          MPN: 4G43-6147X-AD
                                          BRACKET ASSY
                                          from £23.64
                                          from £23.64
                                          BRKT-A/C /ELEC Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: 703151
                                          SCREW, M6X16
                                          from £0.47
                                          from £0.47
                                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                          LOWER MESH BOLTS (703151) Genuine Ferrari Part - New (to order)
                                          # 8
                                          MPN: AG43-19A705-AA
                                          TUBE ASSY, EVAPORATOR OUTLET, LOWER
                                          from £194.43
                                          from £194.43
                                          TUB ASY A/C EVP OLET Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: 8G43-19A705-CA
                                          TUBE ASSY, A/C EVAPORATOR OUTLET, UPPER
                                          RHD
                                          TUBE, ASSEMBLY A/C EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 8G43-19A705-BA
                                          TUBE ASSY, A/C EVAPORATOR OUTLET, UPPER
                                          LHD
                                          from £90.08
                                          from £90.08
                                          TUBE ASSEMBLY, A/C EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 8G43-19835-CA
                                          TUBE ASSY, RECEIVER DRIER TO EVAPORATOR
                                          RHD
                                          TUBE, R/DRIER TO EVAP Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 8G43-19835-BA
                                          TUBE ASSY, RECIEVER DRIER TO EVAPORATOR
                                          LHD
                                          TUBE, R/DRIER TO EVAP Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 4G43-4073A-AA
                                          CLAMP
                                          from £3.00
                                          from £3.00
                                          CLAMP Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 701182
                                          CLIP, PIPE SWIVEL
                                          from £1.16
                                          from £1.16
                                          CLIP-SWIVEL Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: 701180
                                          CLIP, 14 OPEN PUSH IN
                                          from £0.81
                                          from £0.81
                                          CLIP 14.0X4.0 PUSHIN Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 699634
                                          CLIP,13MM
                                          from £1.27
                                          from £1.27
                                          P-CLIP 13X15XM6 Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: 703203
                                          SCREW, FLG, M6 X 20
                                          from £0.47
                                          from £0.47
                                          SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                          LOWER RAD SUPPORT BOLT (703203) Genuine Ferrari Part - New (to order)
                                          # 18
                                          MPN: 1R12-89-10192
                                          SWITCH ASSY, A/C HIGH PRESSURE
                                          from £177.31
                                          from £177.31
                                          A/C SWITCH-HIGH PRES Genuine Aston Martin - New (to order)
                                          A/C SWITCH-HIGH PRES Genuine Aston Martin - Used In stock
                                          # 19
                                          MPN: 6F93-19D594-AA
                                          SWITCH ASSY, A/C PRESSURE CUTOFF
                                          Genuine Aston Martin (no longer available to order)
                                          SWITCH, AC, PRESSURE CUTOFF Genuine Aston Martin - Used In stock
                                          # 20
                                          MPN: 703025
                                          SCREW M6 X 25 HEX FLG HD
                                          LHD only
                                          from £0.47
                                          from £0.47
                                          SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                          # A
                                          MPN: 4G43-89-10908-PK
                                          O RING KIT
                                          from £3.36
                                          from £3.36
                                          O RINGS-RECEIVER(2) Genuine Aston Martin - New In stock
                                          # B
                                          MPN: 4G43-89-10910-PK
                                          O RING KIT
                                          from £3.43
                                          from £3.43
                                          O RINGS-CONDENSER (pack of 2) Genuine Aston Martin - New In stock
                                          # C
                                          MPN: 4G43-89-10909-PK
                                          O RING KIT
                                          from £3.43
                                          from £3.43
                                          O RINGS-COMPRESSOR-2 Genuine Aston Martin - New In stock
                                          # D
                                          MPN: 4G43-89-10911-PK
                                          O RING KIT
                                          from £8.43
                                          from £8.43
                                          O RINGS-EVAPORATOR-3 Genuine Aston Martin - New (to order)
                                          # E
                                          MPN: 6G43-89-10446-PK
                                          O RING KIT
                                          from £5.50
                                          from £5.50
                                          O RING KIT, FOR THE EVAPORATOR Genuine Aston Martin - New (to order)
