aston martin dbs (2013) vacuum distribution parts diagram

160000-C1 - Vacuum Distribution

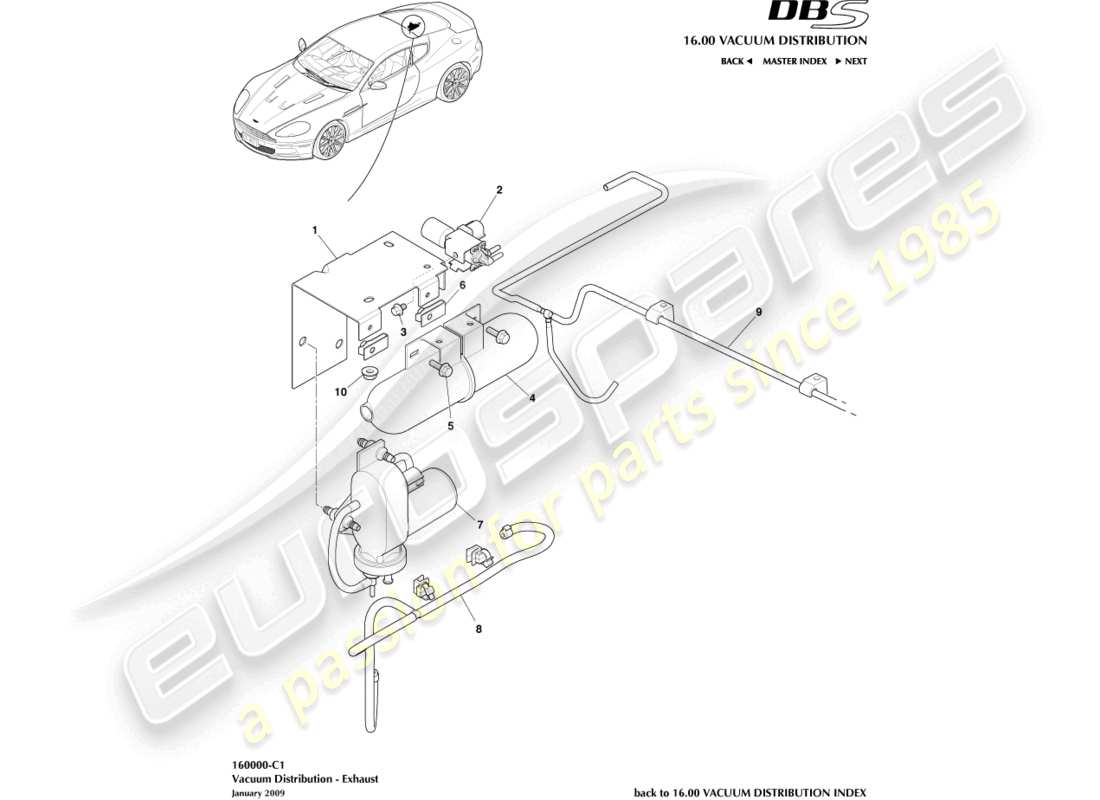

Aston Martin DBS (2013) Vacuum Distribution Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 4G43-2C529-AJ
                      BRACKET, VAC PUMP MOUNTING
                      from £28.46
                      from £28.46
                      BRK VAC PMP MTNG Genuine Aston Martin - New (to order)
                      BRK VAC PMP MTNG Genuine Aston Martin - Used In stock
                      # 2
                      MPN: 6G43-16-10010
                      SHIFT TRANS RETRO CONTROL PDL ROD
                      from £48.62
                      from £48.62
                      SHIFT TRANS RETRO CONTROL PDL ROD Genuine Aston Martin - New (to order)
                      SHIFT TRANS RETRO CONTROL PDL ROD Genuine Aston Martin - Used In stock
                      # 3
                      MPN: 703206
                      SCREW, M5 X 8
                      from £0.94
                      from £0.94
                      SCREW-M5 X 8 HEX FLG Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 89-84150
                      TANK, AC, VAC RESERVOIR
                      from £52.54
                      from £52.54
                      VACUUM TANK Genuine Aston Martin - New (to order)
                      VACUUM TANK Genuine Aston Martin - Used In stock
                      # 5
                      MPN: 700265
                      SCREW, M6 X 16
                      from £50.97
                      from £50.97
                      BINDER-40ML VANQ BLK Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 701245
                      NUT, M6
                      from £0.47
                      from £0.47
                      NUT M6 0.8-4.0 U TYP Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 6G43-16-10034
                      PUMP ASSY, VACUUM
                      from £65.08
                      from £65.08
                      This part replaces part number 4C34-2A451-BA - and 2 more. Click to view details
                      PUMP ASSEMBLY, VACUUM Genuine Aston Martin - New (to order)
                      PUMP ASSEMBLY, VACUUM Genuine Aston Martin - Used In stock
                      # 8
                      MPN: 4G43-9E488-CA
                      TUBE ASSY, EXHAUST CONTROL VALVE
                      from £11.89
                      from £11.89
                      TUB ASSEMBLY EXH CONT Genuine Aston Martin - New (to order)
                      TUB ASSEMBLY EXH CONT Genuine Aston Martin - Used In stock
                      # 9
                      MPN: 4G43-9E488-AF
                      TUBE ASSY, EXHAUST BYPASS
                      from £20.95
                      from £20.95
                      VACUUM LINE, EXHAUST BYPASS Genuine Aston Martin - New (to order)
                      VACUUM LINE, EXHAUST BYPASS Genuine Aston Martin - Used In stock
                      # 10
                      MPN: 703206
                      NUT AND WASHER, M6
                      from £0.94
                      from £0.94
                      SCREW-M5 X 8 HEX FLG Genuine Aston Martin - New (to order)
