aston martin dbs (2013) navigation, to 12my parts diagram

190701-D1 - Navigation, to 12MY

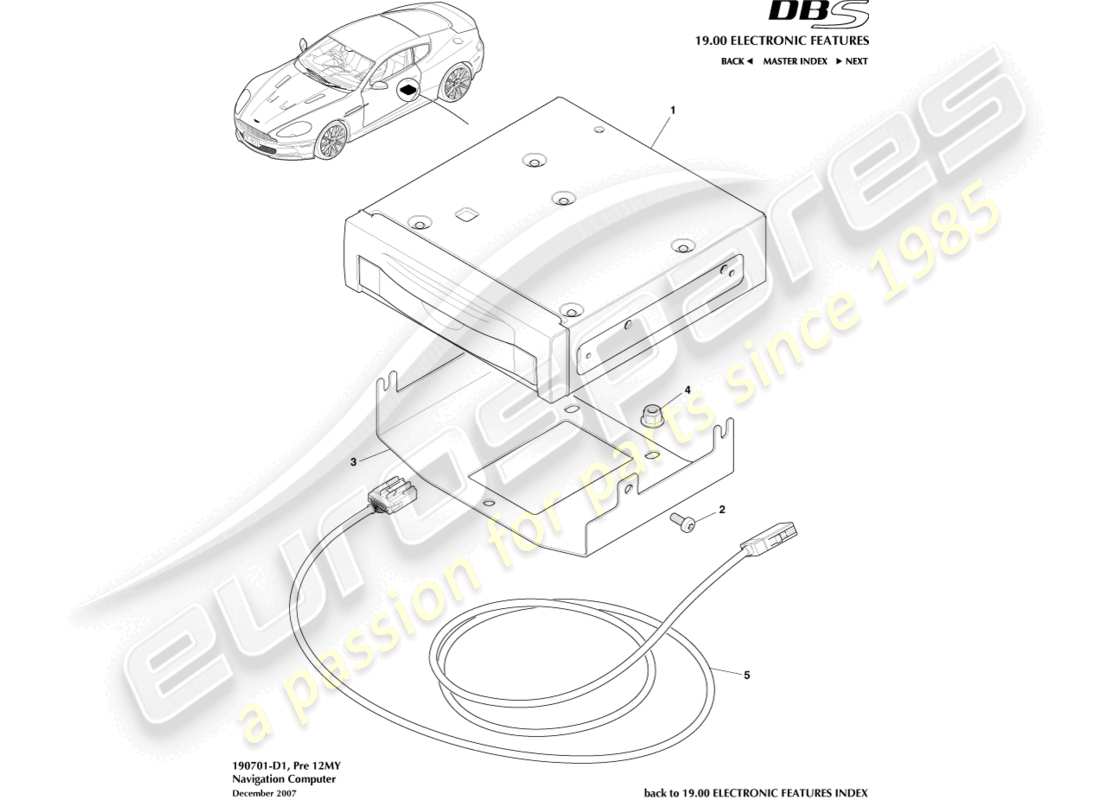

Aston Martin DBS (2013) Navigation, to 12MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 9G43-10E887-BD
        MODULE, NAVIGATION MMM
        EU
        MODULE, NAVIGATION MMM+ Genuine Aston Martin - New (to order)
        # 1
        MPN: 9G43-10E887-CC
        MODULE, NAVIGATION MMM
        US
        MODULE, NAVIGATION MMM+ Genuine Aston Martin - New (to order)
        # 1
        MPN: 9G43-10E887-DA
        MODULE, NAVIGATION MMM
        RoW
        MODULE, NAVIGATION MMM+ Genuine Aston Martin - New (to order)
        # -
        MPN: 9G43-37-10996
        DISC NAVIGATION, MMM+ UPDATE, EUROPE
        09MY
        from £679.78
        from £679.78
        DISC, NAVIGATION, EUROPE Genuine Aston Martin - New (to order)
        # -
        MPN: 9G43-37-10997
        DISC NAVIGATION, MMM+ UPDATE, N.AMERICA
        09MY
        from £760.29
        from £760.29
        NAV DISC-MMM+ N/AMER Genuine Aston Martin - New (to order)
        # 2
        MPN: 702084
        SCREW, M5 X 12 PAN HEAD
        from £0.47
        from £0.47
        SCREW M5X12 Genuine Aston Martin - New (to order)
        # 3
        MPN: 8G43-10E887-AA
        BRACKET, MMM
        from £21.48
        from £21.48
        BRACKET, MMM+ Genuine Aston Martin - New (to order)
        # 4
        MPN: 703164
        NUT, LOCK, M6
        from £0.47
        from £0.47
        M6 LOCKNUT FLG NYL Genuine Aston Martin - New (to order)
        # 5
        MPN: 9G43-37-11110
        CABIN HIROSE LINK HARNESS
        Service/repair harness
        from £117.24
        from £117.24
        HARNESS-CABIN HIROSE Genuine Aston Martin - New (to order)
