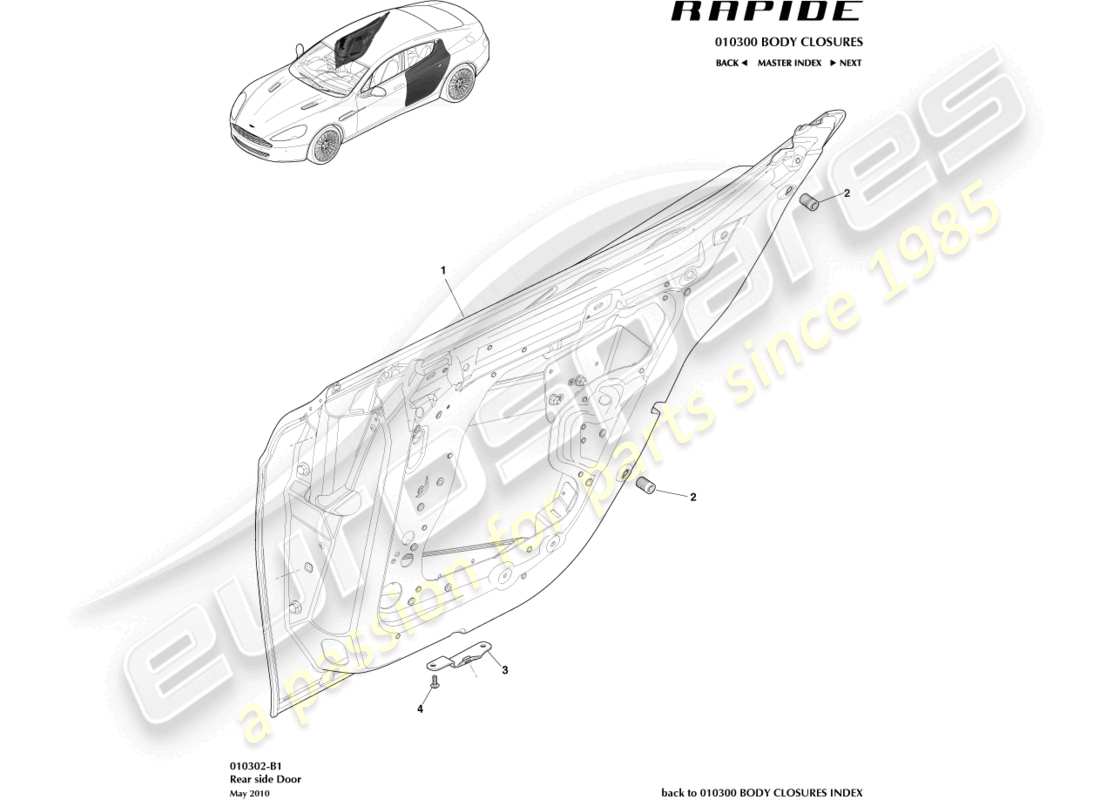

010302-B1 - Rear Door Assembly

Aston Martin Rapide (2010) Rear Door Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: AD43-66-10128
      DOOR ASSY REAR, RH
      from £2,951.69
      from £2,951.69
      DOOR ASSEMBLY REAR, RH Genuine Aston Martin - New (to order)
      # 1
      MPN: AD43-66-10127
      DOOR ASSY REAR, LH
      from £2,951.69
      from £2,951.69
      DOOR ASSEMBLY REAR, LH Genuine Aston Martin - New (to order)
      # 2
      MPN: AD43-F5467906-AA
      BUMPSTOP, ADJUSTABLE
      2 per door
      from £2.04
      from £2.04
      BUMPSTOP, ADJUSTABLE Genuine Aston Martin - New (to order)
      # 3
      MPN: AD43-F29A00-AA
      BRACKET, PRIMARY GAS STRUT BRACKET, RH
      from £7.86
      from £7.86
      BRACKET, PRIMARY GAS STRUT BRACKET, RH Genuine Aston Martin - New (to order)
      # 3
      MPN: AD43-F29A01-AA
      BRACKET, PRIMARY GAS STRUT BRACKET, LH
      from £7.86
      from £7.86
      BRACKET, PRIMARY GAS STRUT BRACKET, LH Genuine Aston Martin - New (to order)
      # 4
      MPN: 703746
      SCREW, M6X16
      2 per brkt
      from £0.47
      from £0.47
      SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
      # 4
      MPN: AD43-FCZU00001-AA
      BUMPSTOP, FIXED DOOR (ON BODY)
      Shown On Page 010104-B1
      from £1.82
      from £1.82
      BUMPSTOP, FIXED DOOR (ON BODY) Genuine Aston Martin - New (to order)
