aston martin rapide (2010) front bumper parts diagram

011901 - FRONT BUMPER

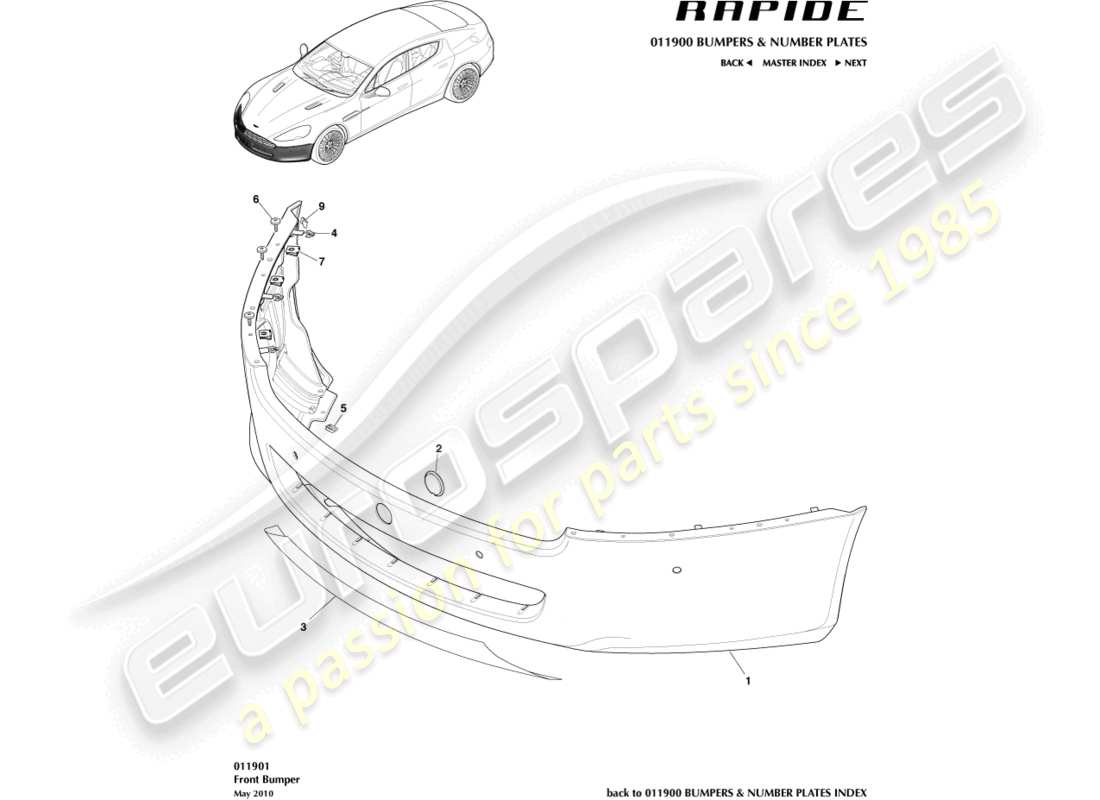

Aston Martin Rapide (2010) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: AD43-17D957-AB
                COVER ASSY, FRONT BUMPER
                ROW, PDC
                COVER ASSEMBLY, FRONT BUMPER Genuine Aston Martin - New (to order)
                # 1
                MPN: AD43-17D957-BB
                COVER ASSY, FRONT BUMPER
                FED, PDC
                COVER ASSEMBLY, FRONT BUMPER Genuine Aston Martin - New (to order)
                # 1
                MPN: AD43-17D957-EB
                COVER ASSY, FRONT BUMPER
                ROW, non PDC
                from £1,452.26
                from £1,452.26
                COVER ASSEMBLY, FRONT BUMPER Genuine Aston Martin - New (to order)
                # 1
                MPN: AD43-17D957-FB
                COVER ASSY, FRONT BUMPER
                FED, non PDC
                from £1,452.26
                from £1,452.26
                COVER ASSEMBLY, FRONT BUMPER Genuine Aston Martin - New (to order)
                # 2
                MPN: 4G43-17C832-BA
                CAP ASSY, FRONT BUMPER TOWING EYE
                from £31.84
                from £31.84
                COVER FRONT BUMPER CP FRT Genuine Aston Martin - New (to order)
                # 3
                MPN: 8D33-10628-AC
                TAPE, FRONT BUMPER LOWER CENTRE
                from £33.38
                from £33.38
                TAPE, FRONT BUMPER LOWER CENTRE Genuine Aston Martin - New (to order)
                # 4
                MPN: 702511-PK
                NUT, 4.8X70-30 U TYPE
                from £3.95
                from £3.95
                NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
                # 5
                MPN: 4G43-8191-AA-PK
                CLIP, BUMPER RADIATOR
                from £3.02
                from £3.02
                CLIP-BUMPER GRL(10) Genuine Aston Martin - New (to order)
                LOWER MESH CLIPS (4G43-8191-AA-PK) Genuine Ferrari Part - New (to order)
                # 6
                MPN: 6G33-FA0115-AB-PK
                SCREW AND WASHER M6X19 PAN HD
                from £7.26
                from £7.26
                SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                FRONT UNDERTRAY SCREW (6G33-FA0115-AB-PK) Genuine Ferrari Part - New (to order)
                # 7

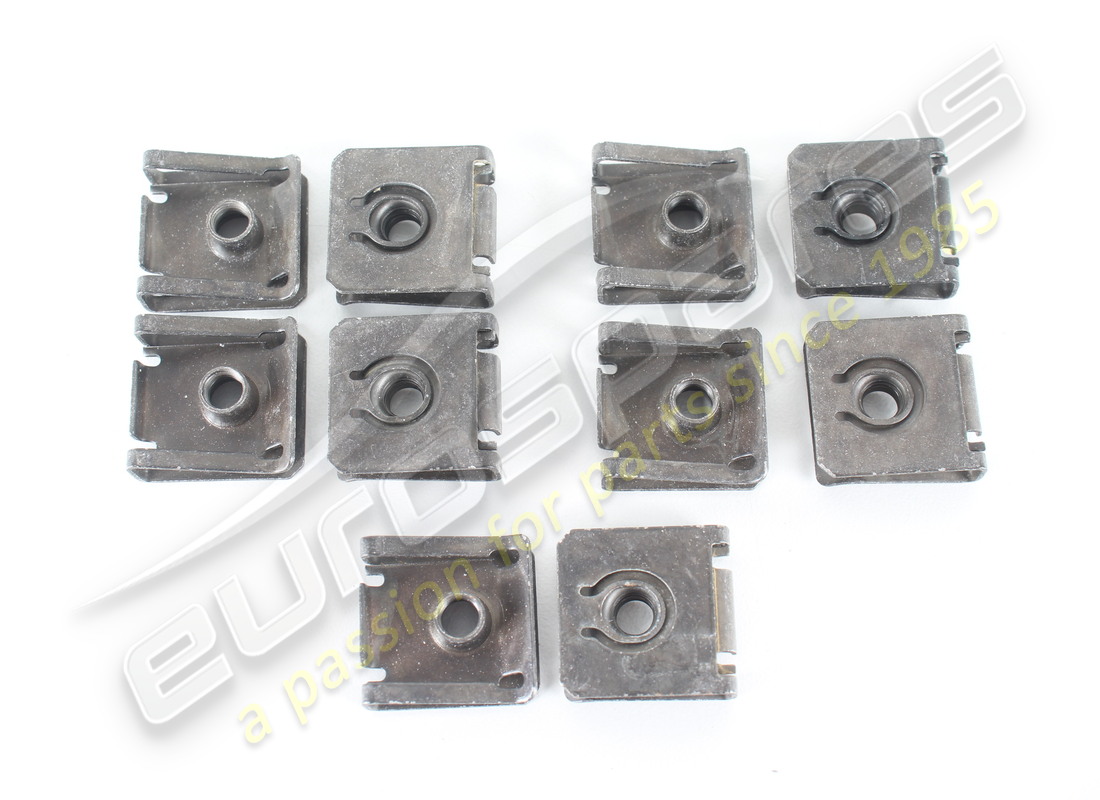

                MPN: 7G43-10609E-AA-PK
                NUT, M6 U TYPE
                from £5.08
                from £5.08
                CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                FRONT UNDERTRAY CLIP (7G43-10609E-AA-PK) Genuine Ferrari Part - New (to order)
                # 8
                MPN: 702520-PK
                CLIP
                from £2.42
                from £2.42
                CLIP 8.5X16X1.7 (20) Genuine Aston Martin - New (to order)
                FRONT BUMPER CLIP (SMALL) (702520-PK) Genuine Ferrari Part - New (to order)
