040100-C1 - Front Suspension Assembly

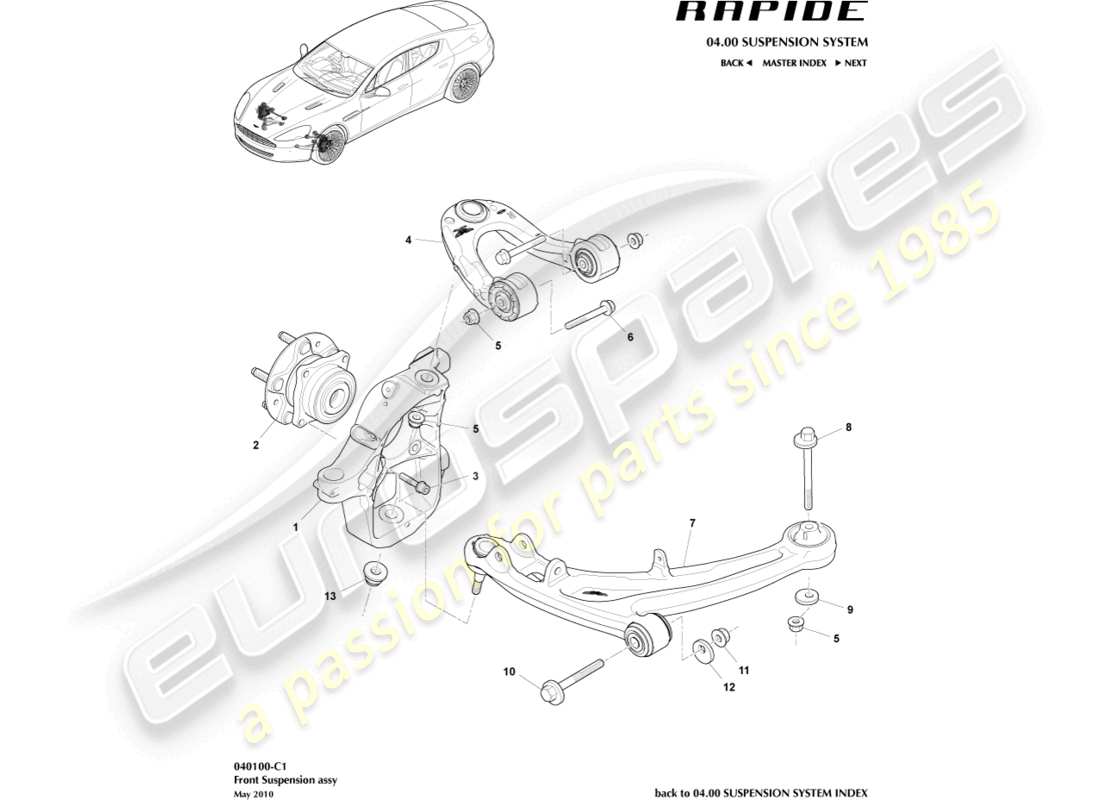

Aston Martin Rapide (2010) Front Suspension Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: AD43-3K186-AB
                      KNUCKLE FRONT, RH
                      Up to 15MY
                      KNUCKLE FRONT, RH Genuine Aston Martin - New (to order)
                      # 1
                      MPN: FD43-3K186-AA
                      KNUCKLE FRONT, RH
                      FROM 15MY
                      from £299.02
                      from £299.02
                      KNUCKLE FRONT, RH Genuine Aston Martin - New (to order)
                      # 1
                      MPN: AY93-3K186-AB
                      KNUCKLE FRONT, RH
                      AMR
                      from £316.44
                      from £316.44
                      KNUCKLE FRONT, RH Genuine Aston Martin - New (to order)
                      # 1
                      MPN: AD43-3K185-AB
                      KNUCKLE FRONT, LH
                      Up to 15MY
                      KNUCKLE FRONT, LH Genuine Aston Martin - New (to order)
                      # 1
                      MPN: FD43-3K185-AA
                      KNUCKLE FRONT, LH
                      FROM 15MY
                      from £299.02
                      from £299.02
                      KNUCKLE FRONT, LH Genuine Aston Martin - New (to order)
                      # 1
                      MPN: AY93-3K185-AB
                      KNUCKLE FRONT, LH
                      AMR
                      from £316.44
                      from £316.44
                      KNUCKLE FRONT, LH Genuine Aston Martin - New (to order)
                      # 2
                      MPN: AD43-2B663-AA
                      HUB AND BEARING ASSY
                      from £515.54
                      from £515.54
                      HB & BRG ASY FRONT BRK Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 4G43-0783-AA-PK
                      SCREW WITH WASHER
                      Bearing to Knuckle
                      from £15.41
                      from £15.41
                      BOLT M10X55 (5) Genuine Aston Martin - New (to order)
                      # 4
                      MPN: AD43-3084-AA
                      ARM AND BUSH ASSY, FRONT UPPER, RH
                      from £398.48
                      from £398.48
                      ARM AND BUSH ASSEMBLY, FRONT UPPER, RH Genuine Aston Martin - New (to order)
                      # 4
                      MPN: DD43-3084-AB
                      ARM AND BUSH ASSY, FRONT UPPER, RH
                      Rapide S
                      from £362.46
                      from £362.46
                      ARM ASSEMBLY, UPPER, FRONT SUSPENSION, RH Genuine Aston Martin - New (to order)
                      # 4
                      MPN: AD43-3091-AA
                      ARM AND BUSH ASSY, FRONT UPPER, LH
                      from £398.48
                      from £398.48
                      ARM AND BUSH ASSEMBLY, FRONT UPPER, LH Genuine Aston Martin - New (to order)
                      # 4
                      MPN: DD43-3091-AB
                      ARM AND BUSH ASSY, FRONT UPPER, LH
                      Rapide S
                      from £353.62
                      from £353.62
                      ARM ASSEMBLY, UPPER, FRONT SUSPENSION, LH Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 703565
                      NUT, FLG, M12
                      from £0.77
                      from £0.77
                      This part replaces part number 699876
                      NUT-M12 HEX FLG PLAS Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 703180
                      BOLT, FLG, M12 X 87
                      BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                      # 7
                      MPN: AD43-3A052-AA
                      ARM ASSY, LOWER FRONT SUSPENSION, RH
                      from £837.80
                      from £837.80
                      ARM ASSEMBLY, LOWER FRONT SUSPENSION, RH Genuine Aston Martin - New (to order)
                      # 7
                      MPN: AD43-3A053-AA
                      ARM ASSY, LOWER FRONT SUSPENSION, LH
                      from £837.80
                      from £837.80
                      ARM ASSEMBLY, LOWER FRONT SUSPENSION, LH Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 4G43-3B236-BB
                      BOLT, M12, ECCENTRIC
                      from £39.31
                      from £39.31
                      CAM & BOLT ASSEMBLY FRONT Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 4G43-3B237-BB
                      WASHER, M12, ECCENTRIC
                      from £6.75
                      from £6.75
                      WASHER M12 ECCENTRIC Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 4G43-3B236-CB
                      BOLT,, M14, ECCENTRIC
                      from £16.51
                      from £16.51
                      CAM BOLT M14 Genuine Aston Martin - New In stock
                      # 11
                      MPN: 701337-PK
                      NUT M14, HEX FLG
                      from £11.29
                      from £11.29
                      NUT, M14, NYLOC Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 4G43-3B237-CA
                      WASHER, M14 ECCENTRIC
                      from £6.53
                      from £6.53
                      CAM WASHER - FRONT LCA Genuine Aston Martin - New In stock
                      # 13
                      MPN: AD43-0907-AA
                      NUT AND WASHER, M12
                      from £13.63
                      from £13.63
                      NUT AND WASHER, M14, HEX FLANGE HD Genuine Aston Martin - New (to order)
