aston martin rapide (2010) rear brake system parts diagram

060400-C1 - Rear Brake System

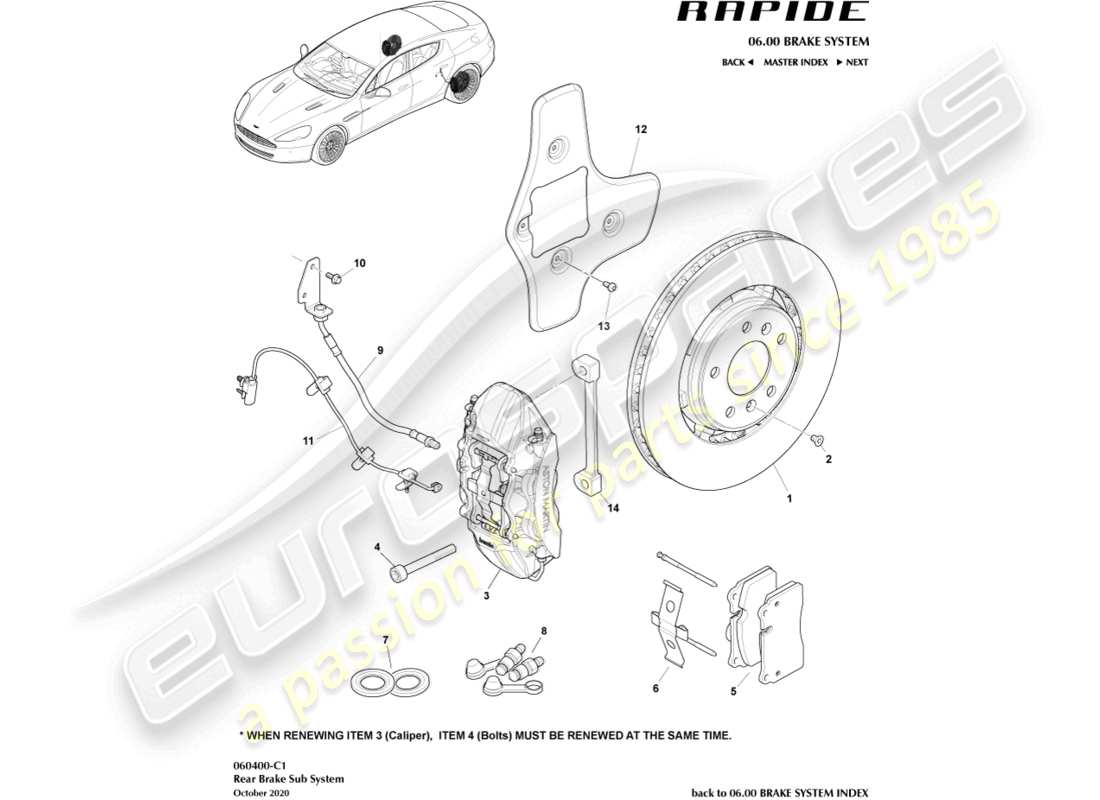

Aston Martin Rapide (2010) Rear Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: AD43-2C026-AA
              DISC, BRAKE
              Up To VIN F02200, Plain Disc
              DISC, BRAKE Genuine Aston Martin - New (to order)
              # 1
              MPN: AD43-2C026-AB
              DISC, BRAKE
              From VIN F02201, Grooved Disc
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 1
              MPN: AY93-2C026-AA
              DISC, BRAKE
              AMR
              from £4,836.09
              from £4,836.09
              DISC, BRAKE Genuine Aston Martin - New (to order)
              # 2
              MPN: 4G43-2N389-AA
              SCREW, RETAINING BRAKE DISC
              from £0.47
              from £0.47
              SCREW M8X14 FLAT CSK Genuine Aston Martin - New In stock
              # 3
              MPN: AD43-2C465-AA
              CALIPER, LESS PADS, LH
              Up to 15MY. Grey
              from £396.12
              from £396.12
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C464-AA
              CALIPER, LESS PADS, RH
              Up to 15MY. Grey
              from £396.12
              from £396.12
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C465-CA
              CALIPER, LESS PADS, LH
              Up to 15MY. Black
              from £370.82
              from £370.82
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C464-CA
              CALIPER, LESS PADS, RH
              Up to 15MY. Black
              from £370.82
              from £370.82
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C465-DA
              CALIPER, LESS PADS, LH
              Up to 15MY. Red
              from £396.12
              from £396.12
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C464-DA
              CALIPER, LESS PADS, RH
              Up to 15MY. Red
              from £396.12
              from £396.12
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C465-EA
              CALIPER, LESS PADS, LH
              Up to 15MY. Silver
              from £396.12
              from £396.12
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C464-EA
              CALIPER, LESS PADS, RH
              Up to 15MY. Silver
              from £396.12
              from £396.12
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C465-FA
              CALIPER, LESS PADS, LH
              Up to 15MY. Yellow
              from £421.42
              from £421.42
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C464-FA
              CALIPER, LESS PADS, RH
              Up to 15MY. Yellow
              from £421.42
              from £421.42
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C465-JA
              CALIPER, LESS PADS, LH
              Up to 15MY. Black Anodised
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2C464-JA
              CALIPER, LESS PADS, RH
              Up to 15MY. Black Anodised
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C465-AA
              CALIPER, LESS PADS, LH
              From 15MY. Grey
              from £566.17
              from £566.17
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C464-AA
              CALIPER, LESS PADS, RH
              From 15MY. Grey
              from £566.17
              from £566.17
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C465-CA
              CALIPER, LESS PADS, LH
              From 15MY. Black
              from £529.19
              from £529.19
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C464-CA
              CALIPER, LESS PADS, RH
              From 15MY. Black
              from £529.19
              from £529.19
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C465-DA
              CALIPER, LESS PADS, LH
              From 15MY. Red
              from £566.17
              from £566.17
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C464-DA
              CALIPER, LESS PADS, RH
              From 15MY. Red
              from £566.17
              from £566.17
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C465-EA
              CALIPER, LESS PADS, LH
              From 15MY. Silver
              from £566.17
              from £566.17
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C464-EA
              CALIPER, LESS PADS, RH
              From 15MY. Silver
              from £566.17
              from £566.17
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C465-FA
              CALIPER, LESS PADS, LH
              From 15MY. Yellow
              from £566.17
              from £566.17
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C464-FA
              CALIPER, LESS PADS, RH
              From 15MY. Yellow
              from £566.17
              from £566.17
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C465-JA
              CALIPER, LESS PADS, LH
              From 15MY. Black Anodised
              from £566.17
              from £566.17
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: FD43-2C464-JA
              CALIPER, LESS PADS, RH
              From 15MY. Black Anodised
              from £566.17
              from £566.17
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD23-2C465-JA
              CALIPER, LESS PADS, LH
              AMR. Black Anodised
              from £686.92
              from £686.92
              CAL ASSEMBLY REAR LH ANOD Genuine Aston Martin - New (to order)
              # 3
              MPN: AD23-2C464-JA
              CALIPER, LESS PADS, RH
              AMR. Black Anodised
              from £686.92
              from £686.92
              CAL ASSEMBLY REAR RH ANOD Genuine Aston Martin - New (to order)
              # 3
              MPN: AD23-2C465-CB
              CALIPER, LESS PADS, LH
              AMR. Black
              from £657.40
              from £657.40
              CAL ASSEMBLY REAR LH BLK Genuine Aston Martin - New (to order)
              # 3
              MPN: AD23-2C464-CB
              CALIPER, LESS PADS, RH
              AMR. Black
              from £657.40
              from £657.40
              CAL ASSEMBLY REAR RH BLK Genuine Aston Martin - New (to order)
              # 3
              MPN: AD23-2C465-NA
              CALIPER, LESS PADS, LH
              AMR. Lime
              from £686.84
              from £686.84
              CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD23-2C464-NA
              CALIPER, LESS PADS, RH
              AMR. Lime
              from £686.84
              from £686.84
              CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 4
              MPN: 8D33-2C564-AA
              BOLT, REAR CALIPER
              Always Replace, Do Not Re-use
              from £6.44
              from £6.44
              BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
              # 5
              MPN: AD43-2C562-AA
              KIT, BRAKE PADS, AXLE SET
              RoW
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 5
              MPN: AD43-2C562-AB
              KIT, BRAKE PADS, AXLE SET, CCC
              CHINA
              from £456.26
              from £456.26
              This part replaces part number AD43-2C562-AA
              KIT, BRAKE PADS,REAR CCC Genuine Aston Martin - New (to order)
              # 5
              MPN: 8D33-2C562-BA
              KIT, BRAKE PADS, AXLE SET
              AMR
              from £632.22
              from £632.22
              KIT, BRAKE PADS, AXLE SET Genuine Aston Martin - New (to order)
              # 6
              MPN: AD43-2C588-BA
              KIT, PAD SPRING AND PIN
              per caliper
              from £36.66
              from £36.66
              KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
              # 6
              MPN: 8D33-2C588-BA
              KIT, PAD SPRING AND PIN
              AMR, Per Caliper
              from £48.46
              from £48.46
              KIT PAD SPR & PIN REAR Genuine Aston Martin - New (to order)
              # 7
              MPN: AD43-32610-AA
              KIT, DUST BOOT
              Up to 15MY. Per Caliper
              from £52.20
              from £52.20
              KIT, DUST BOOT Genuine Aston Martin - New (to order)
              # 7
              MPN: FD43-32610-AA
              KIT, DUST BOOT
              From 15MY. Per Caliper
              KIT, DUST BOOT Genuine Aston Martin - New (to order)
              # 7
              MPN: AD23-2C465-BB
              KIT, DUST BOOT
              AMR
              from £416.79
              from £416.79
              KIT HANDBRAKE Genuine Aston Martin - New (to order)
              # 8
              MPN: 4G43-2C563-AA
              KIT, BLEED SCREW
              per caliper
              from £10.04
              from £10.04
              KIT, BLEED SCREW Genuine Aston Martin - New (to order)
              # 8
              MPN: 4G43-33693-AA
              CAP, BLEED SCREW
              per caliper
              from £16.49
              from £16.49
              CAP, BLEED SCREW Genuine Aston Martin - New (to order)
              # 9
              MPN: AD43-2282-AA
              HOSE ASSY, FLEXIBLE, LH
              HOSE ASSEMBLY, FLEXIBLE, LH Genuine Aston Martin - New (to order)
              # 9
              MPN: AD43-2282-BA
              HOSE ASSY, FLEXIBLE, RH
              HOSE ASSEMBLY, FLEXIBLE, RH Genuine Aston Martin - New (to order)
              # 10
              MPN: 703265
              SCREW, M6X16, HEX FLG HD
              from £0.47
              from £0.47
              SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
              # 11
              MPN: 6G33-2D009-AB
              WEAR LEAD, BRAKE PAD
              from £20.06
              from £20.06
              PAD WEAR LEAD REAR Genuine Aston Martin - New In stock
              PAD WEAR LEAD REAR Genuine Aston Martin - Used In stock
              # 12
              MPN: 8D33-2C029-AA
              SHIELD, DISC, LH
              from £19.26
              from £19.26
              SHLD- REAR WHEEL DSC BRK Genuine Aston Martin - New (to order)
              SHLD- REAR WHEEL DSC BRK Genuine Aston Martin - Used In stock
              # 12
              MPN: 8D33-2C028-AA
              SHIELD, DISC, RH
              from £35.01
              from £35.01
              SHLD-RR WHEEL DSC BRK Genuine Aston Martin - New (to order)
              # 13
              MPN: 4G43-13D026-AA
              SCREW, RETAINING SHIELD
              from £0.47
              from £0.47
              SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
              # 14
              MPN: 4G43-13D026-AA
              SPACER, CALIPER
              AMR only
              from £0.47
              from £0.47
              SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
