aston martin rapide (2010) exhaust system parts diagram

090000-S1 - Exhaust System

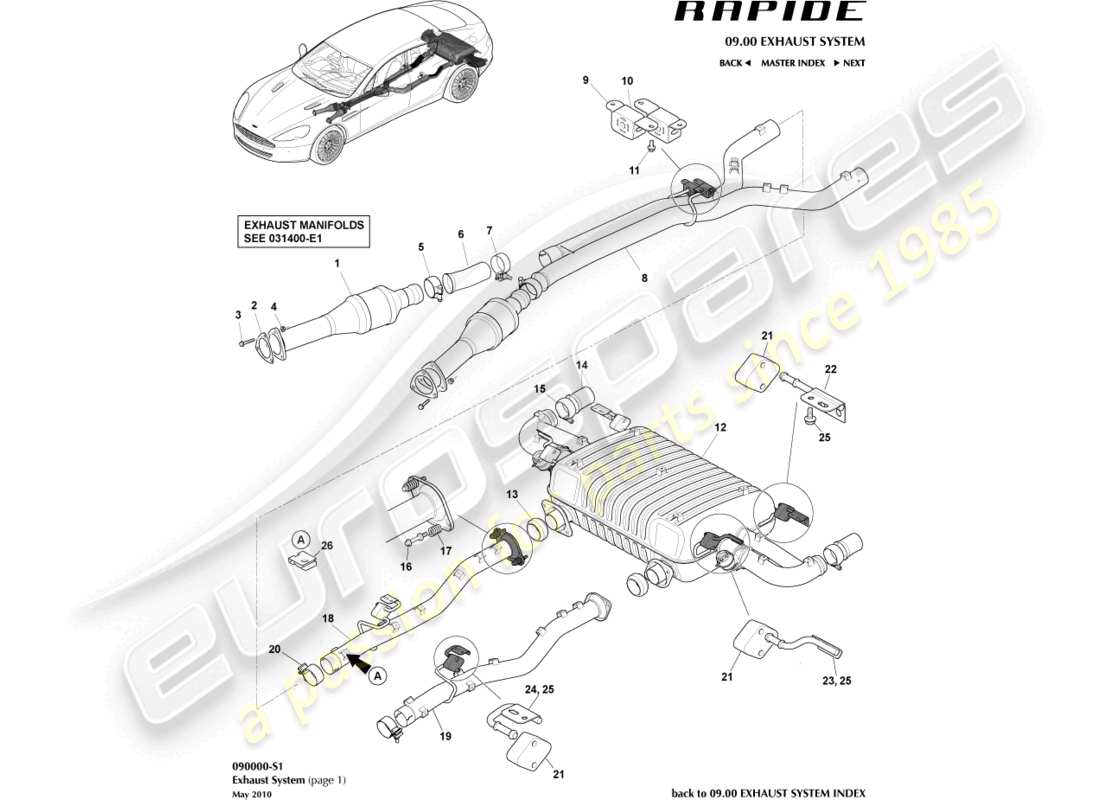

Aston Martin Rapide (2010) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 8G43-5E211-AD
                          CATALYST AND PIPE ASSEMBLY
                          from £647.60
                          from £647.60
                          CAT & PIPE ASSY Genuine Aston Martin - New (to order)
                          # 1
                          MPN: KD43-5E211-AA
                          CATALYST AND PIPE ASSEMBLY
                          19MY AMR
                          from £3,948.32
                          from £3,948.32
                          CATALYST AND PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-5E281-AA-PK
                          GASKET
                          Pack of 2
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 3
                          MPN: 702698
                          BOLT, FLG, M8X45
                          from £9.20
                          from £9.20
                          BOLT-M8X45 FLG HEAD Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 4G43-02738-AA-PK
                          NUT, M8
                          Pack of 10
                          from £23.35
                          from £23.35
                          NUT-M8 FLG SS(PK 10) Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 9G43-5221-AA
                          CLAMP, EXHAUST PIPE
                          from £25.36
                          from £25.36
                          PIPE ASSEMBLY, EXHAUST REAR LH Genuine Aston Martin - New (to order)
                          # 6
                          MPN: AD43-5220-CA
                          PIPE, EXHAUST
                          from £24.99
                          from £24.99
                          PIPE, EXHAUST OUTLET STUB Genuine Aston Martin - New (to order)
                          # 6
                          MPN: KD43-5220-EA
                          PIPE, EXHAUST
                          19MY AMR
                          from £35.20
                          from £35.20
                          PIPE, EXHAUST Genuine Aston Martin - New (to order)
                          # 8
                          MPN: AD43-5220-DE
                          PIPE, EXHAUST CENTRE
                          Up to 15MY
                          from £703.65
                          from £703.65
                          PIPE, EXHAUST CENTRE Genuine Aston Martin - New (to order)
                          # 8
                          MPN: FD43-5220-DA
                          PIPE, EXHAUST CENTRE
                          FROM 15MY
                          from £572.14
                          from £572.14
                          PIPE, EXHAUST CENTRE Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 4G43-3962-FA
                          BRACKET, SUPPORT EXHAUST ISOLATOR
                          from £9.86
                          from £9.86
                          BRKT-EXH ISLTR Genuine Aston Martin - New (to order)
                          BRKT-EXH ISLTR Genuine Aston Martin - Used In stock
                          With Rubber
                          # 10
                          MPN: 4G43-35-10025
                          ISOLATOR, EXHAUST
                          from £4.77
                          from £4.77
                          EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                          # 12
                          MPN: AD43-5230-AG
                          REAR MUFFLER WITH BYPASS VALVE ASSEMBLY
                          REAR MUFFLER WITH BYPASS VALVE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 12
                          MPN: HD43-5230-AA
                          REAR MUFFLER LESS BYPASS VALVE ASSEMBLY
                          from £3,309.74
                          from £3,309.74
                          REAR MUFFLER LESS BYPASS VALVE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 12
                          MPN: KD43-5230-CB
                          REAR MUFFLER LESS BYPASS VALVE ASSEMBLY
                          19MY AMR
                          from £4,972.98
                          from £4,972.98
                          REAR MUFFLER LESS BYPASS VALVE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 4G43-17213-BA
                          SEALING RING
                          from £33.05
                          from £33.05
                          SEALING RING, EXHAUST Genuine Aston Martin - New (to order)
                          # 14
                          MPN: AD43-5220-EB
                          PIPE, EXHAUST TAIL
                          from £27.90
                          from £27.90
                          PIPE, EXHAUST TAIL Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 9G43-5221-AA
                          PIPE ASSEMBLY, EXHAUST REAR LH
                          from £25.36
                          from £25.36
                          PIPE ASSEMBLY, EXHAUST REAR LH Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 4G43-70816-AA
                          BOLT, M8 FLG HD
                          from £2.62
                          from £2.62
                          BOLT Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 4G43-5F264-AA
                          SPRING, EXHAUST PIPE FLANGE
                          from £9.17
                          from £9.17
                          SPRING-EXH PIP FLG H Genuine Aston Martin - New (to order)
                          # 18
                          MPN: AD43-5220-BE
                          PIPE ASSEMBLY, EXHAUST REAR RH WITH SHIELDS
                          Up To VIN F03987
                          from £512.92
                          from £512.92
                          PIPE ASSEMBLY, EXHAUST REAR RH WITH SHIELDS Genuine Aston Martin - New (to order)
                          # 18
                          MPN: FD43-5220-BC
                          PIPE ASSEMBLY, EXHAUST REAR RH WITH SHIELDS
                          FROM VIN F03988
                          from £388.61
                          from £388.61
                          PIPE ASSEMBLY, EXHAUST REAR RH WITH SHIELDS Genuine Aston Martin - New (to order)
                          # 19
                          MPN: AD43-5220-AE
                          PIPE ASSEMBLY, EXHAUST REAR LH WITH SHIELDS
                          Up To VIN F03987
                          from £454.72
                          from £454.72
                          PIPE ASSEMBLY, EXHAUST REAR LH WITH SHIELDS Genuine Aston Martin - New (to order)
                          # 19
                          MPN: FD43-5220-AC
                          PIPE ASSEMBLY, EXHAUST REAR LH WITH SHIELDS
                          FROM VIN F03988
                          from £388.61
                          from £388.61
                          PIPE ASSEMBLY, EXHAUST REAR LH WITH SHIELDS Genuine Aston Martin - New (to order)
                          # 21
                          MPN: AH22-5A262-AA
                          INSULATOR, MUFFLER HANGER MOUNTING
                          from £10.86
                          from £10.86
                          INSULATOR, MUFFLER HANGER MOUNTING Genuine Aston Martin - New (to order)
                          # 22
                          MPN: AD43-5N201-AA
                          BRACKET, EXHAUST PIPE MOUNTING REAR LH
                          from £9.70
                          from £9.70
                          BRACKET, EXHAUST PIPE MOUNTING REAR LH Genuine Aston Martin - New (to order)
                          # 22
                          MPN: KD43-5N201-AA
                          BRACKET, EXHAUST PIPE MOUNTING REAR LH
                          19MY AMR
                          BRACKET, EXHAUST PIPE MOUNTING REAR LH Genuine Aston Martin - New (to order)
                          # 22
                          MPN: AD43-5N201-BA
                          BRACKET, EXHAUST PIPE MOUNTING REAR RH
                          from £9.70
                          from £9.70
                          BRACKET, EXHAUST PIPE MOUNTING REAR RH Genuine Aston Martin - New (to order)
                          # 22
                          MPN: KD43-5N201-BA
                          BRACKET, EXHAUST PIPE MOUNTING REAR RH
                          19MY AMR
                          BRACKET, EXHAUST PIPE MOUNTING REAR RH Genuine Aston Martin - New (to order)
                          # 23
                          MPN: AD43-5N201-CA
                          BRACKET, MUFFLER MOUNTING BAR LH
                          from £9.70
                          from £9.70
                          BRACKET, MUFFLER MOUNTING BAR LH Genuine Aston Martin - New (to order)
                          # 23
                          MPN: AD43-5N201-DA
                          BRACKET, MUFFLER MOUNTING BAR RH
                          from £9.70
                          from £9.70
                          BRACKET, MUFFLER MOUNTING BAR RH Genuine Aston Martin - New (to order)
                          # 24
                          MPN: AD43-5N201-GA
                          BRACKET, MUFFLER MOUNTING BAR LH
                          Up to 15MY
                          BRACKET, MUFFLER MOUNTING BAR LH Genuine Aston Martin - New (to order)
                          # 24
                          MPN: FD43-5N201-GA
                          BRACKET, MUFFLER MOUNTING BAR LH
                          FROM 15MY
                          from £20.36
                          from £20.36
                          BRACKET, MUFFLER MOUNTING BAR LH Genuine Aston Martin - New (to order)
                          # 24
                          MPN: AD43-5N201-HA
                          BRACKET, MUFFLER MOUNTING BAR RH
                          Up to 15MY
                          BRACKET, MUFFLER MOUNTING BAR RH Genuine Aston Martin - New (to order)
                          # 24
                          MPN: FD43-5N201-HA
                          BRACKET, MUFFLER MOUNTING BAR RH
                          FROM 15MY
                          from £20.36
                          from £20.36
                          BRACKET, MUFFLER MOUNTING BAR RH Genuine Aston Martin - New (to order)
                          # 25
                          MPN: 703121
                          SCREW, M8X20
                          2 per bracket
                          from £0.47
                          from £0.47
                          SCREW M8X20 HEX FLG Genuine Aston Martin - New (to order)
                          # 26
                          MPN: 699736
                          CLIP
                          from £1.68
                          from £1.68
                          CLIP - PANEL EDGE Genuine Aston Martin - New (to order)
                          # 26
                          MPN: 4G43-32185-BA
                          CLIP
                          19MY AMR
                          CLIP, SPRING Genuine Aston Martin - New (to order)
