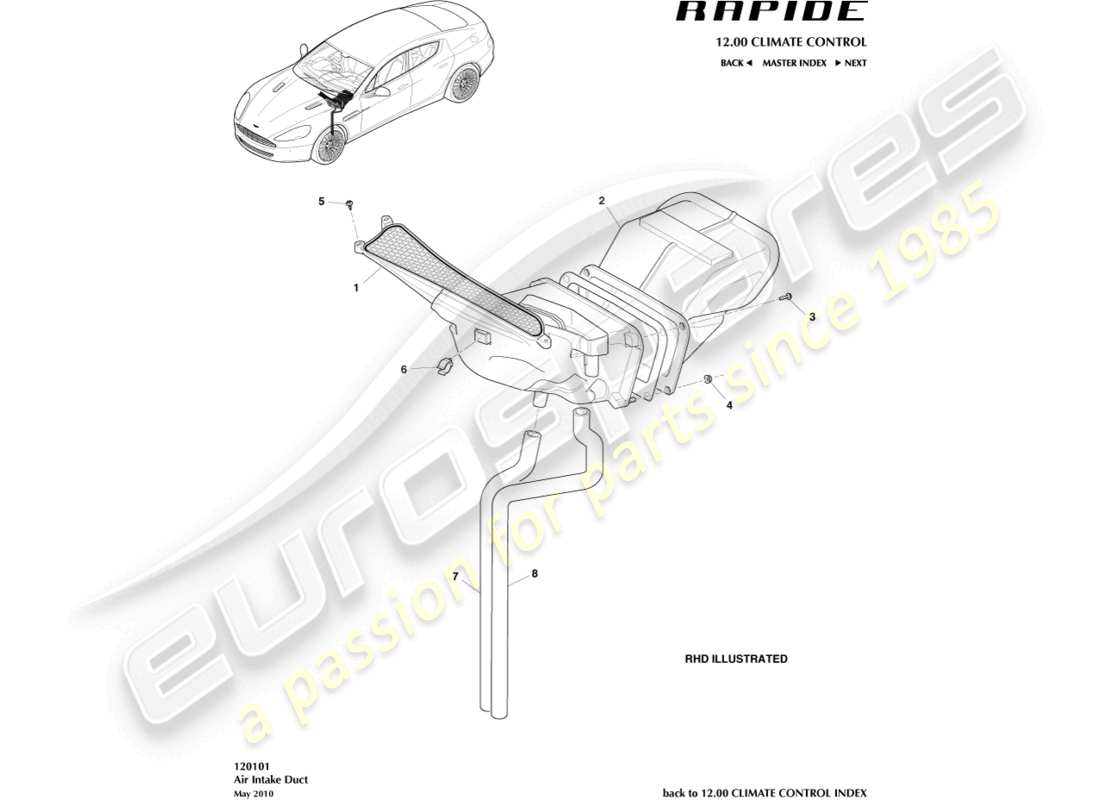

120101 - Air Intake Components

Aston Martin Rapide (2010) Air Intake Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 4G43-18A621-BA
              DUCT ASSY, HEATER AIR INLET, RHD
              RHD
              from £173.47
              from £173.47
              DUCT ASSEMBLY, HEATER AIR INLET, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-18A622-BA
              DUCT ASSY, HEATER AIR INLET, LHD
              LHD
              from £173.47
              from £173.47
              DUCT, HEATER INLET, LHD Genuine Aston Martin - New (to order)
              # 2
              MPN: 4G43-18A660-AE
              DUCT ASSY, HEATER AIR INLET, PASSENGER SIDE
              from £26.21
              from £26.21
              DUCT ASSEMBLY, HEATER AIR INLET, PASSENGER SIDE Genuine Aston Martin - New (to order)
              DUCT ASSEMBLY, HEATER AIR INLET, PASSENGER SIDE Genuine Aston Martin - Used In stock
              # 3
              MPN: 702994
              SCREW, M6 X 20, HEATER TO AIR DUCT
              from £0.47
              from £0.47
              NUT M6 HEX THIN Genuine Aston Martin - New (to order)
              # 4
              MPN: 701170
              NUT, M6, HEATER TO AIR INLET DUCT
              NUT, FLG, M6, REGULATOR TO BODY Genuine Aston Martin - New (to order)
              # 5
              MPN: 703104
              SCREW, 4.8 X 19
              from £0.47
              from £0.47
              SC ST4.8 X 1.59 X 19 Genuine Aston Martin - New In stock
              # 6
              MPN: 701172
              CLIP, OPEN PUSH IN
              from £0.47
              from £0.47
              CLIP 16X2.8-3.3 Genuine Aston Martin - New (to order)
              # 7
              MPN: 4G43-3810-AC
              TUBE, PLENUM DRAIN
              from £10.46
              from £10.46
              TUBE, PLENUM DRAIN Genuine Aston Martin - New (to order)
              TUBE, PLENUM DRAIN Genuine Aston Martin - Used In stock
              # 8
              MPN: 4G43-3810-BB
              TUBE ASSY, PLENUM DRAIN, RHD
              RHD
              from £13.05
              from £13.05
              TUBE ASSEMBLY, PLENUM DRAIN, RHD Genuine Aston Martin - New (to order)
              TUBE ASSEMBLY, PLENUM DRAIN, RHD Genuine Aston Martin - Used In stock
              # -
              MPN: 4G43-3810-CA
              TUBE, PLENUM DRAIN, LHD
              LHD
              from £22.68
              from £22.68
              TUBE, PLENUM DRAIN, LHD Genuine Aston Martin - New (to order)
