aston martin rapide (2010) media system, up to 13my parts diagram

150104-10 - Media System, Up to 13MY

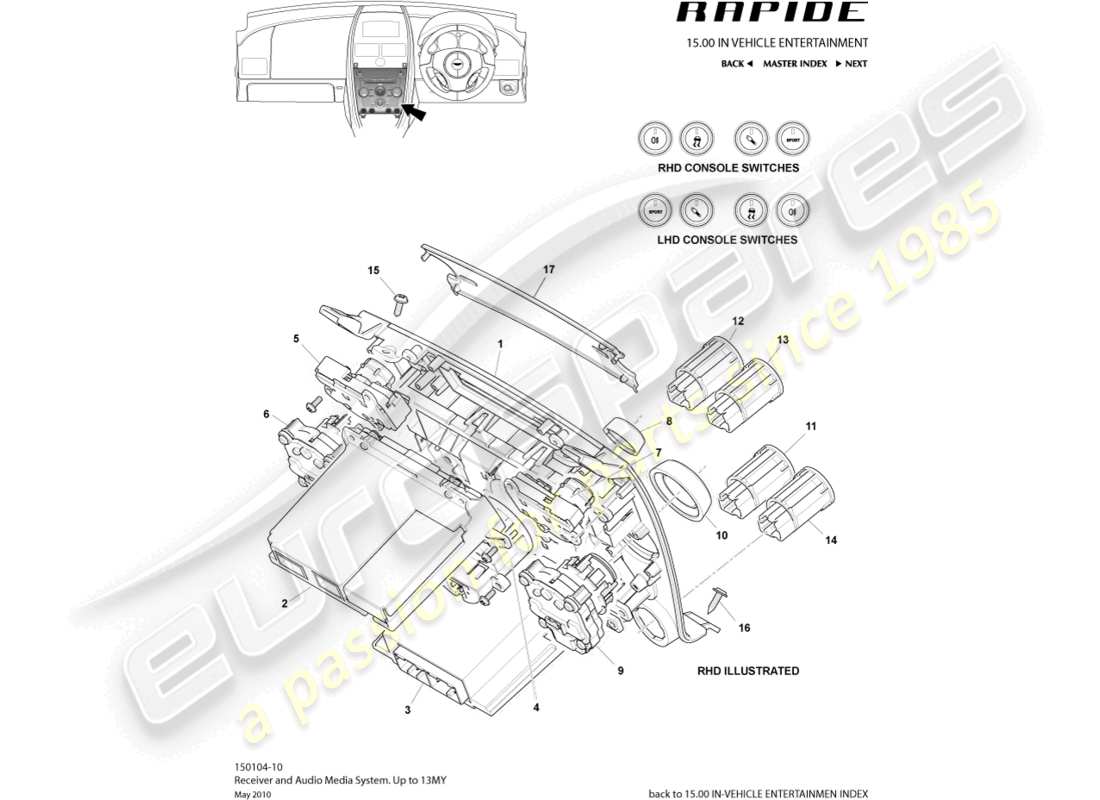

Aston Martin Rapide (2010) Media System, Up to 13MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # -
                        MPN: AD43-18C858-BA
                        CENTRE STACK ASSEMBLY
                        RHD
                        CENTRE STACK ASSEMBLY Genuine Aston Martin - New (to order)
                        # -
                        MPN: AD43-18C858-AA
                        CENTRE STACK ASSEMBLY
                        LHD
                        from £5,444.56
                        from £5,444.56
                        CENTRE STACK ASSEMBLY Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 9G43-13D734-AC
                        SWITCH BODY, GRAPHITE INNER/SILVER OUTER
                        from £2,747.94
                        from £2,747.94
                        SWITCH BODY, GRAPHITE INNER/SILVER OUTER Genuine Aston Martin - New (to order)
                        # 1
                        MPN: CG43-13D734-AA
                        SWITCH BODY, GRAPHITE INNER/SILVER OUTER
                        12MY
                        SWITCH BODY, SILVER OUTER, GRAPHITE INNER Genuine Aston Martin - New (to order)
                        # 1
                        MPN: CD33-13D734-CA
                        SWITCH BODY, BLACK INNER/BLACK OUTER
                        12MY
                        from £2,212.74
                        from £2,212.74
                        SWITCH MAIN BODY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 8D33-18K810-AA
                        INFOTAINMENT MODULE
                        from £972.67
                        from £972.67
                        ICM HW Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 8D33-18C612-AB
                        MODULE, HVAC CONTROL
                        from £546.24
                        from £546.24
                        MODULE, HVAC CONTROL Genuine Aston Martin - New (to order)
                        # 3
                        MPN: CG43-18C612-BA
                        MODULE, HVAC CONTROL
                        12MY
                        from £472.19
                        from £472.19
                        CCM/ ECU Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 8D33-15000-BB
                        ANALOGUE CLOCK
                        from £471.90
                        from £471.90
                        CLOCK, ANALOGUE Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 8D33-13D734-CB
                        MODULE, TUNE / SCAN AUDIO CONTROL
                        from £129.56
                        from £129.56
                        AUDIO CTRL MODULE Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 8D33-18C612-DA
                        MODULE, TEMP HVAC ROTARY CONTROL
                        from £112.00
                        from £112.00
                        MODULE, TEMP HVAC ROTARY CONTROL Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 8D33-13D734-BB
                        MODULE, VOLUME / AUTO AUDIO CONTROL
                        from £151.13
                        from £151.13
                        MODULE, VOLUME/AUTO AUDIO CONTROL Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 8D33-18817-AC
                        KNOB, AUDIO CONTROL
                        from £216.81
                        from £216.81
                        KNOB, AUDIO CONTROL Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 8D33-18C612-EA
                        MODULE, FAN SPEED HVAC ROTARY CONTROL
                        from £138.82
                        from £138.82
                        MODULE, FAN SPEED HVAC ROTARY CONTROL, PIANO BLACK Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 8D33-18783-AC
                        KNOB, HVAC CONTROL
                        from £237.23
                        from £237.23
                        KNOB, HVAC CONTROL Genuine Aston Martin - New (to order)
                        # -
                        MPN: AD43-37-10087
                        Switch Kit, Glass
                        special order
                        from £783.74
                        from £783.74
                        Switch Kit, Glass Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 6G33-2C418-AA
                        SWITCH, DSC CONTROL
                        from £15.99
                        from £15.99
                        SWITCH, DSC CONTROL Genuine Aston Martin - New (to order)
                        SWITCH, DSC CONTROL Genuine Aston Martin - Used In stock
                        # 11
                        MPN: AD33-2C418-DA
                        SWITCH, DSC CONTROL
                        11MY, Glass
                        from £66.67
                        from £66.67
                        DSC CONTROL SWITCH Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 9D33-14B626-BA
                        SWITCH, SPORT
                        from £27.77
                        from £27.77
                        SWITCH, SPORT Genuine Aston Martin - New (to order)
                        # 12
                        MPN: AD33-14B626-CA
                        SWITCH, SPORT
                        11MY, Glass
                        SWITCH, SPORTS MODE, AUTO Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 8D33-2C418-CA
                        SWITCH, ACTIVE DAMPING MODE
                        from £37.95
                        from £37.95
                        SWITCH, ACTIVE DAMPING MODE Genuine Aston Martin - New (to order)
                        # 13
                        MPN: AD33-2C418-CA
                        SWITCH, ACTIVE DAMPING MODE
                        11MY, Glass
                        from £111.11
                        from £111.11
                        ACTIVE DAMPING SWTCH Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 6G33-15K237-BA
                        SWITCH, REAR FOG
                        SWITCH, REAR FOG Genuine Aston Martin - New (to order)
                        # 14
                        MPN: AD33-15K237-BA
                        SWITCH, REAR FOG
                        11MY, Glass
                        SWITCH, GLASS, REAR FOG Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 701660
                        SCREW, 4.2X13
                        SCREW, 4.2 X 13 Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 701157-PK
                        SCREW, WASHER HEAD
                        from £1.65
                        from £1.65
                        SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                        # 17
                        MPN: AG43-04708-BB
                        LENS COVER, ICM
                        from £64.82
                        from £64.82
                        LENS, ICM Genuine Aston Martin - New (to order)
