065 - Battery

Ferrari 456 M GT/M GTA Battery Parts Diagram

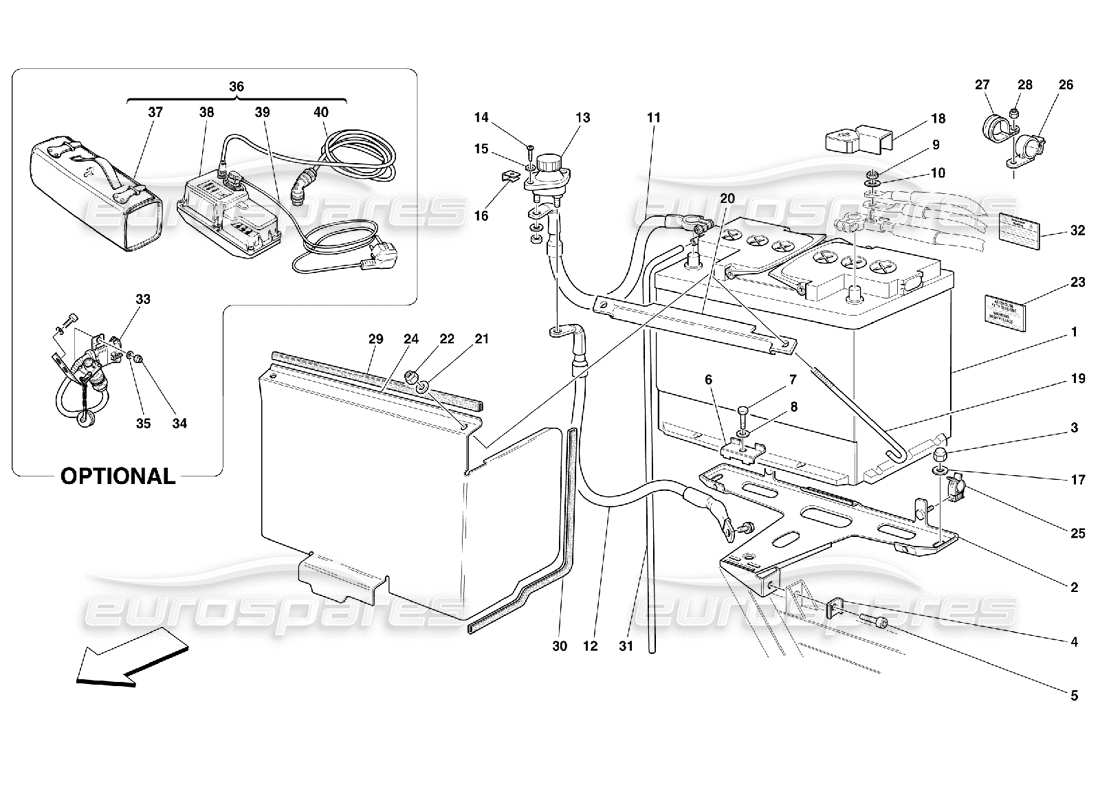

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 174802
                                                      BATTERY 12V-80AH 450A
                                                      - Not for GD - Not as spare part now - Replaced by 180055 + 180056 - See position 31
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 175803
                                                      BATTERY 12V-80AH 450A
                                                      - Valid for GD
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 180055
                                                      BATTERY 12V-74AH 400A
                                                      - Not for GD
                                                      from £194.23
                                                      from £194.23
                                                      This part replaces part number 188066
                                                      # 002
                                                      MPN: 178388
                                                      PLATE FOR BATTERY SUPPORT
                                                      - Not for GD
                                                      from £76.92
                                                      from £76.92
                                                      # 002
                                                      MPN: 178864
                                                      PLATE FOR BATTERY SUPPORT
                                                      - Valid for GD
                                                      from £42.31
                                                      from £42.31
                                                      # 003
                                                      MPN: 150595
                                                      CAP NUT
                                                      from £0.58
                                                      from £0.58
                                                      This part replaces part number 16109642
                                                      # 004
                                                      MPN: 155599
                                                      BRACKET
                                                      from £1.59
                                                      from £1.59
                                                      # 005
                                                      MPN: 14306224
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 14306221 - and 1 more. Click to view details
                                                      # 006
                                                      MPN: 154324
                                                      MOBILE BRACKET
                                                      from £15.93
                                                      from £15.93
                                                      # 007
                                                      MPN: 16043724
                                                      SCREW
                                                      from £0.71
                                                      from £0.71
                                                      This part replaces part number 16043721
                                                      # 008
                                                      MPN: 14499421
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 14499424
                                                      # 009
                                                      MPN: 147985
                                                      NUT
                                                      from £0.54
                                                      from £0.54
                                                      # 010
                                                      MPN: 12638524
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12638501 - and 2 more. Click to view details
                                                      # 011
                                                      MPN: 153117
                                                      COPPER PLAIT FROM BATTERY TO SWITCH
                                                      from £40.19
                                                      from £40.19
                                                      # 012
                                                      MPN: 153128
                                                      COPPER PLAIT FROM SWITCH TO EARTH
                                                      from £53.11
                                                      from £53.11
                                                      # 013
                                                      MPN: 139607
                                                      CUT-OUT SWITCH
                                                      Supersession
                                                      Supersession
                                                      # 014
                                                      MPN: 15688275
                                                      SCREW
                                                      from £1.31
                                                      from £1.31
                                                      This part replaces part number 15688208 which we have in stock - and 1 more. Click to view details
                                                      # 015
                                                      MPN: 12637878
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 12637806
                                                      # 016
                                                      MPN: 61067800
                                                      BRACKET
                                                      from £1.08
                                                      from £1.08
                                                      # 017
                                                      MPN: 12646724
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                      # 018
                                                      MPN: 144727
                                                      PROTECTION BOOT
                                                      - Not as spare part now - Replaced by 177449
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 123674/T - and 1 more. Click to view details
                                                      # 018
                                                      MPN: 177449
                                                      CABLES PROTECTION
                                                      Supersession
                                                      Supersession
                                                      # 019
                                                      MPN: 189130
                                                      TIE ROD
                                                      from £40.02
                                                      from £40.02
                                                      This part replaces part number 171904
                                                      # 020
                                                      MPN: 171903
                                                      ANGLE PIECE
                                                      from £32.67
                                                      from £32.67
                                                      # 021
                                                      MPN: 14496424
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 14496401 - and 3 more. Click to view details
                                                      # 022
                                                      MPN: 102948
                                                      NUT
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                      # 023
                                                      MPN: 113404
                                                      WARNING HIGH VOLTAGE PLATE
                                                      from £6.83
                                                      from £6.83
                                                      # 024
                                                      MPN: 178884
                                                      BATTERY HEAT SHIELD
                                                      - Not for GD
                                                      from £78.47
                                                      from £78.47
                                                      # 024
                                                      MPN: 178885
                                                      BATTERY HEAT SHIELD
                                                      - Valid for GD
                                                      from £18.94
                                                      from £18.94
                                                      # 025
                                                      MPN: 175710
                                                      CLIP
                                                      from £0.53
                                                      from £0.53
                                                      # 026
                                                      MPN: 160888
                                                      CLIP
                                                      from £2.18
                                                      from £2.18
                                                      # 027
                                                      MPN: 10442090
                                                      BRACKET WITH SHEATH
                                                      from £0.47
                                                      from £0.47
                                                      # 028
                                                      MPN: 102948
                                                      NUT
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                      # 029
                                                      MPN: 179906
                                                      GASKET
                                                      from £4.25
                                                      from £4.25
                                                      This part replaces part number 179907
                                                      # 030
                                                      MPN: 179906
                                                      GASKET - 40CM IN LENGTH
                                                      from £4.25
                                                      from £4.25
                                                      This part replaces part number 179907
                                                      # 031
                                                      MPN: 180056
                                                      BATTERY ACID EXHAUST TUBE
                                                      - Not for GD
                                                      from £0.83
                                                      from £0.83
                                                      # 032
                                                      MPN: 184205
                                                      BATTERY EXCLUSION PLATE
                                                      - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                      from £4.77
                                                      from £4.77
                                                      # 033
                                                      MPN: 178566
                                                      BATTERY CHARGER ADDITIONAL CABLE
                                                      - optional
                                                      from £331.55
                                                      from £331.55
                                                      # 034
                                                      MPN: 102741
                                                      NUT
                                                      - optional
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                      # 035
                                                      MPN: 10519424
                                                      WASHER
                                                      - optional
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                      # 036
                                                      MPN: 178682
                                                      BATTERY CHARGER KIT
                                                      - Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
                                                      from £1,359.75
                                                      from £1,359.75
                                                      This part replaces part number 70000941
                                                      # 036
                                                      MPN: 178684
                                                      BATTERY CHARGER KIT
                                                      - Valid for AUS - Optional
                                                      from £534.99
                                                      from £534.99
                                                      This part replaces part number 70000943
                                                      # 036
                                                      MPN: 178685
                                                      BATTERY CHARGER KIT
                                                      - Valid for GB and Hong Kong - Optional
                                                      from £612.29
                                                      from £612.29
                                                      This part replaces part number 70000944
                                                      # 036
                                                      MPN: 70002821
                                                      BATTERY CHARGER KIT
                                                      - Valid for USA, CDN and J - Optional
                                                      from £204.78
                                                      from £204.78
                                                      This part replaces part number 70001701
                                                      # 037
                                                      MPN: 65699200
                                                      BATTERY BAG CASE
                                                      - optional
                                                      from £414.21
                                                      from £414.21
                                                      # 038
                                                      MPN: 177791
                                                      BATTERY CHARGER - 230V
                                                      - Not for USA, CDN and J - Optional
                                                      from £476.88
                                                      from £476.88
                                                      # 038
                                                      MPN: 177792
                                                      BATTERY CHARGER - 110V
                                                      - Not for USA, CDN and J - Optional
                                                      from £1,222.13
                                                      from £1,222.13
                                                      # 039
                                                      MPN: 177794
                                                      POWER SUPPLY CABLE
                                                      - Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
                                                      from £16.99
                                                      from £16.99
                                                      # 039
                                                      MPN: 177795
                                                      POWER SUPPLY CABLE
                                                      - Valid for USA, CDN and J - Optional
                                                      from £12.74
                                                      from £12.74
                                                      # 039
                                                      MPN: 177796
                                                      POWER SUPPLY CABLE
                                                      - Valid for AUS - Optional
                                                      from £23.94
                                                      from £23.94
                                                      # 039
                                                      MPN: 178294
                                                      POWER SUPPLY CABLE
                                                      - Valid for GB and Hong Kong - Optional
                                                      from £40.79
                                                      from £40.79
                                                      # 040
                                                      MPN: 178676
                                                      CABLE WITH CONNECTOR
                                                      - optional
                                                      from £258.50
                                                      from £258.50
