042 - F1 Clutch Hydraulic Control -Valid for F1-

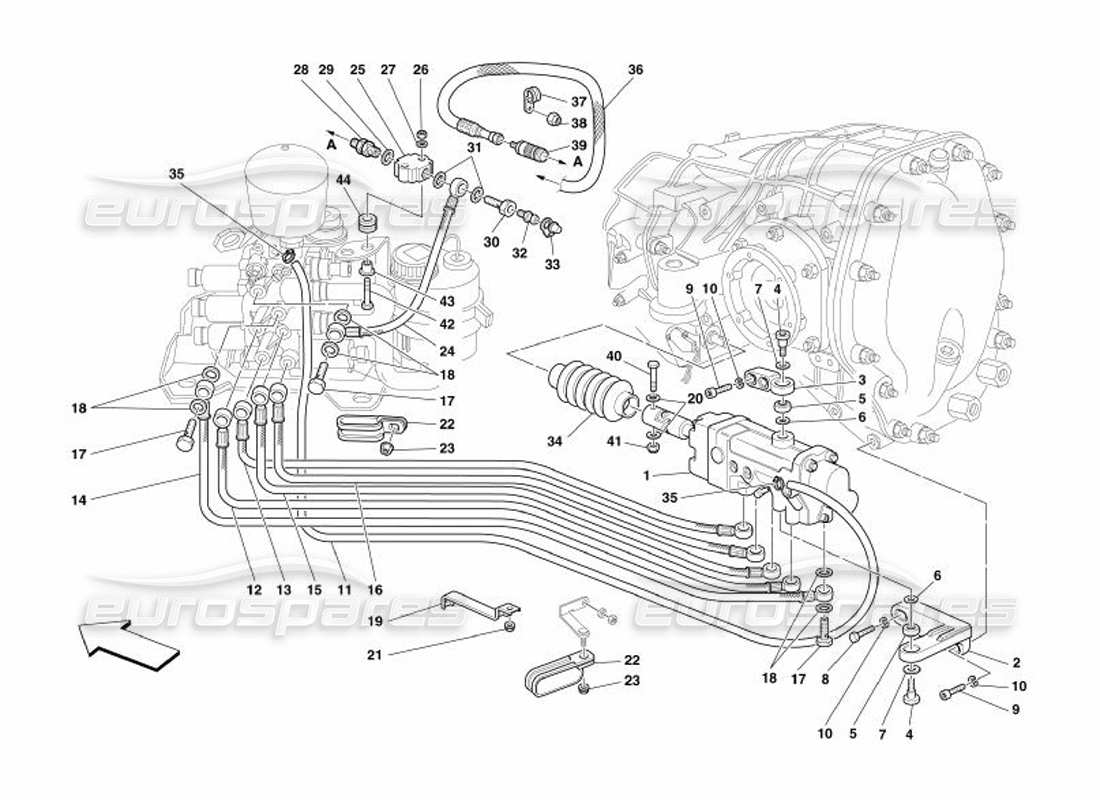

Ferrari 575 Superamerica F1 Clutch Hydraulic Control -Valid for F1- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 212821
F1 Clutch Hydraulic Control
from £4,216.91
from £4,216.91
# 001
MPN: 179141
COMPLETE HYDRAULIC ACTUATOR
USE: 247224
Supersession
Supersession
# 002
MPN: 184110
LOWER ACTUATOR SUPPORT BRACKET
from £390.95
from £390.95
# 003
MPN: 184109
UPPER ACTUATOR SUPPORT BRACKET
Supersession
Supersession
# 004
MPN: 179300
PIN
from £149.74
from £149.74
# 005
MPN: 169222
BALL JOINT
from £24.36
from £24.36
# 006
MPN: 179679
WASHER
from £33.95
from £33.95
# 007
MPN: 10730314
WASHER
from £1.43
from £1.43
# 008
MPN: 16043834
SCREW
from £0.47
from £0.47
This part replaces part number 16043824
# 009
MPN: 14306524
SCREW
from £0.47
from £0.47
This part replaces part number 14306521
# 010
MPN: 10569374
WASHER
from £0.47
from £0.47
# 011
MPN: 194027
OIL RECYCLE TUBE
from £17.74
from £17.74
# 012
MPN: 185087
PIPE (EV1)
from £281.24
from £281.24
# 013
MPN: 185088
PIPE (EV2)
from £163.86
from £163.86
# 014
MPN: 185089
PIPE (EV3)
from £172.13
from £172.13
# 015
MPN: 185090
PIPE (EV4)
from £164.95
from £164.95
# 016
MPN: 185091
PIPE (EV5)
from £172.99
from £172.99
# 017
MPN: 171454
UNION
from £27.04
from £27.04
# 017
MPN: 204543
UNION
from £53.98
from £53.98
# 017
MPN: 204545
UNION
from £56.14
from £56.14
# 018
MPN: 10261060
GASKET
from £0.49
from £0.49
# 019
MPN: 193714
PIPES SUPPORTING BRACKET
from £15.68
from £15.68
# 020
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 021
MPN: 14058411
NUT
from £0.47
from £0.47
# 022
MPN: 61712500
BRACKET WITH SHEATH
from £0.88
from £0.88
# 023
MPN: 14058411
NUT
from £0.47
from £0.47
# 024
MPN: 185093
PIPE FROM VALVE SET TO BLOCK
from £250.19
from £250.19
# 025
MPN: 175667
BLOCK
from £11.67
from £11.67
# 026
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 027
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 028
MPN: 210468
QUICK MALE COUPLING
from £81.31
from £81.31
This part replaces part number 171773
# 029
MPN: 171755
WASHER
from £2.37
from £2.37
# 030
MPN: 171630
UNION
from £20.49
from £20.49
# 031
MPN: 10261060
GASKET
from £0.53
from £0.53
# 032
MPN: 152954
BLEEDER SCREW
from £3.18
from £3.18
# 033
MPN: 152955
PROTECTION BOOT
from £2.95
from £2.95
# 034
MPN: 184119
RUBBER BOOT
from £105.83
from £105.83
# 035
MPN: 13430770
ELASTIC COLLAR
from £0.47
from £0.47
# 036
MPN: 186357
CLUTCH HOSE
from £415.11
from £415.11
# 037
MPN: 10441690
BRACKET WITH SHEATH
from £1.10
from £1.10
This part replaces part number 1044690
# 038
MPN: 14058411
NUT
from £0.47
from £0.47
# 039
MPN: 210469
FEMALE COUPLING
Supersession
Supersession
# 040
MPN: 170767
SCREW
from £4.22
from £4.22
# 041
MPN: 101139
NUT
from £0.47
from £0.47
This part replaces part number 16104425
# 042
MPN: 10903224
SCREW
from £0.47
from £0.47
This part replaces part number 10903221
# 043
MPN: 149707
SPACER FOR CABLE GROMMET
from £0.65
from £0.65
# 044
MPN: 177576
CABLE GROMMET
from £1.11
from £1.11
