E.12 - rollbar
Ferrari Portofino M ROLLBAR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 69905000
ACTIVE ROLL BAR
| No longer supplied - Replaced by 787470 | | Not applicable for: AUS |
Supersession
Supersession
# 001
MPN: 787469
rollbar
| Applicable for: AUS |
from £3,221.79
from £3,221.79
# 001
MPN: 787470
rollbar
| Not applicable for: AUS |
from £2,990.40
from £2,990.40
This part replaces part number 69905000
# 002
MPN: 15213834
SCREW
from £0.69
from £0.69
# 003
MPN: 219344
WASHER
Supersession
Supersession
# 004
MPN: 791038

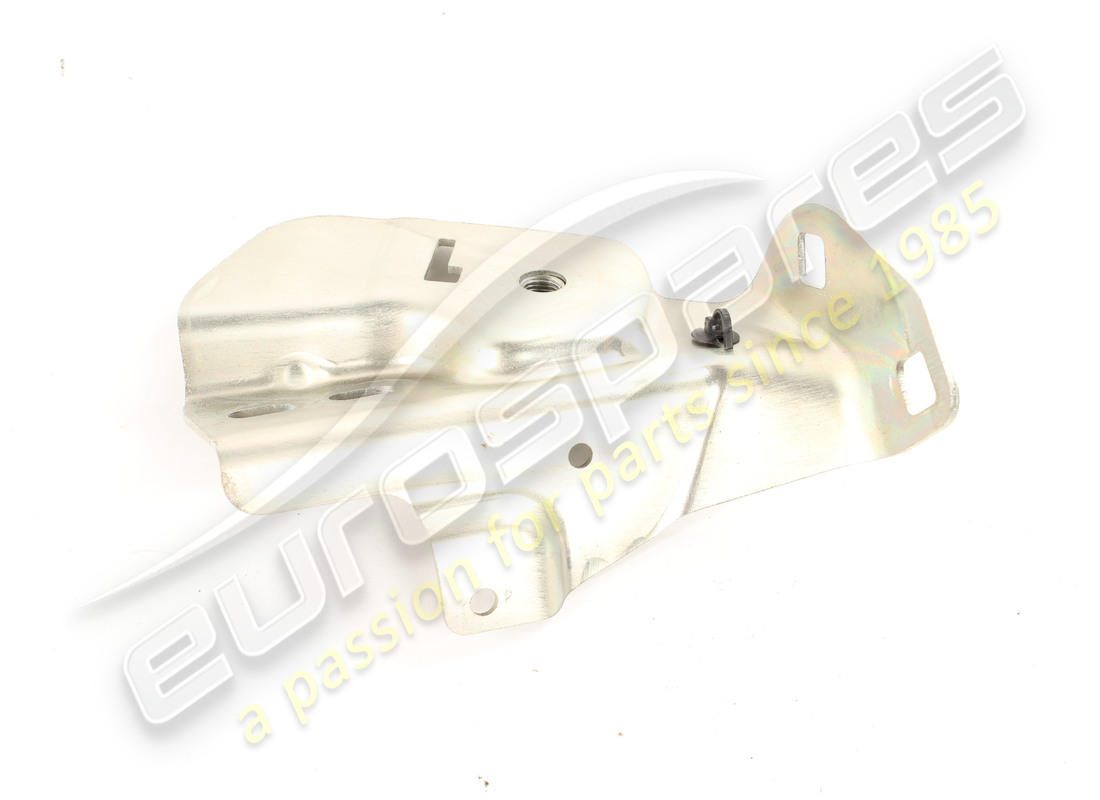

COMPL. RH REAR BELT WINDER MOUNTING BRACKET
from £19.28
from £19.28
# 005
MPN: 791037

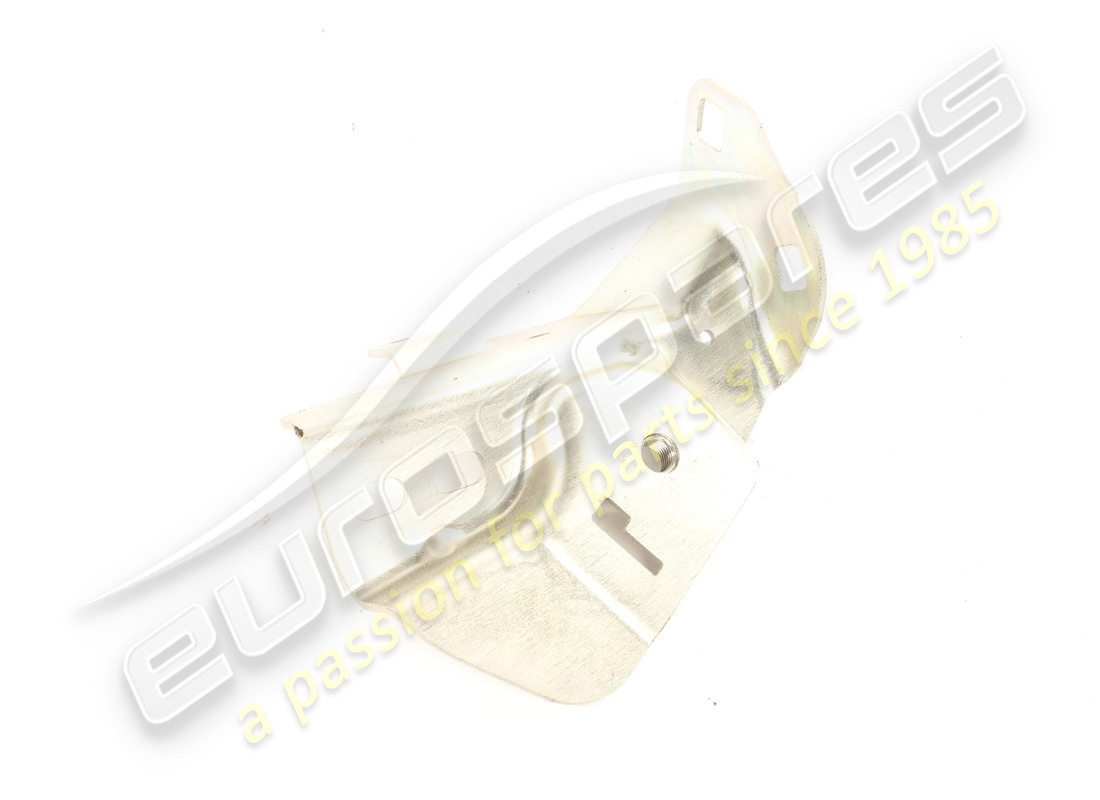

COMPL. LH REAR BELT WINDER MOUNTING BRACKET
from £19.28
from £19.28
# 006
MPN: 16043434
SCREW
from £0.47
from £0.47
This part replaces part number 13825824 - and 1 more. Click to view details
# 007
MPN: 16043634
SCREW
from £0.47
from £0.47
# 008
MPN: 219344
WASHER
Supersession
Supersession
