lamborghini urus (2020) cooling system for gear oil parts diagram

317.01.00 - COOLING SYSTEM FOR GEAR OIL

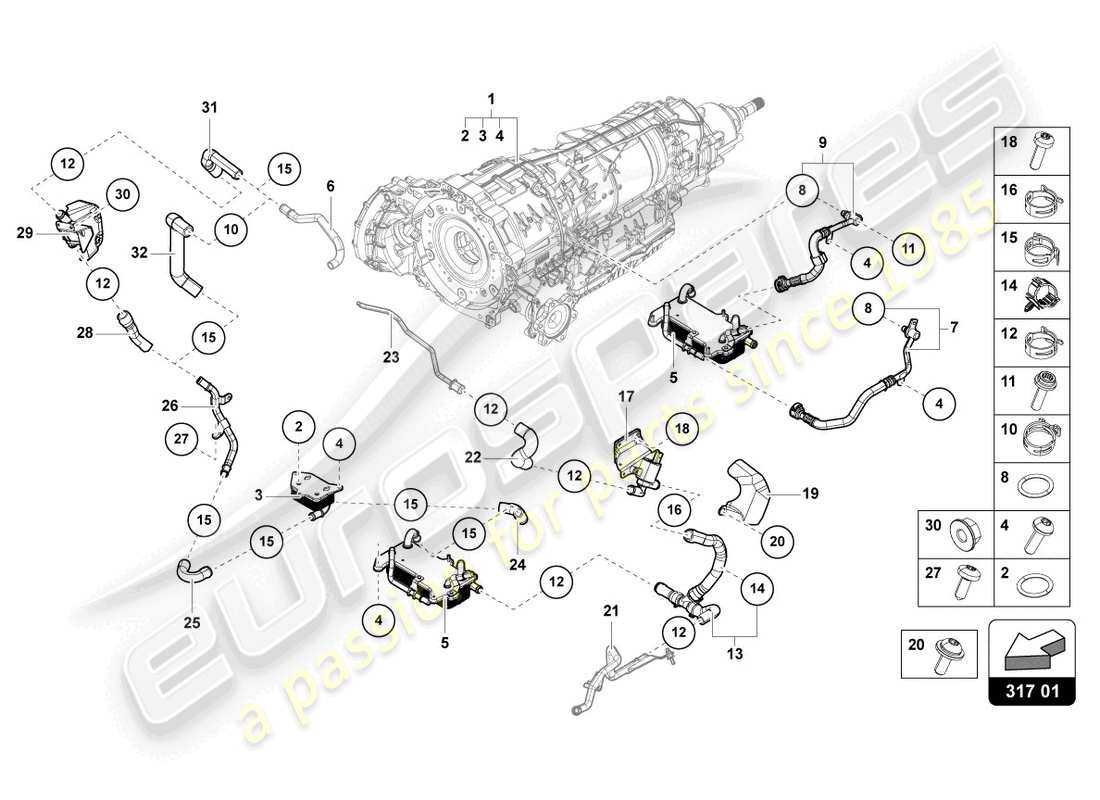

Lamborghini Urus (2020) COOLING SYSTEM FOR GEAR OIL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          -
                          8-SPEED automatic gearbox
                          # 002
                          MPN: 09E409069
                          O-RING
                          from £6.83
                          from £6.83
                          # 003
                          MPN: 8W0317021C
                          GEAR OIL COOLER
                          from £88.45
                          from £88.45
                          # 004
                          MPN: N10196103
                          OVAL SOCKET HEAD BOLT WITH HEX DRIVE
                          M6X18
                          from £0.78
                          from £0.78
                          # 005
                          MPN: 4M0317021G
                          GEAR OIL COOLER
                          from £150.28
                          from £150.28
                          # 006
                          -
                          PIPE
                          # 007
                          MPN: 4N0317818AF
                          oil pressure line
                          FEED
                          from £36.05
                          from £36.05
                          # 008
                          MPN: N90666003
                          O-RING
                          11,5X3
                          from £2.76
                          from £2.76
                          # 009
                          MPN: 4N0317817AF
                          oil pressure line
                          RETURN
                          from £37.24
                          from £37.24
                          # 010
                          MPN: N90686902
                          SPRING BAND CLAMP
                          23X12
                          from £3.55
                          from £3.55
                          # 011
                          MPN: N91142201
                          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
                          from £0.89
                          from £0.89
                          # 012
                          MPN: N90687001
                          SPRING BAND CLAMP
                          27X12
                          from £4.55
                          from £4.55
                          # 013
                          MPN: 4M0122448J
                          COOLANT HOSE
                          from £17.48
                          from £17.48
                          # 014
                          MPN: 3C0121093D
                          HOSE BRACKET
                          23
                          from £2.34
                          from £2.34
                          # 015
                          MPN: N90686901
                          SPRING BAND CLAMP
                          23X12
                          from £0.56
                          from £0.56
                          # 016
                          MPN: N90687001
                          SPRING BAND CLAMP
                          27X12
                          from £4.55
                          from £4.55
                          # 017
                          MPN: 4M0121305BC
                          SOLENOID VALVE WITH HOLDER
                          from £56.12
                          from £56.12
                          # 018
                          MPN: N10124309
                          OVAL HEXAGON SOCKET HEAD BOLT
                          M6X20
                          from £0.58
                          from £0.58
                          # 019
                          MPN: 4M0121651A
                          HEAT REFLECTIVE MAT
                          from £3.91
                          from £3.91
                          # 020
                          MPN: N90958903
                          HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                          M6X16
                          from £1.04
                          from £1.04
                          # 021
                          -
                          COOLANT PIPE
                          # 022
                          MPN: 4M0121056AQ
                          COOLANT HOSE
                          from £4.04
                          from £4.04
                          # 023
                          -
                          COOLANT PIPE
                          # 024
                          MPN: 4M0121444D
                          COOLANT HOSE
                          from £3.86
                          from £3.86
                          # 025
                          MPN: 4M0121449ED
                          COOLANT HOSE
                          from £2.10
                          from £2.10
                          # 026
                          MPN: 4M0121485CQ
                          COOLANT PIPE
                          from £21.64
                          from £21.64
                          # 027
                          MPN: N91096701
                          OVAL HEXAGON SOCKET HEAD BOLT
                          M6X16
                          from £1.09
                          from £1.09
                          # 028
                          -
                          COOLANT HOSE
                          # 029
                          -
                          ADDITIONAL COOLANT PUMP
                          # 030
                          MPN: N01508210
                          HEXAGON COLLAR NUT
                          M6
                          from £1.28
                          from £1.28
                          # 031
                          -
                          COOLANT HOSE
                          # 032
                          MPN: 4M0121449EE
                          COOLANT HOSE
                          from £5.02
                          from £5.02
