lamborghini urus (2020) vacuum hoses for brake servo parts diagram

611.03.00 - VACUUM HOSES FOR BRAKE SERVO

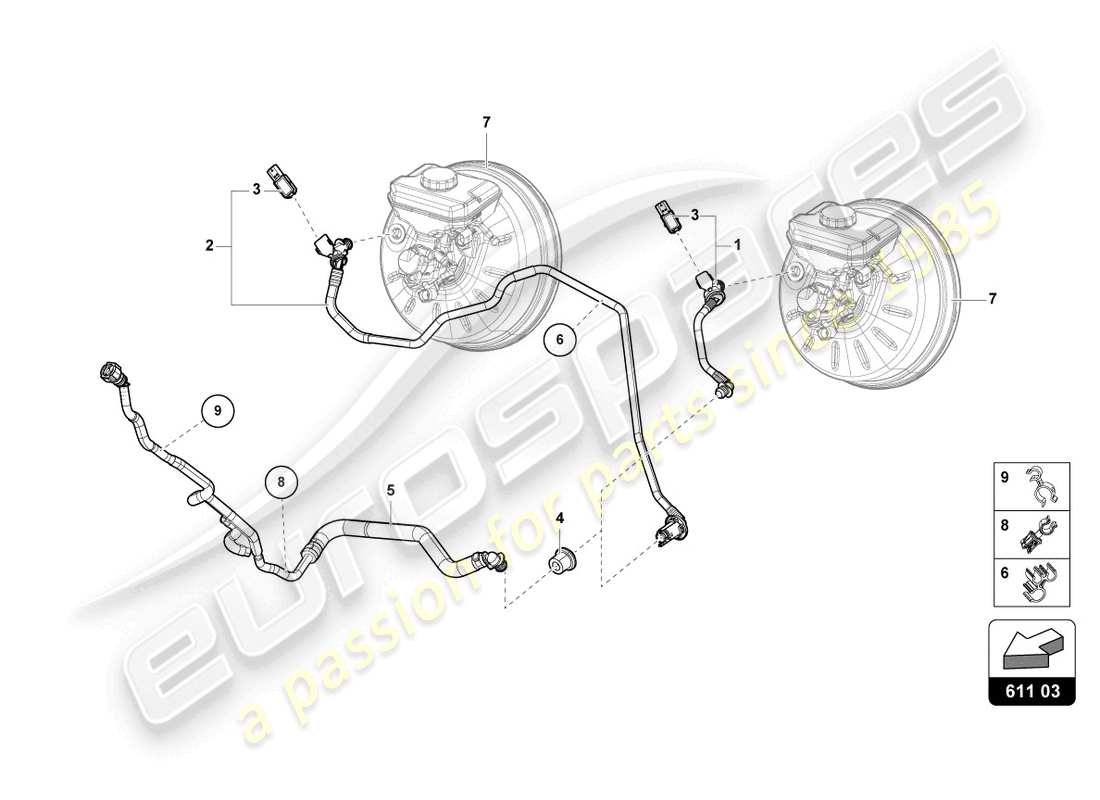

Lamborghini Urus (2020) VACUUM HOSES FOR BRAKE SERVO Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 4M1611931E
            VACUUM HOSE WITH NON-RETURN VALVE AND PRESSURE SENSOR
            LHD (EURO, EUROPE, USA spec vehicles)
            from £86.90
            from £86.90
            # 002
            MPN: 4M2611931H
            VACUUM HOSE WITH NON-RETURN VALVE AND PRESSURE SENSOR
            RHD (UK spec vehicles)
            from £60.16
            from £60.16
            # 003
            MPN: 5Q0906207
            PRESSURE SENSOR
            from £37.48
            from £37.48
            # 004
            MPN: 4H0611743
            GROMMET
            from £6.75
            from £6.75
            # 005
            MPN: 4M0611931BG
            VACUUM HOSE WITH NON-RETURN VALVE
            from £44.36
            from £44.36
            # 006
            MPN: 8S0611797B
            CLIP
            RHD (UK spec vehicles)
            from £2.24
            from £2.24
            # 007
            -
            Brake Servo
            # 008
            MPN: 8W0612797
            CLIP
            from £2.77
            from £2.77
            # 009
            MPN: 4M0612797
            MOUNTING CLIP
            from £1.51
            from £1.51
