lamborghini urus (2020) brake servo parts diagram

612.01.00 - Brake Servo

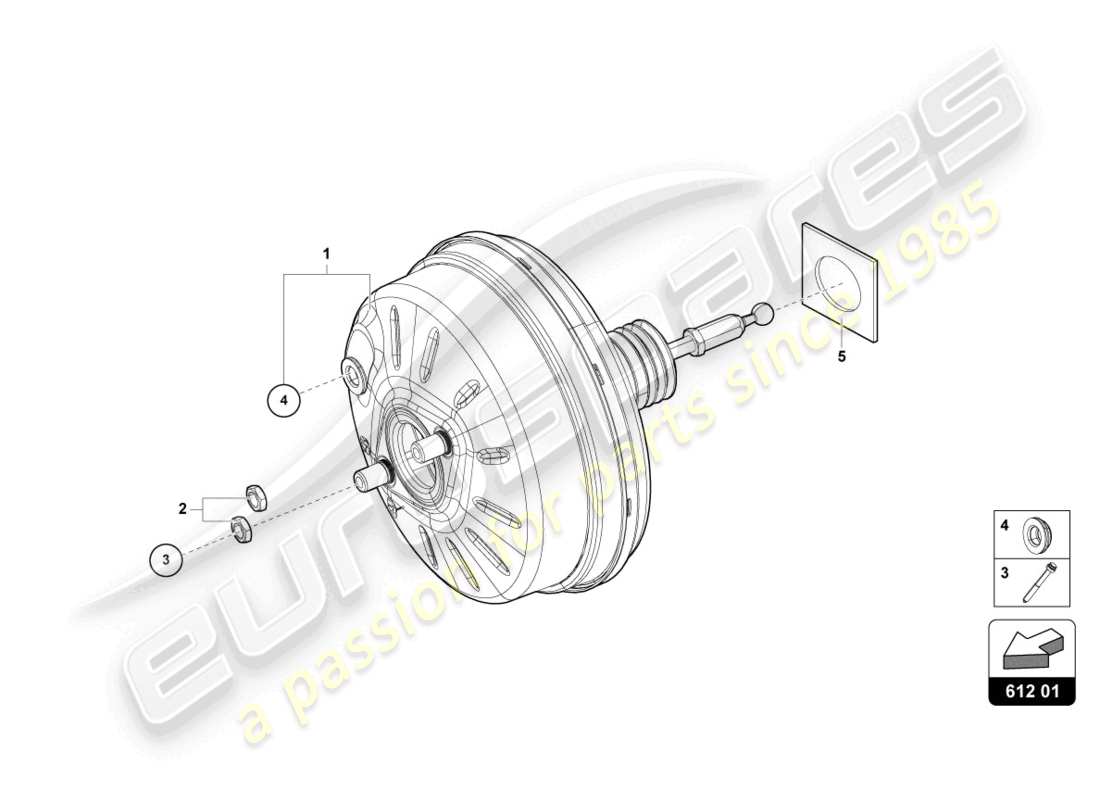

Lamborghini Urus (2020) BRAKE SERVO Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 9Y0612103F
      Brake Servo
      (EUROPE, UK, USA spec vehicles)
      from £396.88
      from £396.88
      # 002
      -
      1 SET ATTACHMENT PARTS
      # 003
      -
      12-POINT HEAD BOLT
      # 004
      MPN: 861612175
      SEAL
      from £10.56
      from £10.56
      # 005
      MPN: 4G0612161
      SEAL
      from £6.06
      from £6.06
