lamborghini urus (2020) vent rear center parts diagram

819.02.00 - VENT REAR CENTER

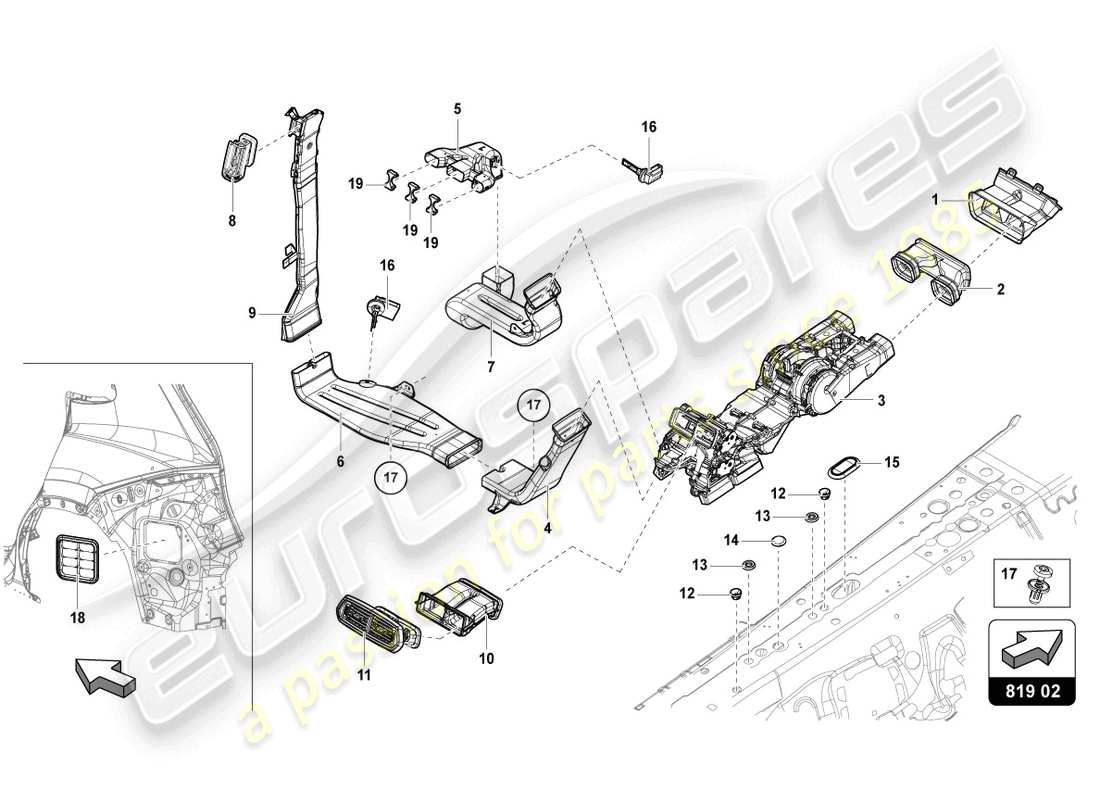

Lamborghini Urus (2020) VENT REAR CENTER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 4M0857042A
                  INTERMEDIATE PLATE FOR AIR DISTRIBUTION HOUSING
                  CLIMATRONIC IN FRONT, AND MULTI- ZONE CONTROLS IN THE REAR-LOWER
                  from £12.03
                  from £12.03
                  # 003
                  MPN: 4M0819351A
                  AIR DISTRIBUTION HOUSING
                  rear
                  from £264.41
                  from £264.41
                  # 004
                  MPN: 4M0819805B
                  AIR GUIDE
                  LEFT
                  from £14.79
                  from £14.79
                  # 004
                  MPN: 4M0819806A
                  AIR GUIDE
                  RIGHT
                  from £14.79
                  from £14.79
                  # 006
                  MPN: 4M0819811D
                  AIR GUIDE
                  LEFT
                  from £12.77
                  from £12.77
                  # 006
                  MPN: 4M0819812D
                  AIR GUIDE
                  RIGHT
                  from £12.77
                  from £12.77
                  # 007
                  MPN: 4M0819804C
                  AIR GUIDE
                  VALID UNTIL VIN LA16240-RIGHT
                  from £14.79
                  from £14.79
                  # 008
                  MPN: 4G0819209D6PS
                  VENT
                  LEFT-SOUL (BLACK)
                  from £30.00
                  from £30.00
                  # 008
                  MPN: 4G0819209D7AP
                  VENT
                  ELPIS - LEFT-TOFFEE BROWN
                  # 008
                  MPN: 4G0819210D6PS
                  VENT
                  RIGHT-SOUL (BLACK)
                  from £19.09
                  from £19.09
                  # 008
                  MPN: 4G0819210D7AP
                  VENT
                  ELPIS - RIGHT-TOFFEE BROWN
                  # 009
                  MPN: 4ML819725
                  AIR GUIDE
                  LEFT
                  from £68.00
                  from £68.00
                  # 009
                  MPN: 4ML819726
                  AIR GUIDE
                  RIGHT
                  from £68.00
                  from £68.00
                  # 010
                  MPN: 4ML815217
                  AIR GUIDE
                  rear
                  from £43.51
                  from £43.51
                  # 011
                  MPN: 4ML8192036PS
                  VENT
                  REAR-BLACK
                  from £129.83
                  from £129.83
                  # 011
                  MPN: 4ML819203A
                  VENT
                  AIR VENTS IN CARBON TWILL-REAR
                  from £1,085.13
                  from £1,085.13
                  # 012
                  MPN: 4H0862234
                  PUSH-ON CONNECTOR
                  from £2.68
                  from £2.68
                  # 014
                  MPN: 4H0819425
                  COVER CAP
                  from £2.21
                  from £2.21
                  # 015
                  MPN: 4M0819598
                  BUNGS
                  from £5.75
                  from £5.75
                  # 016
                  MPN: 3D0907543A
                  TEMPERATURE SENSOR
                  from £14.79
                  from £14.79
                  # 017
                  MPN: 4F0857784
                  SPREADER RIVET
                  from £0.53
                  from £0.53
                  # 018
                  MPN: 4M0819181B
                  VENT TRIM
                  from £8.59
                  from £8.59
