maserati grancabrio mc (2013) lines parts diagram

04.20.2 - lines

Maserati GranCabrio MC (2013) LINES Parts Diagram

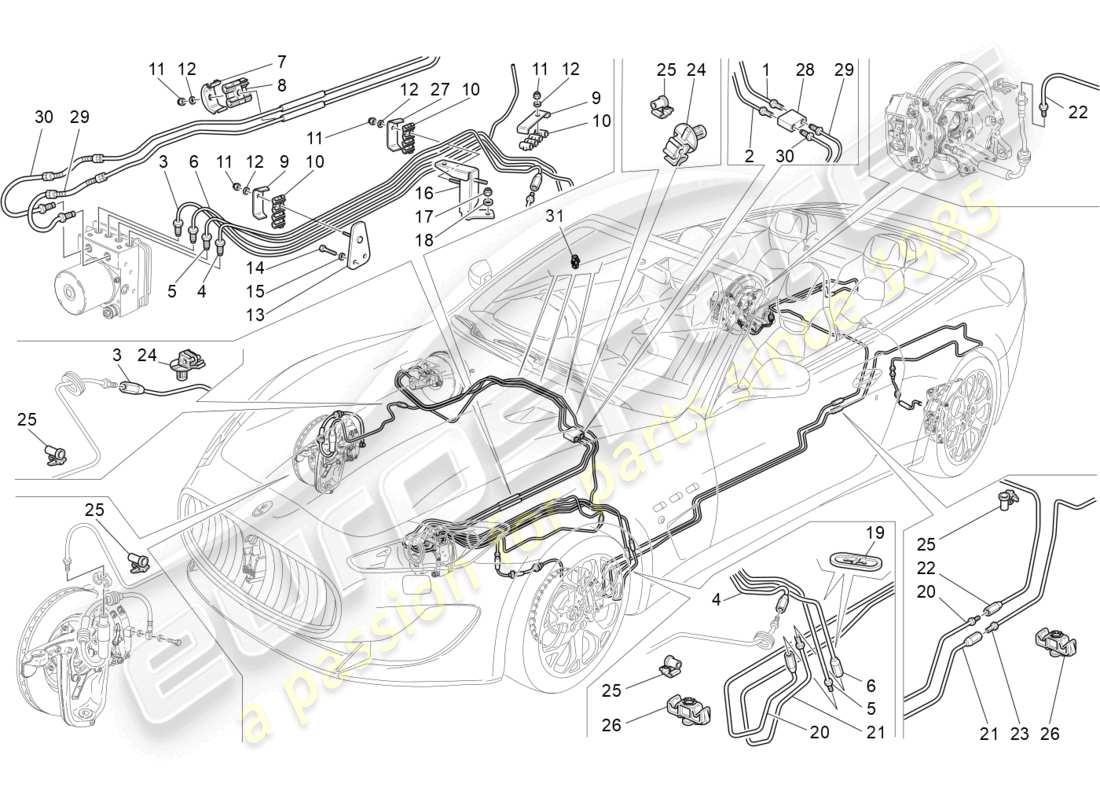

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 258721
RIGID PIPE FROM PUMP TO UNION (MC1)
Suitable for: AUSTRALIA, UK
from £66.95
from £66.95
RIGID PIPE FROM PUMP TO UNION Genuine Maserati Part - New (to order)
RIGID PIPE FROM PUMP TO UNION Genuine Maserati Part - Used In stock
# 002
MPN: 258722
RIGID PIPE FROM PUMP TO UNION (MC2)
Suitable for: AUSTRALIA, UK
from £66.95
from £66.95
RIGID PIPE FROM PUMP TO UNION Genuine Maserati Part - New (to order)
RIGID PIPE FROM PUMP TO UNION Genuine Maserati Part - Used In stock
# 003
MPN: 258720
RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION
Suitable for: AUSTRALIA, UK
from £48.09
from £48.09
RIGID PIPE FROM CONTROL UNIT TO R Genuine Maserati Part - New (to order)
# 004
MPN: 252240
RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION
Suitable for: AUSTRALIA, UK
from £16.14
from £16.14
RIGID PIPE FROM CONTROL UNIT TO L Genuine Maserati Part - New (to order)
# 005
MPN: 207436
RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE
Suitable for: AUSTRALIA, UK
from £11.95
from £11.95
RIGID PIPE FROM C.U.TO RH INTERM Genuine Maserati Part - New (to order)
# 006
MPN: 207437
RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE
Suitable for: AUSTRALIA, UK
from £11.95
from £11.95
RIGID PIPE FROM C.U.TO LH INTERM Genuine Maserati Part - New (to order)
# 007
MPN: 193722
CLIP U-BOLT
Suitable for: AUSTRALIA, UK
from £6.55
from £6.55
RETAINER. Genuine Maserati Part - New (to order)
# 008
MPN: 192275
CLIP
Suitable for: AUSTRALIA, UK
from £2.92
from £2.92
CLIP. Genuine Maserati Part - New (to order)
# 008
MPN: 263269
CLIP
Suitable for: AUSTRALIA, UK
from £2.92
from £2.92
This part replaces part number 255406
DOUBLE CLIP D=8MM Genuine Maserati Part - New (to order)
# 009
MPN: 200288
CLIP U-BOLT
Suitable for: AUSTRALIA, UK
from £6.95
from £6.95
This part replaces part number 193721
RETAINER. Genuine Maserati Part - New (to order)
# 010
MPN: 192276
CLIP
Suitable for: AUSTRALIA, UK
from £2.92
from £2.92
CLIP. Genuine Maserati Part - New (to order)
# 011
MPN: 14075611
NUT
Suitable for: AUSTRALIA, UK
from £1.35
from £1.35
NUT FOR FUEL DOOR STRIKER Genuine Maserati Part - New (to order)
# 012
MPN: 12637824
WASHER
Suitable for: AUSTRALIA, UK
from £0.47
from £0.47
WASHER (12637824) Genuine Ferrari Part - New In stock
WASHER FOR CENTER CONSOLE Genuine Maserati Part - New (to order)
# 013
MPN: 203822
BRACKET
Suitable for: AUSTRALIA, UK
from £6.08
from £6.08
RH GASKET (20-38-22) Genuine Ferrari Part - New (to order)
BRACKET. Genuine Maserati Part - New (to order)
# 014
MPN: 10977624
SCREW
Suitable for: AUSTRALIA, UK
from £0.47
from £0.47
SCREW (10977624) Genuine Ferrari Part - New In stock
SCREW FOR GEARBOX OIL FIL Genuine Maserati Part - New (to order)
# 015
MPN: 12637824
WASHER
Suitable for: AUSTRALIA, UK
from £0.47
from £0.47
WASHER (12637824) Genuine Ferrari Part - New In stock
WASHER FOR CENTER CONSOLE Genuine Maserati Part - New (to order)
# 016
MPN: 204366
BRACKET
Suitable for: AUSTRALIA, UK
from £27.56
from £27.56
BRACKET Genuine Maserati Part - New (to order)
# 017
MPN: 16100814
NUT
Suitable for: AUSTRALIA, UK
from £0.71
from £0.71
Genuine Ferrari Part (no longer available to order)
NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
# 018
MPN: 14496524
WASHER [D. 8.40-17 X1.6]
Suitable for: AUSTRALIA, UK
from £0.47
from £0.47
WASHER (14496524) Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 019
MPN: 221727
WATER PIPE GASKET
Suitable for: AUSTRALIA, UK
from £4.26
from £4.26
GASKET Genuine Maserati Part - New (to order)
# 020
MPN: 207440
RH INTERMEDIATE RIGID PIPE
Suitable for: AUSTRALIA, UK
from £41.68
from £41.68
RH INTERMEDIATE RIGID PIPE Genuine Maserati Part - New (to order)
# 021
MPN: 207441
LH INTERMEDIATE RIGID PIPE
Suitable for: AUSTRALIA, UK
from £44.93
from £44.93
LH INTERMEDIATE RIGID PIPE Genuine Maserati Part - New (to order)
# 022
MPN: 227265
RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
Suitable for: AUSTRALIA, UK
from £29.66
from £29.66
RIGID PIPE FROM RH INTERM.PIPE T Genuine Maserati Part - New (to order)
# 023
MPN: 194857
RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL
Suitable for: AUSTRALIA, UK
from £88.33
from £88.33
RIGID PIPE FROM INTERM.PIPE TO L. Genuine Maserati Part - New (to order)
# 024
MPN: 192277
CLIP
Suitable for: AUSTRALIA, UK
from £1.58
from £1.58
CLIP. Genuine Maserati Part - New (to order)
# 024
MPN: 279840
CLIP
Suitable for: AUSTRALIA, UK
from £1.97
from £1.97
CLIP Genuine Maserati Part - New (to order)
# 025
MPN: 192279
CLIP
Suitable for: AUSTRALIA, UK
from £1.10
from £1.10
CLIP. Genuine Maserati Part - New (to order)
# 026
MPN: 192278
CLIP
Suitable for: AUSTRALIA, UK
from £1.10
from £1.10
CLIP. Genuine Maserati Part - New (to order)
# 027
MPN: 200288
CLIP U-BOLT
Suitable for: AUSTRALIA, UK
from £6.95
from £6.95
This part replaces part number 193721
RETAINER. Genuine Maserati Part - New (to order)
# 028
MPN: 208035
UNION
Suitable for: AUSTRALIA, UK
from £34.93
from £34.93
UNION Genuine Maserati Part - New (to order)
UNION Genuine Maserati Part - Used In stock
# 029
MPN: 234950
RIGID PIPE FROM UNION TO CONTROL UNIT (MC1)
Suitable for: AUSTRALIA, UK
from £52.11
from £52.11
RIGID PIPE FROM UNION TO CONTROL Genuine Maserati Part - New (to order)
RIGID PIPE FROM UNION TO CONTROL Genuine Maserati Part - Used In stock
# 030
MPN: 234948
RIGID PIPE FROM UNION TO CONTROL UNIT (MC2)
Suitable for: AUSTRALIA, UK
from £52.11
from £52.11
RIGID PIPE FROM UNION TO CONTROL Genuine Maserati Part - New (to order)
RIGID PIPE FROM UNION TO CONTROL Genuine Maserati Part - Used In stock
# 031
MPN: 186950
CLIP
Suitable for: AUSTRALIA, UK
from £0.71
from £0.71
CLIP (186950) Genuine Ferrari Part - New (to order)
CLIP Genuine Maserati Part - New (to order)
