06.20.1 - Rear Suspension

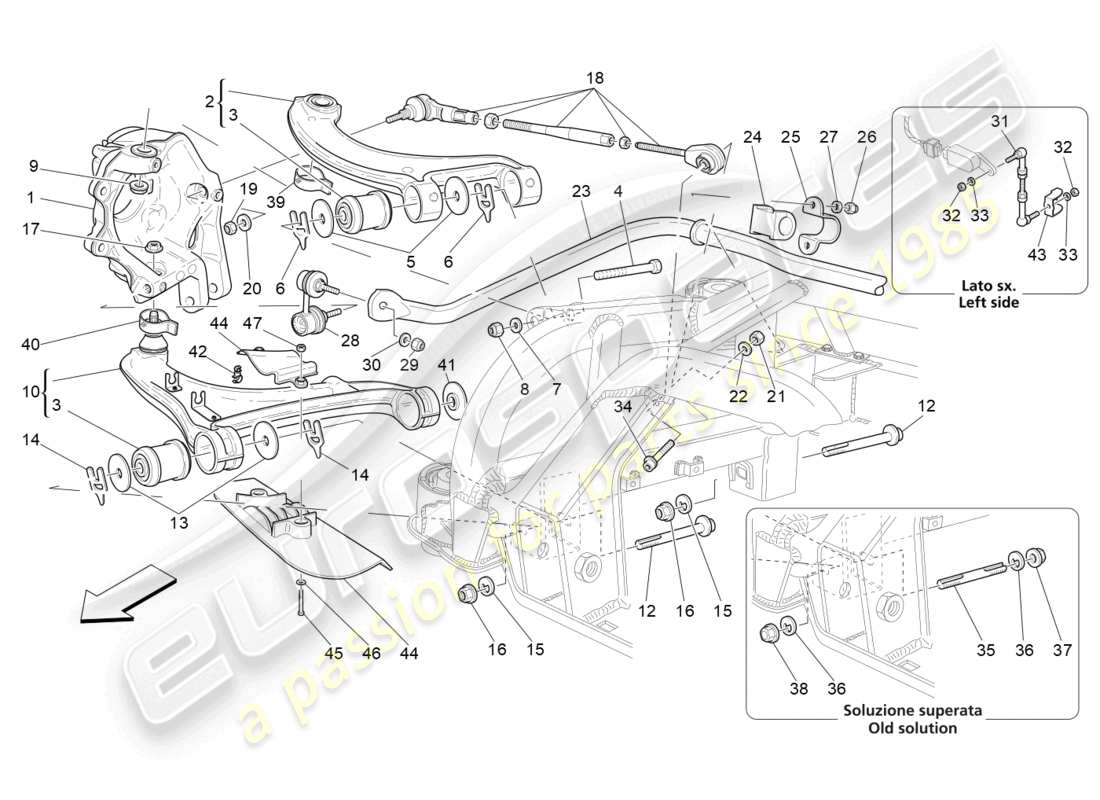

Maserati GranCabrio MC (2013) REAR SUSPENSION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Key
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: 980139916
                                                                                            RH REAR SUSPENSION KIT
                                                                                            from £841.85
                                                                                            from £841.85
                                                                                            This part replaces part number 900027751
                                                                                            RH REAR SUSPENSION KIT Genuine Maserati Part - New In stock
                                                                                            # 000
                                                                                            MPN: 980139918
                                                                                            LH REAR SUSPENSION KIT
                                                                                            from £126.00
                                                                                            from £126.00
                                                                                            This part replaces part number 900027752 - and 1 more. Click to view details
                                                                                            LH REAR SUSPENSION KIT M139/M145-M Genuine Maserati Part - New (to order)
                                                                                            LH REAR SUSPENSION KIT M139/M145-M Genuine Maserati Part - Used In stock
                                                                                            Upper arm only
                                                                                            # 001
                                                                                            -
                                                                                            LH REAR HUB HOLDER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                                                            # 001
                                                                                            -
                                                                                            RH REAR HUB HOLDER ASSEMBLY #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                                                            # 002
                                                                                            -
                                                                                            COMPLETE LH REAR UPPER LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                                                            # 002
                                                                                            -
                                                                                            COMPLETE RH REAR UPPER LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                                                            # 003
                                                                                            MPN: 980139890
                                                                                            REAR SUSPENSION BUSHING KIT
                                                                                            from £184.52
                                                                                            from £184.52
                                                                                            This part replaces part number 208703 - and 1 more. Click to view details
                                                                                            Silent Block Kit Rear Suspension Genuine Maserati Part - New In stock
                                                                                            # 004
                                                                                            MPN: 15541334
                                                                                            SCREW
                                                                                            from £3.24
                                                                                            from £3.24
                                                                                            SCREW. Genuine Maserati Part - New In stock
                                                                                            # 005
                                                                                            MPN: 194444
                                                                                            WASHER
                                                                                            from £1.89
                                                                                            from £1.89
                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                            # 006
                                                                                            MPN: 198043
                                                                                            SPACER #THICKNESS MM. 0,50#
                                                                                            from £3.24
                                                                                            from £3.24
                                                                                            SPACER -THICKNESS MM.0,50- Genuine Maserati Part - New In stock
                                                                                            # 006
                                                                                            MPN: 198044
                                                                                            SPACER #THICKNESS MM. 0,75#
                                                                                            from £3.16
                                                                                            from £3.16
                                                                                            SPACER -THICKNESS MM.0.75- Genuine Maserati Part - New In stock
                                                                                            # 006
                                                                                            MPN: 198045
                                                                                            SPACER #THICKNESS MM. 1,00#
                                                                                            from £3.07
                                                                                            from £3.07
                                                                                            SPACER -THICKNESS MM.1.00- Genuine Maserati Part - New (to order)
                                                                                            # 006
                                                                                            MPN: 198046
                                                                                            SPACER #THICKNESS MM. 1,75#
                                                                                            from £2.45
                                                                                            from £2.45
                                                                                            SPACER -THICKNESS MM.1,75- Genuine Maserati Part - New (to order)
                                                                                            # 006
                                                                                            MPN: 198047
                                                                                            SPACER #THICKNESS MM. 3,00#
                                                                                            from £2.45
                                                                                            from £2.45
                                                                                            SPACER -THICKNESS MM.3,00- Genuine Maserati Part - New (to order)
                                                                                            # 007
                                                                                            MPN: 14496721
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            WASHER (14496721) Genuine Ferrari Part - New In stock
                                                                                            SPLIT WASHER D. 13 -24X2 Genuine Maserati Part - New (to order)
                                                                                            # 008
                                                                                            MPN: 102825
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 15506221
                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                            NUT. Genuine Maserati Part - New In stock
                                                                                            # 009
                                                                                            MPN: 245240
                                                                                            NUT
                                                                                            from £4.07
                                                                                            from £4.07
                                                                                            NUT WITH WASHER (245240) Genuine Ferrari Part - New (to order)
                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                            # 010
                                                                                            -
                                                                                            COMPLETE LH FRONT REAR LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                                                            # 010
                                                                                            -
                                                                                            COMPLETE RH REAR LOWER LEVER #CODE IS NOT AVAILABLE SEPARATELY, ORDER CODE COMPLETE SUSPENSION KIT#
                                                                                            # 012
                                                                                            MPN: 260766
                                                                                            ECCENTRIC SCREW
                                                                                            from £16.46
                                                                                            from £16.46
                                                                                            SCREW WITH ECCENTRIC M14X1.5 Genuine Maserati Part - New (to order)
                                                                                            SCREW WITH ECCENTRIC M14X1.5 Genuine Maserati Part - Used In stock
                                                                                            # 013
                                                                                            MPN: 194445
                                                                                            WASHER
                                                                                            from £2.37
                                                                                            from £2.37
                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: 198038
                                                                                            SPACER #THICKNESS MM. 0,50#
                                                                                            from £3.24
                                                                                            from £3.24
                                                                                            SPACER -THICKNESS MM.0.50- Genuine Maserati Part - New In stock
                                                                                            # 014
                                                                                            MPN: 198039
                                                                                            SPACER #THICKNESS MM. 0,75#
                                                                                            from £3.16
                                                                                            from £3.16
                                                                                            SPACER -THICKNESS MM.0.75- Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: 198040
                                                                                            SPACER #THICKNESS MM. 1,00#
                                                                                            from £3.07
                                                                                            from £3.07
                                                                                            SPACER -THICKNESS MM.1,00- Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: 198041
                                                                                            SPACER #THICKNESS MM. 1,75#
                                                                                            from £2.53
                                                                                            from £2.53
                                                                                            SPACER -THICKNESS MM.1,75- Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: 198042
                                                                                            SPACER #THICKNESS MM. 3,00#
                                                                                            from £3.40
                                                                                            from £3.40
                                                                                            SPACER -THICKNESS MM.3.00- Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: 295191
                                                                                            SPACER #THICKNESS MM. 1,25#
                                                                                            from £2.53
                                                                                            from £2.53
                                                                                            SHIM 1.25mm Genuine Maserati Part - New (to order)
                                                                                            # 015
                                                                                            MPN: 240877
                                                                                            WASHER
                                                                                            from £3.96
                                                                                            from £3.96
                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                            # 016
                                                                                            MPN: 203795
                                                                                            NUT
                                                                                            from £1.24
                                                                                            from £1.24
                                                                                            This part replaces part number 183417 - and 1 more. Click to view details
                                                                                            NUT (203795) Genuine Ferrari Part - New In stock
                                                                                            NUT. Genuine Maserati Part - New In stock
                                                                                            # 017
                                                                                            MPN: 245240
                                                                                            NUT
                                                                                            from £4.07
                                                                                            from £4.07
                                                                                            NUT WITH WASHER (245240) Genuine Ferrari Part - New (to order)
                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                            # 017
                                                                                            MPN: 247308
                                                                                            NUT FOR SUSPENSION LEVER ADJUSTING #USE ONLY PRETIGHTENING#
                                                                                            from £7.66
                                                                                            from £7.66
                                                                                            NUT FOR SUSPENSION LEVER ADJUSTIN Genuine Maserati Part - New (to order)
                                                                                            # 018
                                                                                            MPN: 276636
                                                                                            TIE-ROD FOR TOE-IN ADJUSTMENT
                                                                                            from £175.10
                                                                                            from £175.10
                                                                                            This part replaces part number 262362
                                                                                            CONVERGENCY REGOLATION TIE ROD (276636) Eurospares Approved Part - New In stock
                                                                                            Convergency Regolation Tie Rod Genuine Maserati Part - New (to order)
                                                                                            # 019
                                                                                            MPN: 203657
                                                                                            NUT
                                                                                            from £1.35
                                                                                            from £1.35
                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                            NUT. Genuine Maserati Part - New In stock
                                                                                            # 020
                                                                                            MPN: 12626224
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            WASHER (12626224) Genuine Ferrari Part - New In stock
                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                            # 021
                                                                                            MPN: 203657
                                                                                            NUT
                                                                                            from £1.35
                                                                                            from £1.35
                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                            NUT. Genuine Maserati Part - New In stock
                                                                                            # 022
                                                                                            MPN: 12626224
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            WASHER (12626224) Genuine Ferrari Part - New In stock
                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                            # 023
                                                                                            MPN: 216711
                                                                                            REAR STABILIZER BAR #D=21#
                                                                                            from £91.27
                                                                                            from £91.27
                                                                                            Rear Anti-Roll Bar Genuine Maserati Part - New (to order)
                                                                                            Rear Anti-Roll Bar Genuine Maserati Part - Used In stock
                                                                                            # 023
                                                                                            MPN: 244020
                                                                                            REAR STABILIZER BAR #D=20#
                                                                                            Suitable for cars with: Skyhook System.
                                                                                            from £148.87
                                                                                            from £148.87
                                                                                            Rear Anti-Roll Bar Genuine Maserati Part - New (to order)
                                                                                            # 024
                                                                                            MPN: 216731
                                                                                            BAR BUFFER #D=21#
                                                                                            from £9.28
                                                                                            from £9.28
                                                                                            BAR BUFFER Genuine Maserati Part - New (to order)
                                                                                            # 024
                                                                                            MPN: 244021
                                                                                            BAR BUFFER #D=20#
                                                                                            Suitable for cars with: Skyhook System.
                                                                                            from £10.60
                                                                                            from £10.60
                                                                                            BAR BUFFER Genuine Maserati Part - New In stock
                                                                                            # 025
                                                                                            MPN: 191221
                                                                                            PAD FASTENING PLATE
                                                                                            from £25.58
                                                                                            from £25.58
                                                                                            PAD FASTENING PLATE. Genuine Maserati Part - New (to order)
                                                                                            # 026
                                                                                            MPN: 104030
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            NUT (104030) Genuine Ferrari Part - New In stock
                                                                                            DADO E NYLON STOP M 8X9,5 Genuine Maserati Part - New (to order)
                                                                                            # 027
                                                                                            MPN: 14496524
                                                                                            WASHER [D. 8.40-17 X1.6]
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            WASHER (14496524) Genuine Ferrari Part - New In stock
                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                            # 028
                                                                                            MPN: 259572
                                                                                            BALL TIE ROD #LH SIDE#
                                                                                            from £52.76
                                                                                            from £52.76
                                                                                            This part replaces part number 162619
                                                                                            LH BALL TIE ROD (259572) Genuine Ferrari Part - New In stock
                                                                                            BALL TIE ROD Genuine Maserati Part - New In stock
                                                                                            # 028
                                                                                            MPN: 259573
                                                                                            BALL TIE ROD #RH SIDE#
                                                                                            from £48.46
                                                                                            from £48.46
                                                                                            This part replaces part number 162620 which we have in stock
                                                                                            BALL TIE ROD Genuine Maserati Part - New In stock
                                                                                            # 029
                                                                                            MPN: 102742
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            NUT (102742) Genuine Ferrari Part - New In stock
                                                                                            DADO E NYLON STOP M 10X1.25X Genuine Maserati Part - New In stock
                                                                                            # 030
                                                                                            MPN: 12601474
                                                                                            WASHER [D.10,50-21X 1,0]
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            WASHER (12601474) Genuine Ferrari Part - New In stock
                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                            # 031
                                                                                            MPN: 228958
                                                                                            TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
                                                                                            from £35.48
                                                                                            from £35.48
                                                                                            TIE ROD FOR LIGHT ADJUSTING POTEN Genuine Maserati Part - New (to order)
                                                                                            # 032
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12575421
                                                                                            NUT (102741) Genuine Ferrari Part - New In stock
                                                                                            NUT Genuine Maserati Part - New In stock
                                                                                            # 033
                                                                                            MPN: 14498824
                                                                                            WASHER [D.6.4-16.3X1]
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            WASHER (14498824) Genuine Ferrari Part - New In stock
                                                                                            WASHER. Genuine Maserati Part - New (to order)
                                                                                            # 035
                                                                                            MPN: 204008
                                                                                            STUD
                                                                                            from £36.64
                                                                                            from £36.64
                                                                                            CENTRAL PADDING (20-40-08) Genuine Ferrari Part - New (to order)
                                                                                            STUD. Genuine Maserati Part - New (to order)
                                                                                            # 036
                                                                                            MPN: 240877
                                                                                            WASHER
                                                                                            from £3.96
                                                                                            from £3.96
                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                            # 037
                                                                                            MPN: 203795
                                                                                            NUT
                                                                                            from £1.31
                                                                                            from £1.31
                                                                                            This part replaces part number 183417 - and 1 more. Click to view details
                                                                                            NUT (203795) Genuine Ferrari Part - New In stock
                                                                                            NUT. Genuine Maserati Part - New In stock
                                                                                            # 038
                                                                                            MPN: 204010
                                                                                            NUT
                                                                                            from £4.19
                                                                                            from £4.19
                                                                                            LH PADDING (20-40-10) Genuine Ferrari Part - New (to order)
                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                            # 039
                                                                                            MPN: 386600416
                                                                                            JOINT PROTECTION
                                                                                            from £3.71
                                                                                            from £3.71
                                                                                            PROTEZIONE SUP SNODO SFERICO Genuine Maserati Part - New In stock
                                                                                            # 040
                                                                                            MPN: 386600416
                                                                                            JOINT PROTECTION
                                                                                            from £3.71
                                                                                            from £3.71
                                                                                            PROTEZIONE SUP SNODO SFERICO Genuine Maserati Part - New In stock
                                                                                            # 041
                                                                                            MPN: 222203
                                                                                            SPACER
                                                                                            from £13.75
                                                                                            from £13.75
                                                                                            SPACER Genuine Maserati Part - New (to order)
                                                                                            # 042
                                                                                            MPN: 150738
                                                                                            CLIP
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            CLIP (150738) Genuine Ferrari Part - New In stock
                                                                                            SPRING. Genuine Maserati Part - New In stock
                                                                                            # 043
                                                                                            MPN: 231274
                                                                                            BRACKET
                                                                                            from £6.95
                                                                                            from £6.95
                                                                                            BRACKET Genuine Maserati Part - New (to order)
                                                                                            # 044
                                                                                            MPN: 206881
                                                                                            AIR CHANGE-OVER SWITCH FOR LH REAR LOWER LEVER
                                                                                            from £17.05
                                                                                            from £17.05
                                                                                            LH AIR CHANGE-OVER SWITCH FOR RE Genuine Maserati Part - New (to order)
                                                                                            # 044
                                                                                            MPN: 206882
                                                                                            AIR CHANGE-OVER SWITCH FOR RH REAR LOWER LEVER
                                                                                            from £17.05
                                                                                            from £17.05
                                                                                            RH AIR CHANGE-OVER SWITCH FOR RE Genuine Maserati Part - New (to order)
                                                                                            # 045
                                                                                            MPN: 14064414
                                                                                            SCREW
                                                                                            from £1.35
                                                                                            from £1.35
                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                            # 046
                                                                                            MPN: 14498804
                                                                                            WASHER [D. 6,40-16.3 X1]
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                            WASHER. Genuine Maserati Part - New In stock
