maserati mc20 (2022) thermal insulating panels parts diagram

09.63.1 - thermal insulating panels

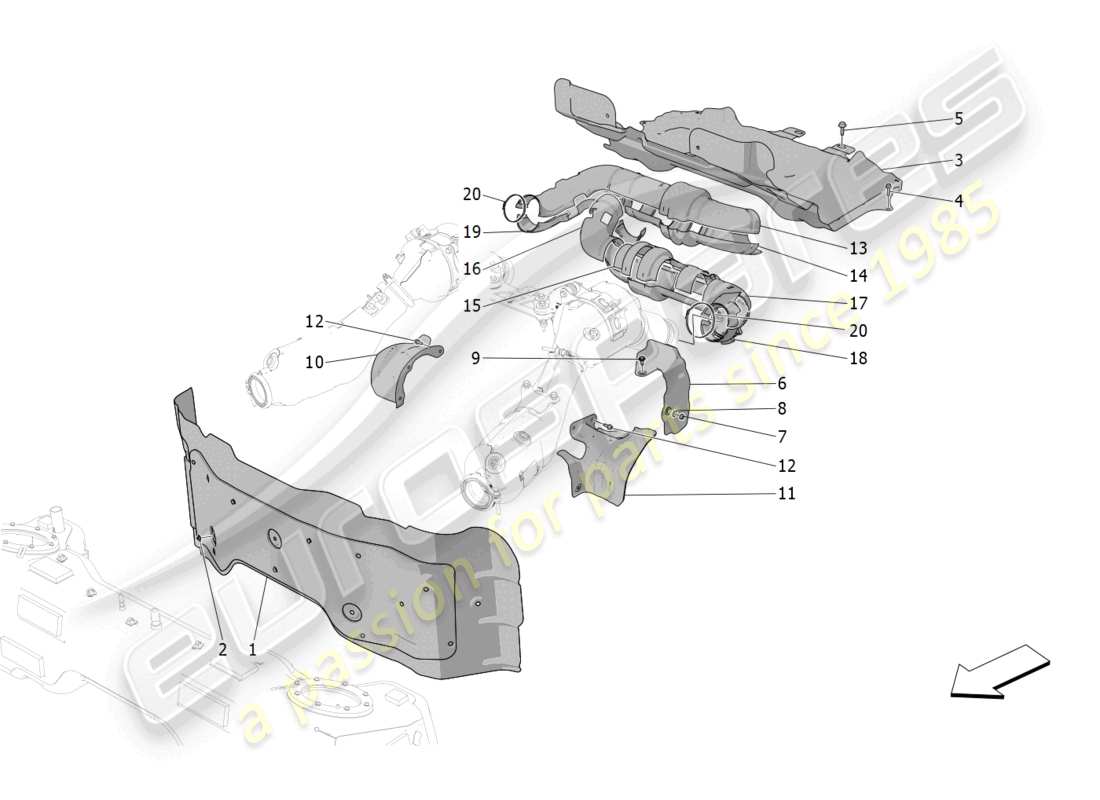

Maserati MC20 (2022) THERMAL INSULATING PANELS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 670156485
                                        TANK HEAT SHIELD
                                        from £135.98
                                        from £135.98
                                        RIPARO CALORE SERB.COMBUSTIB Genuine Maserati Part - New (to order)
                                        # 002
                                        MPN: 670003758
                                        FASTENER BUTTON
                                        from £1.89
                                        from £1.89
                                        BOTTONE DI FISSAGGIO RIPARO Genuine Maserati Part - New (to order)
                                        # 003
                                        MPN: 670181326
                                        SILENCER HEAT SHIELD
                                        Valid from assembly: 0 - 7000403.
                                        from £144.55
                                        from £144.55
                                        RIPARO SILENZIATORE DI SCARI Genuine Maserati Part - New (to order)
                                        # 003
                                        MPN: 670218891
                                        SILENCER HEAT SHIELD
                                        Valid from assembly: 7000404.
                                        from £144.55
                                        from £144.55
                                        SILENCER HEAT SHIELD Genuine Maserati Part - New (to order)
                                        # 004
                                        MPN: 675000278
                                        SCREW [M6X25]
                                        from £1.26
                                        from £1.26
                                        VITE TE FLANG.NORM.M6X25 Genuine Maserati Part - New (to order)
                                        # 005
                                        MPN: 675001245
                                        SCREW
                                        from £1.66
                                        from £1.66
                                        VITE TE FL.LARGA M.AUTO. M8X Genuine Maserati Part - New (to order)
                                        # 006
                                        MPN: 670160119
                                        GEARBOX HEAT REPAIR
                                        from £29.78
                                        from £29.78
                                        GEARBOX HEAT SHELTER Genuine Maserati Part - New (to order)
                                        # 007
                                        MPN: 670175152
                                        NUT
                                        from £2.22
                                        from £2.22
                                        DADO ES. M6 Genuine Maserati Part - New (to order)
                                        # 008
                                        MPN: 670175146
                                        WASHER
                                        from £1.66
                                        from £1.66
                                        This part replaces part number 670302664
                                        WASHER WASHER Genuine Maserati Part - New (to order)
                                        # 009
                                        MPN: 670175147
                                        SCREW
                                        from £4.42
                                        from £4.42
                                        VITE TE FL. M6X18 Genuine Maserati Part - New (to order)
                                        # 010
                                        MPN: 670160342
                                        RH AXLE SHAFT SHIELD
                                        from £28.77
                                        from £28.77
                                        RH AXLE SHAFT SHIELD Genuine Maserati Part - New (to order)
                                        # 011
                                        MPN: 670160344
                                        LH AXLE SHAFT SHIELD
                                        from £31.51
                                        from £31.51
                                        LH AXLE SHAFT SHIELD Genuine Maserati Part - New (to order)
                                        # 012
                                        MPN: 675001384
                                        SCREW
                                        from £1.43
                                        from £1.43
                                        VITE TC M6X20 Genuine Maserati Part - New (to order)
                                        # 013
                                        MPN: 670213181
                                        HEAT SHIELD
                                        from £36.17
                                        from £36.17
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 014
                                        MPN: 670213182
                                        HEAT SHIELD
                                        from £31.66
                                        from £31.66
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 015
                                        MPN: 670213184
                                        HEAT SHIELD
                                        from £31.66
                                        from £31.66
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 016
                                        MPN: 670213185
                                        HEAT SHIELD
                                        from £31.66
                                        from £31.66
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 017
                                        MPN: 670213186
                                        HEAT SHIELD
                                        from £31.66
                                        from £31.66
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 018
                                        MPN: 670213187
                                        HEAT SHIELD
                                        from £36.17
                                        from £36.17
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 019
                                        MPN: 670213183
                                        HEAT SHIELD
                                        from £31.66
                                        from £31.66
                                        RIPARO CALORE Genuine Maserati Part - New (to order)
                                        # 020
                                        MPN: 670213178
                                        CLAMP
                                        from £3.71
                                        from £3.71
                                        FASCETTA Genuine Maserati Part - New (to order)
