520 - COMPLETE PEDAL SUPPORT

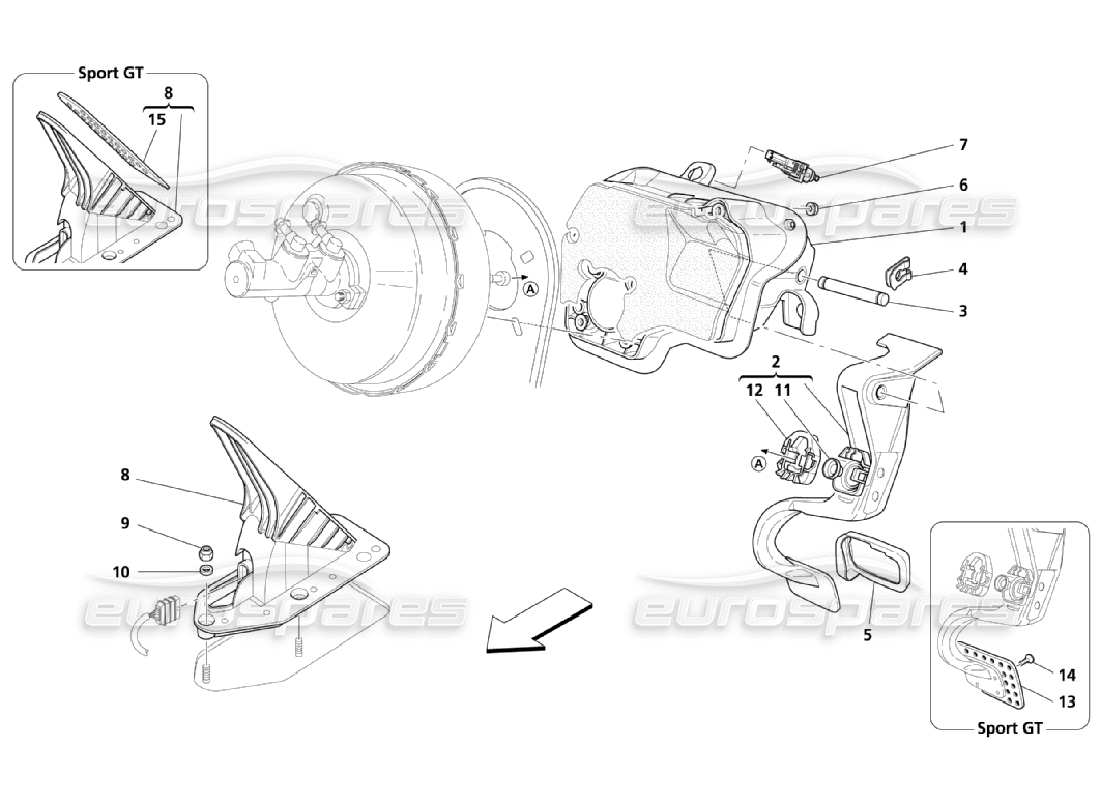

Maserati QTP. (2006) 4.2 Complete Pedal Support Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 189858
                    PEDAL SUPPORT
                    Not for GD
                    from £123.06
                    from £123.06
                    # 001
                    MPN: 204192
                    PEDAL SUPPORT
                    Valid for GD
                    from £196.83
                    from £196.83
                    # 002
                    MPN: 980139006
                    COMPLETE BRAKE PEDAL
                    Standard Version - Not for GD
                    Supersession
                    Supersession
                    This part replaces part number 192114
                    # 002
                    MPN: 980139007
                    COMPLETE BRAKE PEDAL
                    Standard Version - Valid for GD
                    from £1,989.16
                    from £1,989.16
                    # 002
                    MPN: 980139061
                    COMPLETE BRAKE PEDAL
                    Version Sport GT - Not for GD
                    from £586.67
                    from £586.67
                    # 002
                    MPN: 980139062
                    COMPLETE BRAKE PEDAL
                    Version Sport GT - Valid for GD
                    from £699.09
                    from £699.09
                    # 003
                    MPN: 189870
                    PIN
                    from £46.39
                    from £46.39
                    # 004
                    MPN: 11064471
                    RETAINER
                    from £11.13
                    from £11.13
                    # 005
                    MPN: 246126
                    BRAKE PEDAL COVER
                    from £16.86
                    from £16.86
                    This part replaces part number 197659
                    # 006
                    MPN: 12578211
                    NUT
                    from £0.53
                    from £0.53
                    # 007
                    MPN: 201957
                    PUSH-BUTTON SWITCH
                    from £13.11
                    from £13.11
                    This part replaces part number 187869
                    # 008
                    MPN: 196819
                    COMPLETE ACCELERATOR PEDAL
                    Standard Version
                    from £198.94
                    from £198.94
                    # 008
                    MPN: 222836
                    COMPLETE ACCELERATOR PEDAL
                    Version Sport GT
                    Supersession
                    Supersession
                    # 009
                    MPN: 102741
                    NUT
                    from £0.52
                    from £0.52
                    This part replaces part number 12575421
                    # 010
                    MPN: 12601274
                    WASHER
                    from £0.53
                    from £0.53
                    This part replaces part number 12601270
                    # 011
                    MPN: 189864
                    CUP
                    from £21.81
                    from £21.81
                    # 012
                    MPN: 189863
                    SMALL BLOCK
                    from £17.33
                    from £17.33
                    # 013
                    MPN: 222695
                    BRAKE PEDAL PLATE
                    Version Sport GT
                    from £104.57
                    from £104.57
                    # 014
                    MPN: 14441324
                    SCREW
                    Version Sport GT
                    from £0.51
                    from £0.51
                    # 015
                    MPN: 246696
                    ACCELERATOR PEDAL PLATE
                    Version Sport GT
                    from £141.12
                    from £141.12
                    This part replaces part number 222836 - and 1 more. Click to view details
