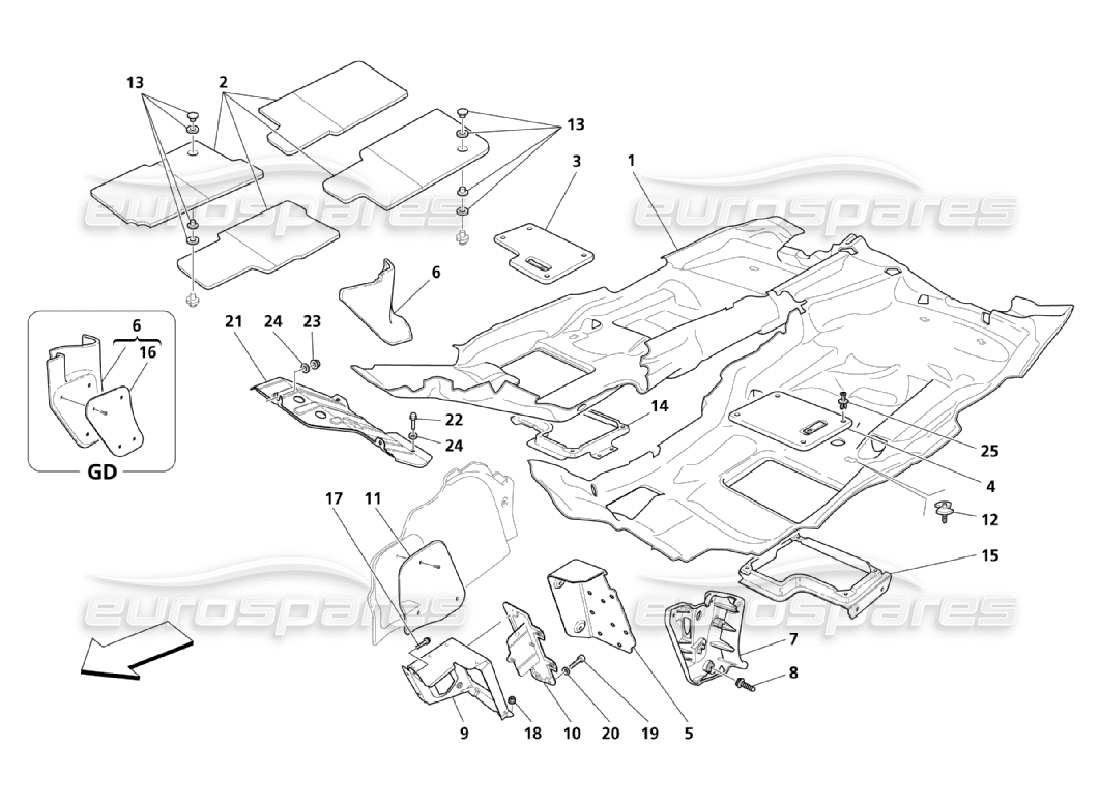

maserati qtp. (2006) 4.2 passengers compartment carpets parts diagram

960 - passengers compartment carpets

Maserati QTP. (2006) 4.2 Passengers Compartment Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 9813055..
                PASSENGER CARPET
                Not for GD
                Supersession
                Supersession
                # 001
                MPN: 9813291..
                PASSENGER CARPET
                Valid for GD
                Supersession
                Supersession
                # 002
                MPN: 940000648
                RHD REMOVABLE CARPET KIT
                (black)
                from £224.12
                from £224.12
                # 002
                MPN: 981307100
                REMOVABLE CARPET KIT
                from £156.88
                from £156.88
                # 002
                MPN: 981329213
                REMOVABLE CARPET KIT
                Beige, Valid for GD
                from £186.25
                from £186.25
                # 003
                MPN: 9813056..
                RH CONTROL UNIT INSPECTION DOOR
                Not for GD
                # 003
                MPN: 9813297..
                RH CONTROL UNIT INSPECTION DOOR
                Valid for GD
                Supersession
                Supersession
                # 004
                MPN: 9813057..
                LH CONTROL UNIT INSPECTION DOOR
                Valid for GD
                Supersession
                Supersession
                # 004
                MPN: 9813297..
                LH CONTROL UNIT INSPECTION DOOR
                Not for GD
                Supersession
                Supersession
                # 005
                MPN: 9813058..
                FOOT REST LINING
                Not for GD
                # 006
                MPN: 981302113
                RH LATERAL COVER
                Not for GD
                from £76.27
                from £76.27
                # 006
                MPN: 9813293..
                RH LATERAL COVER
                Valid for GD
                Supersession
                Supersession
                # 007
                MPN: 9813022..
                LH LATERAL COVER
                Not for GD
                Supersession
                Supersession
                # 007
                MPN: 9813294..
                LH LATERAL COVER
                Valid for GD
                Supersession
                Supersession
                # 008
                MPN: 67874500
                PIN
                from £0.69
                from £0.69
                # 009
                MPN: 67076300
                FOOTREST FOR DRIVER
                Not for GD
                from £21.14
                from £21.14
                # 010
                MPN: 67571800
                FOOTREST FOR DRIVER COVER
                Not for GD
                from £20.72
                from £20.72
                # 011
                MPN: 67312200
                PROTECTION PLATE
                Not for GD - Included IN THE LH lateral cover (Draw 9.51 Pos. 18)
                from £187.63
                from £187.63
                # 012
                MPN: 67020900
                button
                from £1.39
                from £1.39
                This part replaces part number 66423700
                # 013
                MPN: 980001999
                REMOVABLE CARPET FIXING KIT
                from £23.35
                from £23.35
                # 014
                MPN: 67728600
                RH BRACKET FOR INSPECTION SHIELD
                Not for GD
                from £17.81
                from £17.81
                # 014
                MPN: 68192200
                RH BRACKET FOR INSPECTION SHIELD
                Valid for GD
                from £16.58
                from £16.58
                # 015
                MPN: 67728700
                LH BRACKET FOR INSPECTION SHIELD
                Valid for GD
                from £19.73
                from £19.73
                # 015
                MPN: 68192000
                LH BRACKET FOR INSPECTION SHIELD
                Not for GD
                from £18.92
                from £18.92
                # 016
                MPN: 67999800
                PROTECTION PLATE
                Valid for GD
                from £49.15
                from £49.15
                # 017
                MPN: 11625624
                SCREW
                Not for GD
                from £0.53
                from £0.53
                # 018
                MPN: 14039614
                NUT
                Not for GD
                from £0.54
                from £0.54
                # 019
                MPN: 13026924
                SCREW
                Not for GD
                from £0.53
                from £0.53
                # 020
                MPN: 13550201
                WASHER
                Not for GD
                from £0.53
                from £0.53
                # 021
                MPN: 67267900
                FOOTREST PASSENGER
                Not for GD - RH side
                from £41.71
                from £41.71
                # 021
                MPN: 67720100
                FOOTREST PASSENGER
                Valid for GD - LH side
                from £20.42
                from £20.42
                # 022
                MPN: 11612424
                SCREW
                from £1.20
                from £1.20
                # 023
                MPN: 14039614
                NUT
                from £0.53
                from £0.53
                # 024
                MPN: 12643724
                WASHER
                from £0.51
                from £0.51
                # 025
                MPN: 68808600
                FIXING BUTTON
                from £0.66
                from £0.66
