01.0203.01 - Front Bonnet Assembly

Aston Martin Cygnet (2012) Front Bonnet Assembly Parts Diagram

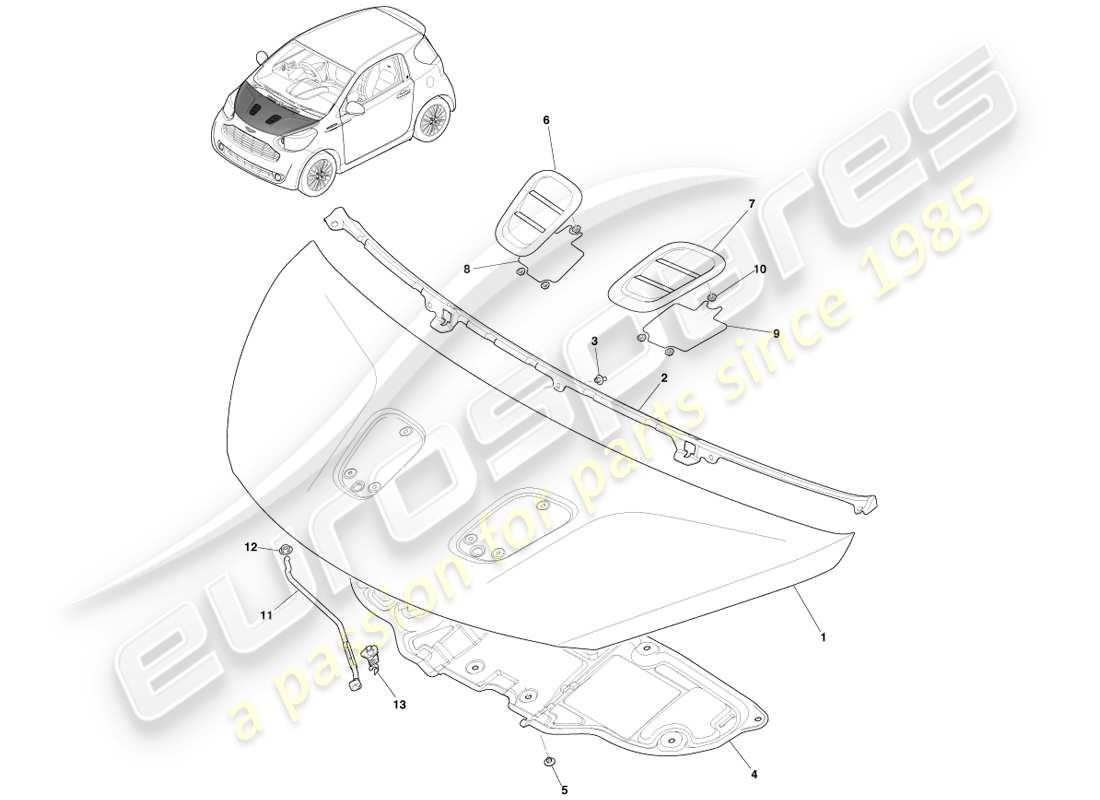

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 1
                            MPN: AY2Y-16612-AB
                            HOOD ASSY
                            from £918.01
                            from £918.01
                            # 2
                            MPN: AY2Y-C512A0-AB
                            REAR HOOD FINISHER
                            from £83.00
                            from £83.00
                            # 3
                            MPN: 90467-07076-C0
                            CLIP, COWL TOP VENTILATOR
                            from £1.17
                            from £1.17
                            # 4
                            MPN: 53341-74010
                            INSULATOR, HOOD
                            from £41.64
                            from £41.64
                            # 5
                            MPN: 90467-09050
                            CLIP FOR HOOD INSULATOR
                            from £1.27
                            from £1.27
                            # 6
                            MPN: AY2Y-16C692-AA
                            VENT HOOD ASSY RH, PRIMED
                            from £384.97
                            from £384.97
                            # 6
                            MPN: AY2Y-16C692-BA
                            VENT HOOD ASSY RH, BLACK
                            from £336.85
                            from £336.85
                            # 6
                            MPN: AY2Y-16C692-CA
                            VENT HOOD ASSY RH, MAGNUM SILVER
                            from £336.85
                            from £336.85
                            # 6
                            MPN: AY2Y-16C692-DA
                            VENT HOOD ASSY RH, GREY CHROME
                            from £336.85
                            from £336.85
                            # 7
                            MPN: AY2Y-16C693-AA
                            VENT HOOD ASSY LH, PRIMED
                            from £384.97
                            from £384.97
                            # 7
                            MPN: AY2Y-16C693-BA
                            VENT HOOD ASSY LH, BLACK
                            from £336.85
                            from £336.85
                            # 7
                            MPN: AY2Y-16C693-CA
                            VENT HOOD ASSY LH, MAGNUM SILVER
                            from £336.85
                            from £336.85
                            # 7
                            MPN: AY2Y-16C693-DA
                            VENT HOOD ASSY LH, GREY CHROME
                            from £336.85
                            from £336.85
                            # 8
                            MPN: AY2Y-10622-AA
                            Decal - Hood Louvre, RH
                            from £2.06
                            from £2.06
                            # 9
                            MPN: AY2Y-10623-AA
                            Decal - Hood Louvre, LH
                            from £2.06
                            from £2.06
                            # 10
                            MPN: 4G43-83000-BB
                            NUT, M5 SPEED
                            from £0.47
                            from £0.47
                            # 11
                            MPN: 53440-74010
                            SUPPORT ASSY, HOOD
                            from £18.02
                            from £18.02
                            # 12
                            MPN: 53454-74010
                            CLIP, HOOD SUPPORT
                            from £1.42
                            from £1.42
                            # 13
                            MPN: 53452-74010
                            HOLDER, HOOD SUPPORT
                            from £4.78
                            from £4.78
