aston martin cygnet (2012) front door trim panel parts diagram

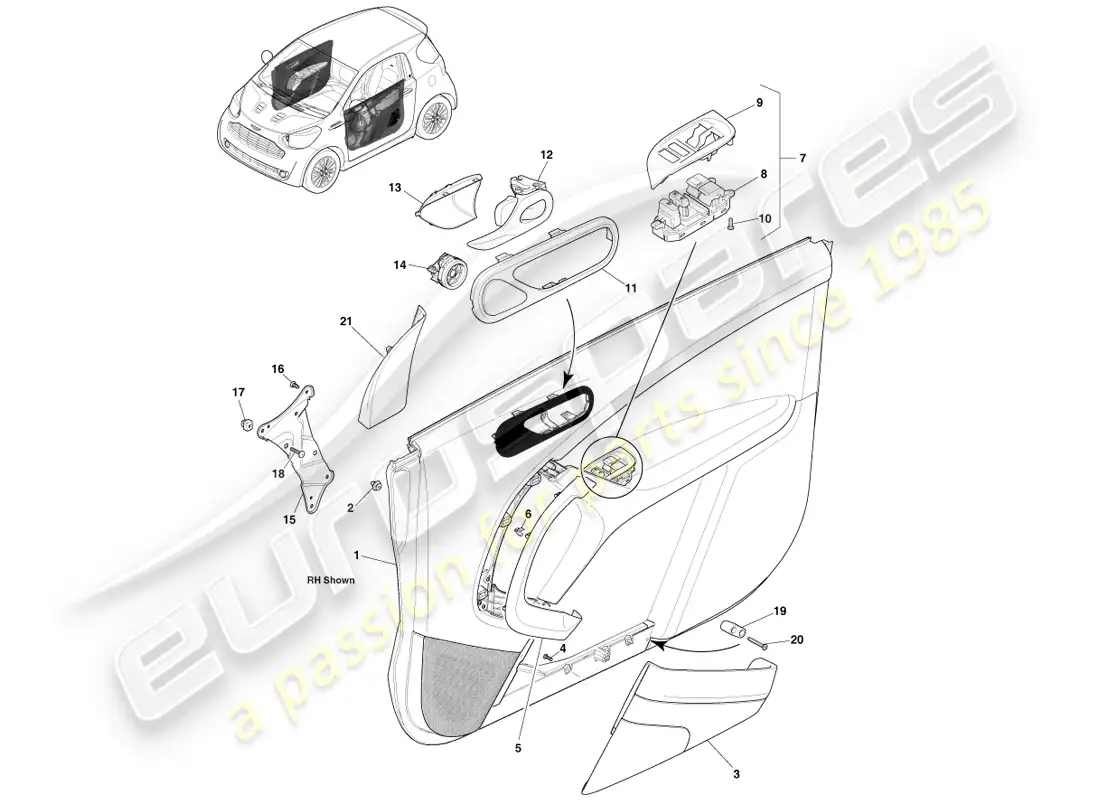

01.0507.01 - Front Door Trim Panel

Aston Martin Cygnet (2012) Front Door Trim Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: AY2Y-23942-BAW
                                Trim Panel Assy, Door RH, RHD
                                TRIM PANEL ASSEMBLY DOOR RH, RHD Genuine Aston Martin - New (to order)
                                # 1
                                MPN: AY2Y-23943-AAW
                                Trim Panel Assy, Door LH, RHD
                                TRIM PANEL ASSEMBLY DOOR LH, RHD Genuine Aston Martin - New (to order)
                                # 1
                                MPN: AY2Y-23942-AAW
                                Trim Panel Assy, Door RH, LHD
                                from £1,289.19
                                from £1,289.19
                                PANEL ASSEMBLY FRONT DR TR Genuine Aston Martin - New (to order)
                                # 1
                                MPN: AY2Y-23943-BAW
                                Trim Panel Assy, Door LH, LHD
                                TRIM PANEL ASSEMBLY DOOR LH, LHD Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 90467-09206
                                FIXING, PUSH IN
                                from £1.42
                                from £1.42
                                CLIP(FOR FRONT DOOR Genuine Aston Martin - New (to order)
                                # 3
                                MPN: AY2Y-237A10-ABW
                                Pocket Assy, Door RH
                                POCKET ASSEMBLY DOOR RH Genuine Aston Martin - New (to order)
                                # 3
                                MPN: AY2Y-237A11-ABW
                                Pocket Assy, Door LH
                                POCKET ASSEMBLY DOOR LH Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 702289
                                SCREW, M4X16
                                7 per side
                                from £0.47
                                from £0.47
                                SCREW, M4X16 Genuine Aston Martin - New (to order)
                                # 5
                                MPN: AY2Y-23882-AB
                                BOOMERANG ASSY, DOOR INSERT RH, SATIN
                                from £56.95
                                from £56.95
                                DOOR BOOMERANG RH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: AY2Y-23882-BB
                                Boomerang Assy, Door Insert RH, DARK CHROME
                                BOOMERANG ASSEMBLY DOOR INSERT RH, DARK CHROME Genuine Aston Martin - New (to order)
                                # 5
                                MPN: AY2Y-23882-CB
                                Boomerang Assy, Door Insert RH, PAINTED
                                BOOMERANG ASSEMBLY DOOR INSERT RH, PAINTED Genuine Aston Martin - New (to order)
                                # 5
                                MPN: AY2Y-23883-AB
                                BOOMERANG ASSY, DOOR INSERT LH, SATIN
                                from £56.95
                                from £56.95
                                DOOR BOOMERANG LH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: AY2Y-23883-BB
                                Boomerang Assy, Door Insert LH, DARK CHROME
                                BOOMERANG ASSEMBLY DOOR INSERT LH, DARK CHROME Genuine Aston Martin - New (to order)
                                # 5
                                MPN: AY2Y-23883-CB
                                Boomerang Assy, Door Insert LH, PAINTED
                                BOOMERANG ASSEMBLY DOOR INSERT LH, PAINTED Genuine Aston Martin - New (to order)
                                # 6
                                MPN: AY2Y-18512-AA
                                FIXING, PUSH IN
                                4 per side
                                from £0.47
                                from £0.47
                                EDGE CLIP Genuine Aston Martin - New (to order)
                                # 7
                                MPN: AY2Y-14540-AB
                                SWITCH AND BEZEL ASSY, WINDOW LIFT DRIVERS RHD
                                WINDOW LIFT SWITCH Genuine Aston Martin - New (to order)
                                # 7
                                MPN: AY2Y-14717-AB
                                Switch and Bezel Assy, Window Lift Passengers RHD
                                SWITCH AND BEZEL ASSEMBLY WINDOW LIFT PASSENGERS RHD Genuine Aston Martin - New (to order)
                                # 7
                                MPN: AY2Y-14540-BB
                                SWITCH AND BEZEL ASSY, WINDOW LIFT DRIVERS LHD
                                from £244.65
                                from £244.65
                                WINDOW LIFT SWITCH Genuine Aston Martin - New (to order)
                                # 7
                                MPN: AY2Y-14717-BB
                                SWITCH AND BEZEL ASSY, WINDOW LIFT PASSENGERS LHD
                                from £306.68
                                from £306.68
                                WINDOW LIFT SWITCH Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 84040-74010
                                SWITCH, WINDOW LIFT DRIVER, RHD
                                from £43.18
                                from £43.18
                                MASTER SWITCH ASSEMBLY Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 84040-74020
                                SWITCH, WINDOW LIFT DRIVER, LHD
                                from £365.34
                                from £365.34
                                MASTER SWITCH ASSEMBLY Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 84810-42010
                                SWITCH, WINDOW LIFT PASSENGER
                                from £65.06
                                from £65.06
                                Switch Assembly Genuine Aston Martin - New (to order)
                                # 9
                                MPN: AY2Y-9467-BC
                                BEZEL, WINDOW LIFT DRIVERS, RHD
                                from £133.02
                                from £133.02
                                SWITCH PACK BEZEL Genuine Aston Martin - New (to order)
                                # 9
                                MPN: AY2Y-9467-DC
                                BEZEL, WINDOW LIFT PASSENGER, RHD
                                from £234.17
                                from £234.17
                                SWITCH PACK BEZEL Genuine Aston Martin - New (to order)
                                # 9
                                MPN: AY2Y-9467-AC
                                BEZEL, WINDOW LIFT DRIVERS, LHD
                                from £139.65
                                from £139.65
                                SWITCH PACK BEZEL Genuine Aston Martin - New (to order)
                                # 9
                                MPN: AY2Y-9467-CC
                                BEZEL, WINDOW LIFT PASSENGER, LHD
                                from £133.02
                                from £133.02
                                SWITCH PACK BEZEL Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 702289
                                SCREW, M4X16
                                from £0.47
                                from £0.47
                                SCREW, M4X16 Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B40-AC
                                BEZEL ASSY, RELEASE HANDLE RH, SATIN
                                BEZEL & TWEETER ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B40-BC
                                BEZEL ASSY, RELEASE HANDLE RH, DARK CHROME
                                4NT REL BEZ ASSEMBLY RH Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B40-DA
                                BEZEL ASSY, RELEASE HANDLE RH, PIANO BLACK
                                from £212.56
                                from £212.56
                                INT REL BEZL RH ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B40-EA
                                BEZEL ASSY, RELEASE HANDLE RH, IRIDIUM
                                from £151.60
                                from £151.60
                                INT REL HOL BZL IRDM Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B41-AC
                                BEZEL ASSY, RELEASE HANDLE LH, SATIN
                                from £82.76
                                from £82.76
                                BEZEL & TWEETER ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B41-BC
                                BEZEL ASSY, RELEASE HANDLE LH, DARK CHROME
                                from £157.87
                                from £157.87
                                BEZEL & TWEETER ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B41-DA
                                BEZEL ASSY, RELEASE HANDLE LH, PIANO BLACK
                                from £212.56
                                from £212.56
                                INT REL BEZL LH ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: AY2Y-226B41-EA
                                BEZEL ASSY, RELEASE HANDLE LH, IRIDIUM
                                from £159.14
                                from £159.14
                                INT REL HDL BZL IRDM Genuine Aston Martin - New (to order)
                                # 12
                                MPN: AY2Y-22615-AB
                                Door Release Handle, LH
                                Satin Chrome
                                from £212.82
                                from £212.82
                                INT REL HANDLE LH Genuine Aston Martin - New (to order)
                                # 12
                                MPN: AY2Y-22615-BB
                                Door Release Handle, LH
                                DARK CHROME
                                Door Release Handle, LH Genuine Aston Martin - New (to order)
                                # 12
                                MPN: AY2Y-22614-AB
                                Door Release Handle, RH
                                Satin Chrome
                                from £212.82
                                from £212.82
                                INT REL HANDLE RH Genuine Aston Martin - New (to order)
                                # 12
                                MPN: AY2Y-22614-BB
                                Door Release Handle, RH
                                DARK CHROME
                                Door Release Handle, RH Genuine Aston Martin - New (to order)
                                # 13
                                MPN: AY2Y-23184-AC
                                CUP, DOOR RELEASE HANDLE RH
                                from £214.49
                                from £214.49
                                DR INNER REL CUP RH Genuine Aston Martin - New (to order)
                                # 13
                                MPN: AY2Y-23185-AC
                                CUP, DOOR RELEASE HANDLE LH
                                from £214.49
                                from £214.49
                                DR INNER REL CUP LH Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 86160-68010
                                TWEETER
                                from £58.96
                                from £58.96
                                SPEAKER ASSEMBLY Genuine Aston Martin - New (to order)
                                # 15
                                MPN: AY2Y-238A38-AA
                                BRACKET, ARMREST INTERFACE, RHS
                                from £27.66
                                from £27.66
                                A/REST INT. BRACKET RH Genuine Aston Martin - New (to order)
                                # 15
                                MPN: AY2Y-238A38-AA
                                BRACKET, ARMREST INTERFACE, LHS
                                from £27.66
                                from £27.66
                                A/REST INT. BRACKET RH Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 6G33-51756-AA-PK
                                SCREW, M5X13 PAN HD
                                5 per door
                                from £2.78
                                from £2.78
                                SCREW-M5X13 PN HD(10 Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 85373-12020
                                GROMMET
                                2 per door
                                GROMMET Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 90164-60018
                                SCREW
                                2 per door
                                SCREWS TO LOCUT Genuine Aston Martin - New (to order)
                                # 19
                                MPN: AY2Y-E474000-AA
                                Block, Flange Lower
                                Block, Flange Lower Genuine Aston Martin - New (to order)
                                # 20
                                MPN: AY2Y-N604149-AA
                                SCREW, M5X40 PAN HEAD
                                SCREW, M5X40 PAN HEAD Genuine Aston Martin - New (to order)
                                # 21
                                MPN: 67492-74010-C0
                                GARNISH, FRONT DOOR, LH
                                from £14.54
                                from £14.54
                                GARNISH Genuine Aston Martin - New (to order)
                                # 21
                                MPN: 67491-74010-C0
                                GARNISH, FRONT DOOR, RH
                                GARNISH Genuine Aston Martin - New (to order)
