aston martin cygnet (2012) front door glass parts diagram

01.1103 - Front Door Glass

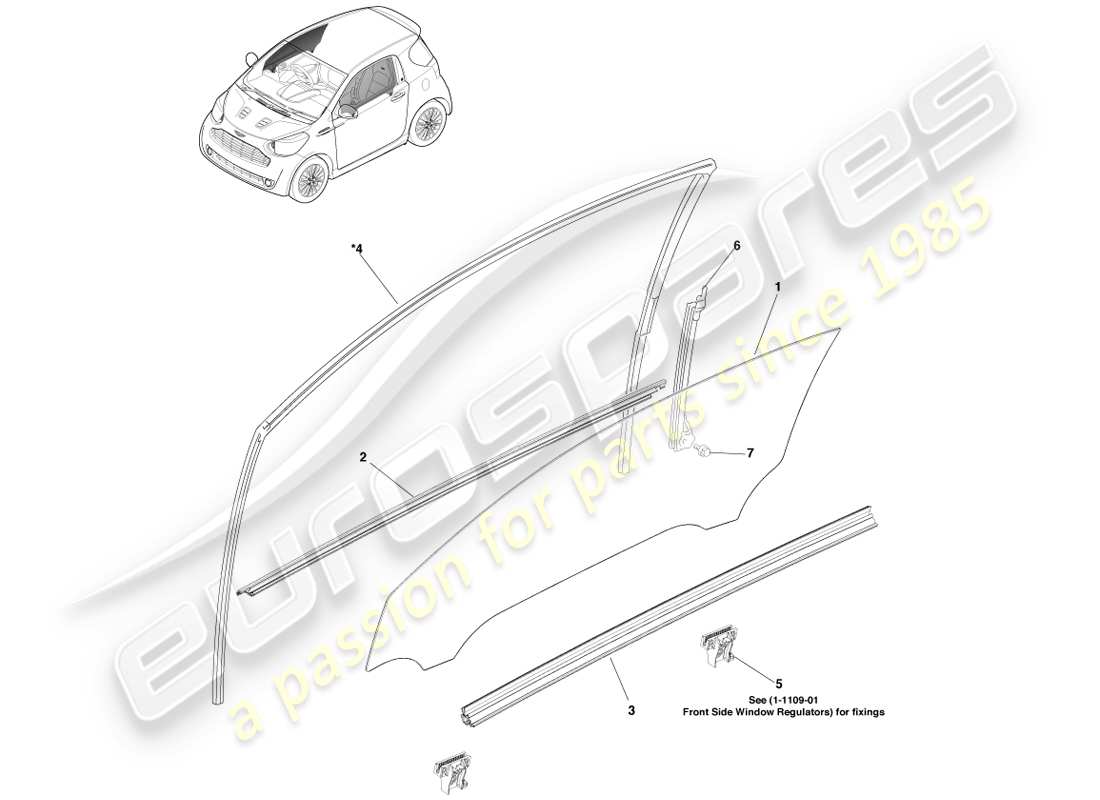

Aston Martin Cygnet (2012) Front Door Glass Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 1
              MPN: AY2Y-C21410-AA
              GLASS ASSY FRONT DOOR RH
              from £212.30
              from £212.30
              # 1
              MPN: AY2Y-C21411-AA
              GLASS ASSY FRONT DOOR LH
              from £212.30
              from £212.30
              # 2
              MPN: 68160-74030
              WEATHERSTRIP ASSY, FRONT DOOR GLASS, RH
              Supersession
              Supersession
              # 2
              MPN: 68210-74030
              WEATHERSTRIP ASSY, FRONT DOOR GLASS, LH
              from £28.72
              from £28.72
              # 3
              MPN: 68171-74010
              WEATHERSTRIP, FRONT DOOR GLASS INNER, RH
              from £797.76
              from £797.76
              # 3
              MPN: 68172-74010
              WEATHERSTRIP, FRONT DOOR GLASS INNER, LH
              from £42.76
              from £42.76
              # 4
              MPN: 68141-74010
              RUN, FRONT DOOR GLASS, RH
              *11/2008 to 12/2010
              from £50.35
              from £50.35
              # 4
              MPN: 68141-74011
              RUN, FRONT DOOR GLASS, RH
              *From 01/2011
              from £90.04
              from £90.04
              # 4
              MPN: 68151-74010
              RUN, FRONT DOOR GLASS, LH
              *11/2008 to 12/2010
              from £50.35
              from £50.35
              # 4
              MPN: 68151-74011
              RUN, FRONT DOOR GLASS, LH
              *From 01/2011
              from £90.04
              from £90.04
              # 5
              MPN: 69951-74010
              CHANNEL, FRONT DOOR GLASS, RH
              # 5
              MPN: 69952-74010
              CHANNEL, FRONT DOOR GLASS, LH
              from £7.42
              from £7.42
              # 6
              MPN: 67403-74010
              FRAME SUB-ASSY, FRONT DOOR REAR LOWER, RH
              # 6
              MPN: 67404-74010
              FRAME SUB-ASSY, FRONT DOOR REAR LOWER, LH
              from £25.75
              from £25.75
              # 7
              MPN: 90119-06983
              BOLT, WASHERHEAD
              from £0.70
              from £0.70
