aston martin cygnet (2012) rear windscreen wiper assy parts diagram

01.1602.01 - Rear Windscreen Wiper Assy

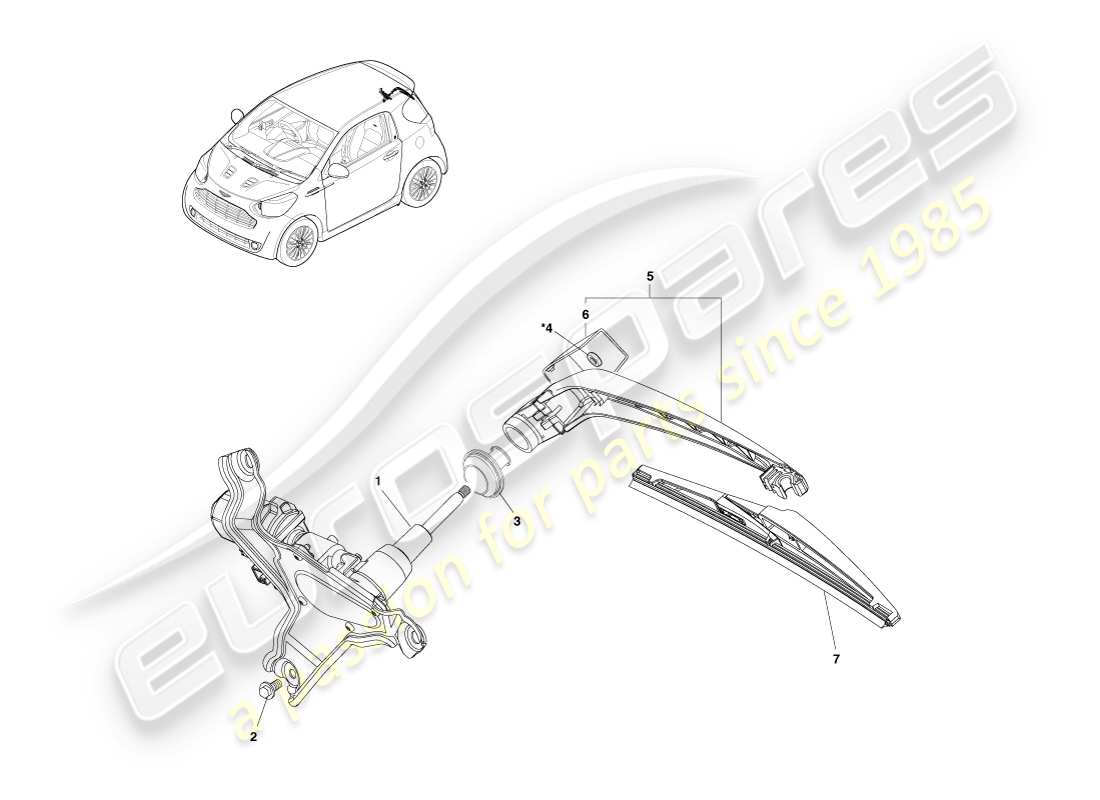

Aston Martin Cygnet (2012) Rear Windscreen Wiper Assy Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 85130-74010
              MOTOR ASSY, REAR WIPER
              from £214.55
              from £214.55
              MOTOR ASSEMBLY Genuine Aston Martin - New (to order)
              # 2
              MPN: 701350
              SCREW, W/WASHER HEX HEAD
              SCREW, M6X20 Genuine Aston Martin - New (to order)
              # 3
              MPN: 85143-52030
              GROMMET, REAR WIPER MOTOR ASSY
              GROMMET Genuine Aston Martin - New (to order)
              # 4
              MPN: 90179-06158
              NUT
              *To 12/2010
              NUT (FOR REAR WIPER Genuine Aston Martin - New (to order)
              # 4
              MPN: 94151-80600
              NUT
              *From 12/2010
              NUT (FOR REAR WIPER Genuine Aston Martin - New (to order)
              # 5
              MPN: 85241-74010
              ARM, REAR WIPER
              from £45.23
              from £45.23
              ARM Genuine Aston Martin - New (to order)
              # 6
              MPN: 85292-42010
              CAP, REAR WIPER ARM
              from £4.78
              from £4.78
              CAP Genuine Aston Martin - New (to order)
              # 7
              MPN: 85242-12090
              BLADE, REAR WIPER
              from £11.52
              from £11.52
              BLADE Genuine Aston Martin - New (to order)
