aston martin cygnet (2012) cylinder block component parts parts diagram

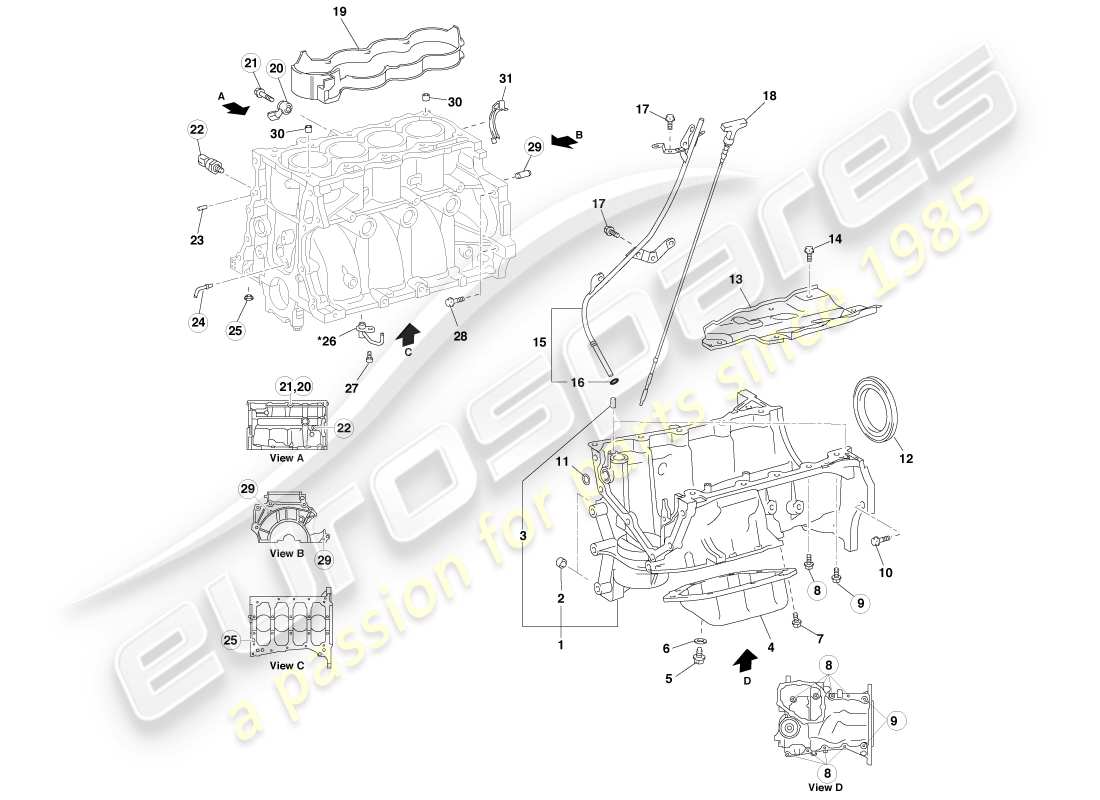

03.0003 - Cylinder Block Component Parts

Aston Martin Cygnet (2012) Cylinder Block Component Parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 12101-47140
                                                              Pan-Sub Assy, Oil
                                                              PAN-SUB ASSEMBLY OIL Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: 90253-11021
                                                              PIN
                                                              from £1.99
                                                              from £1.99
                                                              PIN Genuine Aston Martin - New (to order)
                                                              # 3
                                                              MPN: 90250-08074
                                                              PIN, STRAIGHT, OIL PAN
                                                              PIN Genuine Aston Martin - New (to order)
                                                              # 4
                                                              MPN: 12102-47020
                                                              Pan-Sub Assy, Oil, No.2
                                                              PAN SUB-ASSY Genuine Aston Martin - New (to order)
                                                              # 5
                                                              MPN: 90341-12032
                                                              PLUG, OIL PAN DRAIN
                                                              from £4.51
                                                              from £4.51
                                                              PLUG-FOR OIL PAN DRN Genuine Aston Martin - New (to order)
                                                              # 6
                                                              MPN: 90080-43037
                                                              Gasket, Oil Drain Plug
                                                              from £1.11
                                                              from £1.11
                                                              GASKET Genuine Aston Martin - New (to order)
                                                              # 7
                                                              MPN: 90119-06938
                                                              BOLT, WITH WASHER
                                                              from £0.81
                                                              from £0.81
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: 90105-W0016
                                                              BOLT, FLANGE
                                                              from £0.99
                                                              from £0.99
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 9
                                                              MPN: 91551-F08550
                                                              BOLT, FLANGE
                                                              BOLT, FLANGE Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: 90105-10540
                                                              BOLT, FLANGE
                                                              from £1.15
                                                              from £1.15
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 11
                                                              MPN: 90301-19023
                                                              O RING
                                                              from £3.61
                                                              from £3.61
                                                              RING Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 90311-99012
                                                              SEAL, ENGINE REAR OIL, MAN
                                                              SEAL Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 90311-78003
                                                              SEAL, ENGINE REAR OIL, AUTO
                                                              SEAL Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: 12121-47020
                                                              PLATE, OIL PAN BAFFLE, NO.1
                                                              PLATE Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: 90119-06848
                                                              BOLT, WITH WASHER
                                                              from £0.87
                                                              from £0.87
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 15
                                                              MPN: 11409-47020
                                                              GUIDE, OIL LEVEL GAGE
                                                              GUIDE Genuine Aston Martin - New (to order)
                                                              # 16
                                                              MPN: 96741-19010
                                                              O RING, OIL LEVEL GAGE
                                                              from £3.25
                                                              from £3.25
                                                              RING Genuine Aston Martin - New (to order)
                                                              # 17
                                                              MPN: 91671-80820
                                                              STANDARD PART
                                                              BOLT (FOR TRANSMISSI Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: 15301-47030
                                                              GAGE SUB ASSY, OIL LEVEL
                                                              from £10.16
                                                              from £10.16
                                                              GAGE SUB-ASSY Genuine Aston Martin - New (to order)
                                                              # 19
                                                              MPN: 11445-47010
                                                              SPACER, CYLINDER BLOCK WATER JACKET
                                                              SPACER Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: 89615-02020
                                                              SENSOR, KNOCK CONTROL
                                                              from £214.32
                                                              from £214.32
                                                              SENSOR Genuine Aston Martin - New (to order)
                                                              # 21
                                                              MPN: 90105-W0016
                                                              BOLT, FLANGE R206
                                                              from £0.99
                                                              from £0.99
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 22
                                                              MPN: 83530-05010
                                                              SWITCH ASSY, OIL PRESSURE
                                                              from £38.13
                                                              from £38.13
                                                              Switch Assembly Genuine Aston Martin - New (to order)
                                                              # 23
                                                              MPN: 90250-04097
                                                              PIN, STRAIGHT, TIMING GEAR COVER SET
                                                              PIN Genuine Aston Martin - New (to order)
                                                              # 24
                                                              MPN: 13516-40010
                                                              JET, OIL
                                                              JET Genuine Aston Martin - New (to order)
                                                              # 25
                                                              MPN: 90430-12039
                                                              O RING, OIL PAN
                                                              RING Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: 15708-47030
                                                              NOZZLE SUB-ASSY, OIL, NO.1
                                                              *09/2010 to 04/2011
                                                              NOZZLE SUB-ASSY Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: 15708-47040
                                                              NOZZLE SUB-ASSY, OIL, NO.1
                                                              *From 04/2011
                                                              NOZZLE SUB-ASSY Genuine Aston Martin - New (to order)
                                                              # 27
                                                              MPN: 90110-06040
                                                              BOLT, HEXAGON SOCKET
                                                              from £0.70
                                                              from £0.70
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 28
                                                              MPN: 91552-81045
                                                              BOLT, FLANGE CF09
                                                              from £1.49
                                                              from £1.49
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 29
                                                              MPN: 90250-10113
                                                              PIN, STRAIGHT, CLUTCH HOUSING SET
                                                              PIN Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 90253-13017
                                                              PIN, RING, CYLINDER HEAD SET
                                                              PIN Genuine Aston Martin - New (to order)
                                                              # 31
                                                              MPN: 11363-40010
                                                              COVER, FLYWHEEL HOUSING SIDE
                                                              COVER Genuine Aston Martin - New (to order)
