03.0005 - MANIFOLD

Aston Martin Cygnet (2012) Manifold Parts Diagram

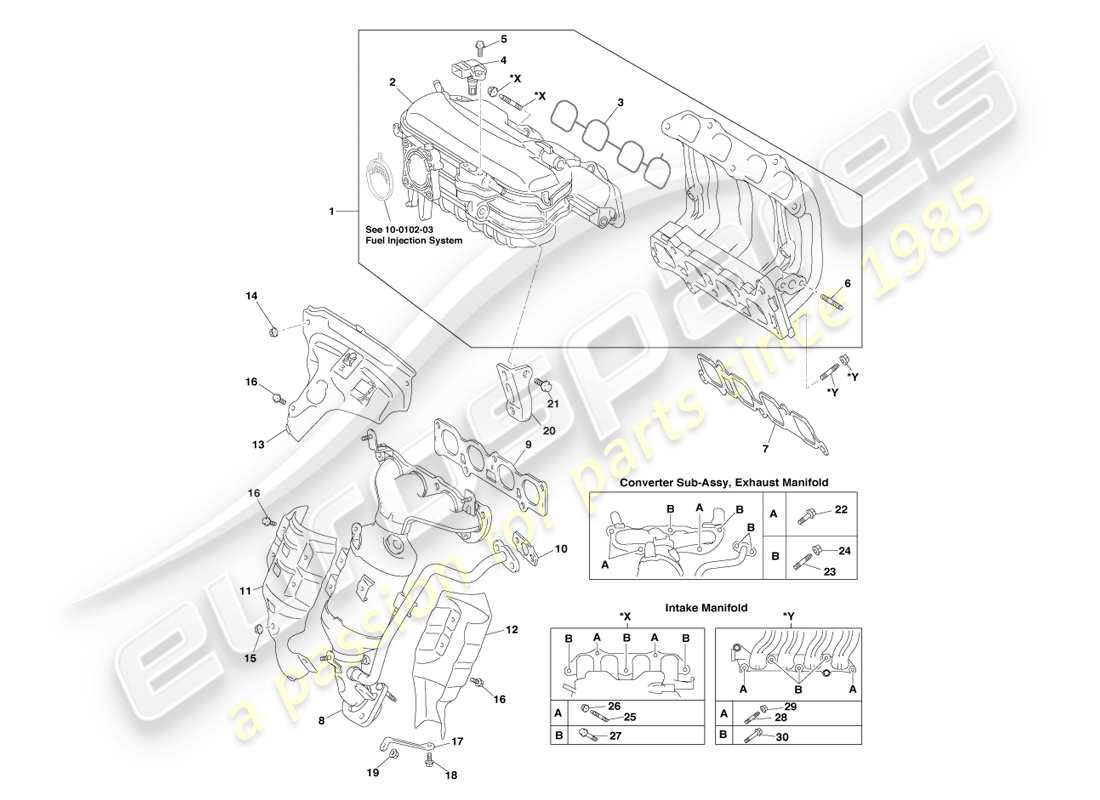

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 17120-47020
                                                              MANIFOLD, INTAKE
                                                              MANIFOLD Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: 22271-47020
                                                              GASKET, THROTTLE BODY
                                                              from £2.55
                                                              from £2.55
                                                              GASKET Genuine Aston Martin - New (to order)
                                                              # 3
                                                              MPN: 17177-47020
                                                              Gasket, Intake Manifold to Head, N0.1
                                                              from £8.93
                                                              from £8.93
                                                              GASKET Genuine Aston Martin - New (to order)
                                                              # 4
                                                              MPN: 89421-52010
                                                              SENSOR ASSY, VACUUM, E.F.I.
                                                              SENSOR ASSEMBLY Genuine Aston Martin - New (to order)
                                                              # 5
                                                              MPN: 91551-80614
                                                              BOLT, FLANGE NF05
                                                              from £0.96
                                                              from £0.96
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 6
                                                              MPN: 90126-06029
                                                              STUD, HEXALOBUL NF07
                                                              from £0.81
                                                              from £0.81
                                                              STUD Genuine Aston Martin - New (to order)
                                                              # 7
                                                              MPN: 17178-47010
                                                              Gasket, Intake Manifold to Head, N0.2
                                                              from £3.46
                                                              from £3.46
                                                              GASKET Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: 25051-47060
                                                              CONVERTER SUB-ASSY, EXHAUST MANIFOLD
                                                              from £375.96
                                                              from £375.96
                                                              CONVERTER SUB-ASSY Genuine Aston Martin - New (to order)
                                                              # 9
                                                              MPN: 17173-47020
                                                              GASKET, EXHAUST MANIFOLD TO HEAD
                                                              from £6.32
                                                              from £6.32
                                                              GASKET Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: 25628-47010
                                                              Gasket, EGR Inlet
                                                              from £0.47
                                                              from £0.47
                                                              GASKET Genuine Aston Martin - New (to order)
                                                              # 11
                                                              MPN: 17168-47020
                                                              Insulator, Exhaust manifold Heat, No.2
                                                              INSULATOR Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 17169-47011
                                                              Insulator, Exhaust manifold Heat, No.3
                                                              INSULATOR Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: 17167-47022
                                                              Insulator, Exhaust manifold Heat, No.1
                                                              INSULATOR Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: 90179-06319
                                                              NUT, WITH WASHER
                                                              from £1.11
                                                              from £1.11
                                                              NUT Genuine Aston Martin - New (to order)
                                                              # 15
                                                              MPN: 94151-80641
                                                              NUT, FLANGE
                                                              from £0.74
                                                              from £0.74
                                                              NUT Genuine Aston Martin - New (to order)
                                                              # 16
                                                              MPN: 91673-A0612
                                                              BOLT, FLANGE
                                                              from £0.74
                                                              from £0.74
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 17
                                                              MPN: 17118-47020
                                                              STAY, MANIFOLD
                                                              STAY Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: 91673-80825
                                                              BOLT, FLANGE
                                                              from £1.24
                                                              from £1.24
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 19
                                                              MPN: 94150-80830
                                                              NUT, FLANGE
                                                              from £1.27
                                                              from £1.27
                                                              NUT Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: 17138-47010
                                                              STAY, INTAKE MANIFOLD
                                                              STAY Genuine Aston Martin - New (to order)
                                                              # 21
                                                              MPN: 91671-80820
                                                              STANDARD PART
                                                              BOLT (FOR TRANSMISSI Genuine Aston Martin - New (to order)
                                                              # 22
                                                              MPN: 91671-80830
                                                              BOLT, FLANGE
                                                              from £0.99
                                                              from £0.99
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 23
                                                              MPN: 90126-08063
                                                              Bolt, Stud, Exhaust Manifold to Cylinder Head
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 24
                                                              MPN: 94150-80830
                                                              NUT, FLANGE
                                                              from £1.27
                                                              from £1.27
                                                              NUT Genuine Aston Martin - New (to order)
                                                              # 25
                                                              MPN: 90126-08060
                                                              STUD, HEX LOBULAR
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: 94151-80841
                                                              NUT, FLANGE
                                                              from £0.99
                                                              from £0.99
                                                              NUT Genuine Aston Martin - New (to order)
                                                              # 27
                                                              MPN: 91671-80835
                                                              BOLT, FLANGE WITH WASHER
                                                              from £1.27
                                                              from £1.27
                                                              BOLT FLANGE W/WASHER Genuine Aston Martin - New (to order)
                                                              # 28
                                                              MPN: 90126-08060
                                                              BOLT, STUD, INLET MANIFOLD TO CYLINDER HEAD
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              # 29
                                                              MPN: 94151-80800
                                                              STANDARD PART
                                                              NUT (FOR TRANSMISSIO Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 91551-80850
                                                              BOLT, FLANGE, INJECTOR
                                                              from £1.27
                                                              from £1.27
                                                              BOLT Genuine Aston Martin - New (to order)
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
