aston martin cygnet (2012) half shafts parts diagram

05.0500 - Half Shafts

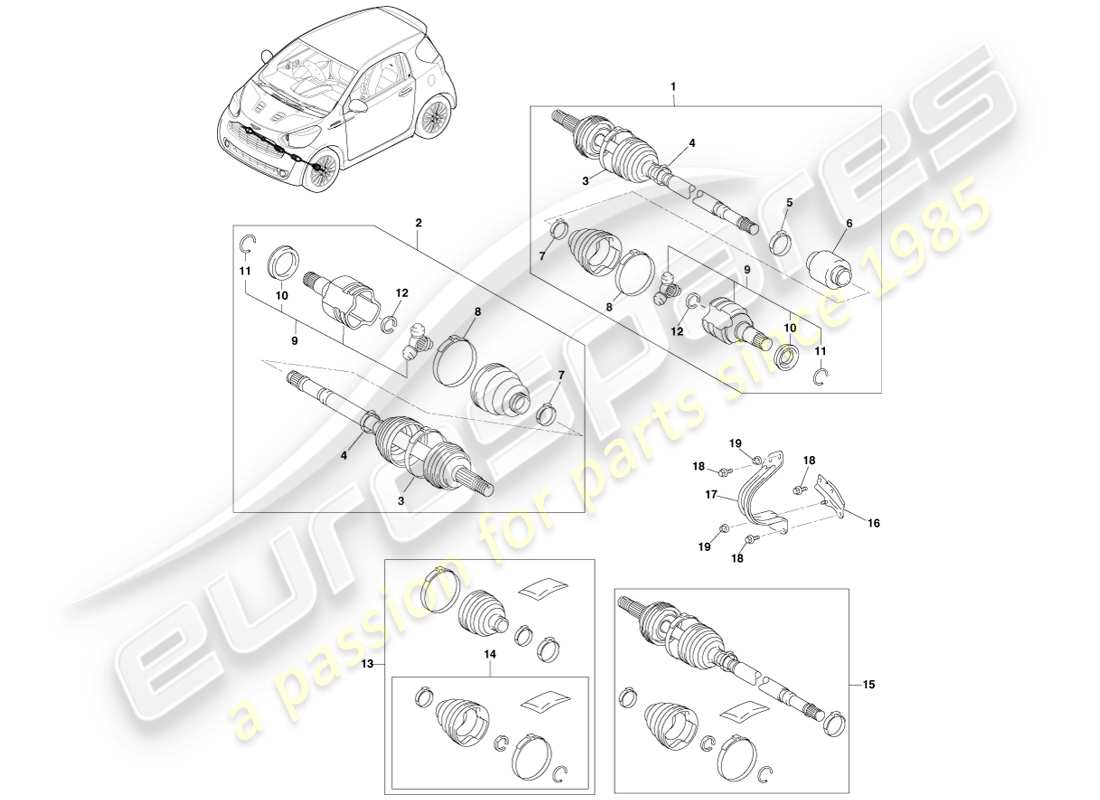

Aston Martin Cygnet (2012) Half Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 43410-74060
                        SHAFT ASSY, FRONT DRIVE, RHS
                        Shaft Assembly Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 43420-74050
                        SHAFT ASSY, FRONT DRIVE, LHS
                        from £625.75
                        from £625.75
                        Shaft Assembly Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 42345-74070
                        CLAMP, NO 2, FRONT AXLE OUTBOARD JOINT BOOT
                        One per side
                        CLAMP Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 42345-74060
                        CLAMP, FRONT AXLE OUTBOARD JOINT BOOT
                        One per side
                        CLAMP (FOR FRONT AXL Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 42345-16030
                        CLAMP, DRIVE SHAFT DAMPER SETTING
                        from £4.64
                        from £4.64
                        CLAMP REAR DRIVE SHAFT Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 43474-74020
                        DAMPER, FRONT DRIVE SHAFT, (RH ONLY)
                        DAMPER Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 42345-74090
                        CLAMP, FRONT AXLE INBOARD JOINT BOOT
                        One per side
                        CLAMP (FOR FRONT AXL Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 42345-74080
                        CLAMP, NO 2, FRONT AXLE INBOARD JOINT BOOT
                        One per side
                        CLAMP Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 43040-74030
                        JOINT ASSY, FRONT DRIVE INBOARD
                        One per side
                        JOINT ASSEMBLY Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 41336-12010
                        COVER, FRONT DRIVE SHAFT DUST
                        One per side
                        COVER Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 90521-26004
                        RING, HOLE SNAP, FRONT DRIVE SHAFT
                        One per side
                        RING Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 43425-74020
                        RING, SHAFT SNAP, FRONT DRIVE
                        One per side
                        RING Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 04427-74040
                        BOOT KIT, FRONT DRIVE SHAFT, IN/OUTBOARD JOINT
                        from £127.83
                        from £127.83
                        BOOT KIT Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 04437-74040
                        BOOT KIT, FRONT DRIVE SHAFT, INBOARD JOINT
                        BOOT KIT Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 43460-79035
                        SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
                        from £283.65
                        from £283.65
                        Shaft Assembly Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 43470-79115
                        SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
                        Shaft Assembly Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 43497-74010
                        INSULATOR, BEARING BRACKET HEAT
                        INSULATOR Genuine Aston Martin - New (to order)
                        # 17
                        MPN: 43498-74010
                        INSULATOR, DRIVE SHAFT HEAT
                        INSULATOR Genuine Aston Martin - New (to order)
                        # 19
                        MPN: 90179-08256
                        NUT
                        from £1.11
                        from £1.11
                        NUT Genuine Aston Martin - New (to order)
