08.0201.02 - Clutch Actuation Assy

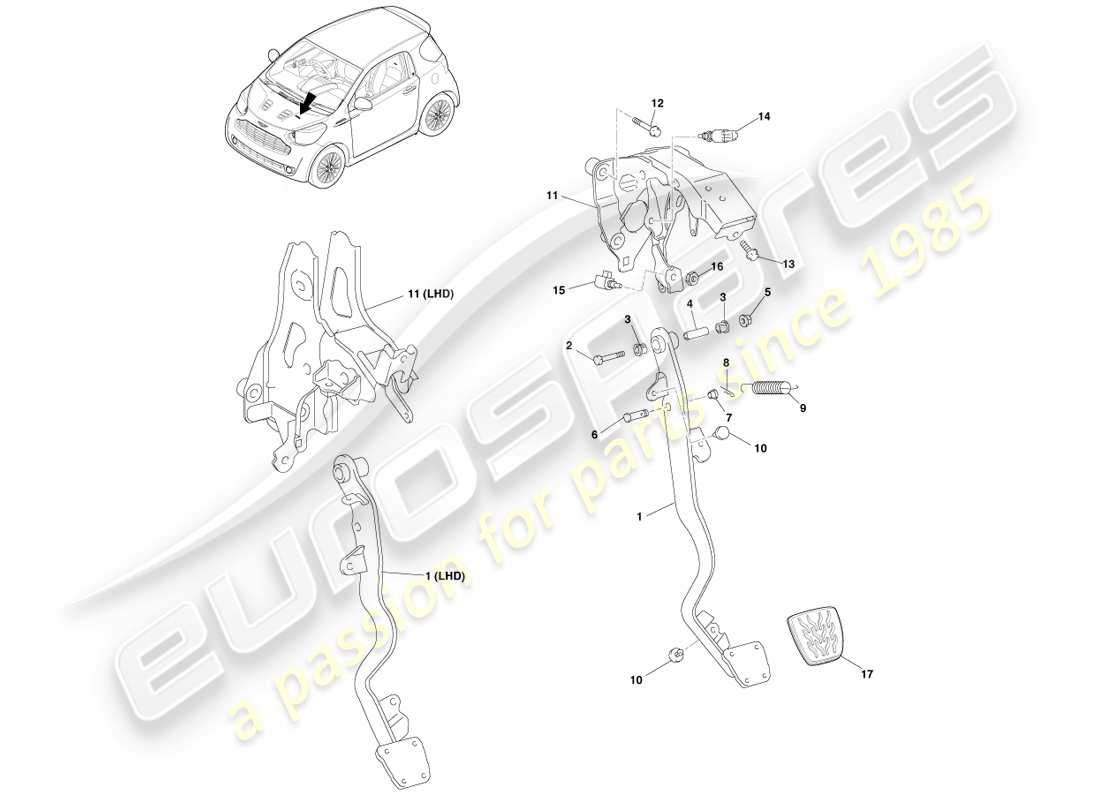

Aston Martin Cygnet (2012) Clutch Actuation Assy Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 31301-74030
                                    PEDAL SUB ASSY, CLUTCH, RHD
                                    PEDAL SUB-ASSY Genuine Aston Martin - New (to order)
                                    # 1
                                    MPN: 31301-74010
                                    PEDAL SUB ASSY, CLUTCH, LHD
                                    PEDAL SUB-ASSY Genuine Aston Martin - New (to order)
                                    # 2
                                    MPN: 90101-10039
                                    SHAFT, CLUTCH PEDAL
                                    SHAFT Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 90386-13015
                                    SHAFT, CLUTCH PEDAL
                                    BUSH(FOR CLUTCH PEDA Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 90387-10003
                                    COLLAR, CLUTCH PEDAL SHAFT
                                    COLLAR Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: 90179-10088
                                    NUT
                                    from £1.33
                                    from £1.33
                                    NUT Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 90249-08256
                                    PIN, W/HOLE, CLUTCH MASTER CYLINDER PUSH ROD CLEVIS
                                    PIN(FOR PUSH ROD) Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 90386-08033
                                    BUSH, CLUTCH MASTER CYLINDER PUSH ROD CLEVIS
                                    BUSH(FOR CLUTCH MAST Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 90468-16089
                                    CLIP
                                    from £1.54
                                    from £1.54
                                    CLIP Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 90507-14051
                                    SPRING, CLUTCH PEDAL
                                    SPRING(FOR CLUTCH PE Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 90541-06036
                                    CUSHION, CLUTCH PEDAL
                                    CUSHION Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 55107-74030
                                    SUPPORT SUB ASSY, CLUTCH PEDAL, RHD
                                    SUPPORT SUB-ASSY Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 55107-74010
                                    SUPPORT SUB ASSY, CLUTCH PEDAL, LHD
                                    SUPPORT SUB-ASSY Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 91551-80840
                                    BOLT, FLANGE A805
                                    from £1.49
                                    from £1.49
                                    BOLT Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 90119-08C42
                                    BOLT, W/WASHER
                                    from £0.99
                                    from £0.99
                                    BOLT Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 88280-42010
                                    SWITCH ASSY, CLUTCH
                                    Switch Assembly Genuine Aston Martin - New (to order)
                                    # 15
                                    MPN: 84520-42010
                                    SWITCH ASSY, CLUTCH START
                                    from £30.59
                                    from £30.59
                                    Switch Assembly Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 90170-10017
                                    NUT
                                    from £1.05
                                    from £1.05
                                    NUT Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: AY2Y-2457-AB
                                    Pad Assy, Clutch
                                    PAD ASSEMBLY CLUTCH Genuine Aston Martin - New (to order)
