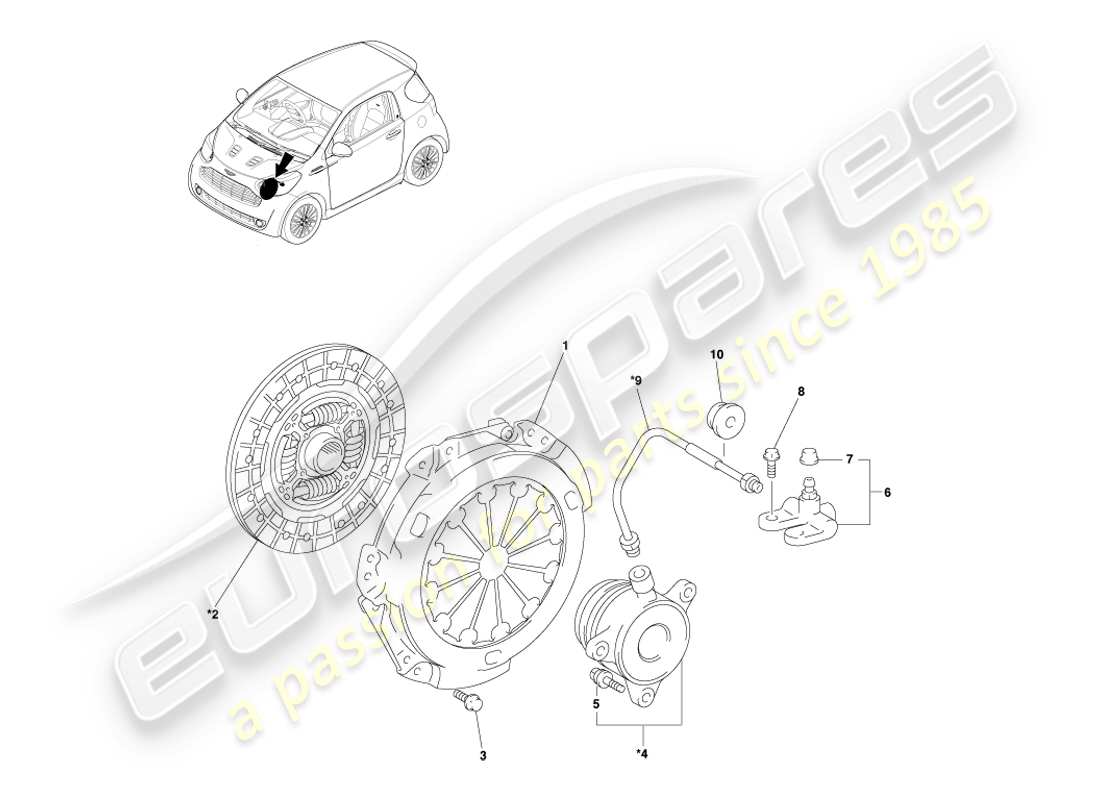

08.0201.03 - Clutch Assy and Release Cylinder

Aston Martin Cygnet (2012) Clutch Assy and Release Cylinder Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 31210-52130
                COVER ASSY, CLUTCH
                from £59.69
                from £59.69
                COVER ASSEMBLY Genuine Aston Martin - New (to order)
                # 2
                MPN: 31250-52120
                DISC ASSY, CLUTCH
                *05/2009 to 09/2010
                from £217.65
                from £217.65
                DISC ASSEMBLY Genuine Aston Martin - New (to order)
                # 2
                MPN: 31250-52210
                DISC ASSY, CLUTCH
                *From 10/2010
                from £114.85
                from £114.85
                DISC ASSEMBLY Genuine Aston Martin - New (to order)
                # 3
                MPN: 90119-08079
                SCREW SEATTRACK
                from £0.84
                from £0.84
                BOLT Genuine Aston Martin - New (to order)
                # 4
                MPN: 31400-79005
                CYLINDER ASSY, CLUTCH RELEASE BEARING
                *11/2008 to 05/2010
                CYLINDER ASSEMBLY CLUTCH RELEASE BEARING Genuine Aston Martin - New (to order)
                # 4
                MPN: 31400-79015
                CYLINDER ASSY, CLUTCH RELEASE BEARING
                *From 05/2010
                from £159.22
                from £159.22
                CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
                # 5
                MPN: 90119-08C91
                BOLT, W/WASHER
                from £1.15
                from £1.15
                BOLT Genuine Aston Martin - New (to order)
                # 6
                MPN: 31407-74010
                BLEEDER SUB-ASSY. CLUTCH RELEASE
                BLEEDER SUB-ASSY Genuine Aston Martin - New (to order)
                # 7
                MPN: 31478-30010
                CAP, BLEEDER PLUG
                CAP Genuine Aston Martin - New (to order)
                # 8
                MPN: 90105-W0112
                BOLT, FLANGE
                from £0.99
                from £0.99
                BOLT Genuine Aston Martin - New (to order)
                # 9
                MPN: 31482-74030
                TUBE, BLEEDER CLUTCH RELEASE
                *11/2008 to 05/2010
                from £8.20
                from £8.20
                TUBE Genuine Aston Martin - New (to order)
                # 9
                MPN: 31482-74040
                TUBE, BLEEDER CLUTCH RELEASE
                *From 05/2010
                TUBE Genuine Aston Martin - New (to order)
                # 10
                MPN: 31126-05010
                BOOT, CLUTCH TUBE
                from £16.63
                from £16.63
                BOOT Genuine Aston Martin - New (to order)
