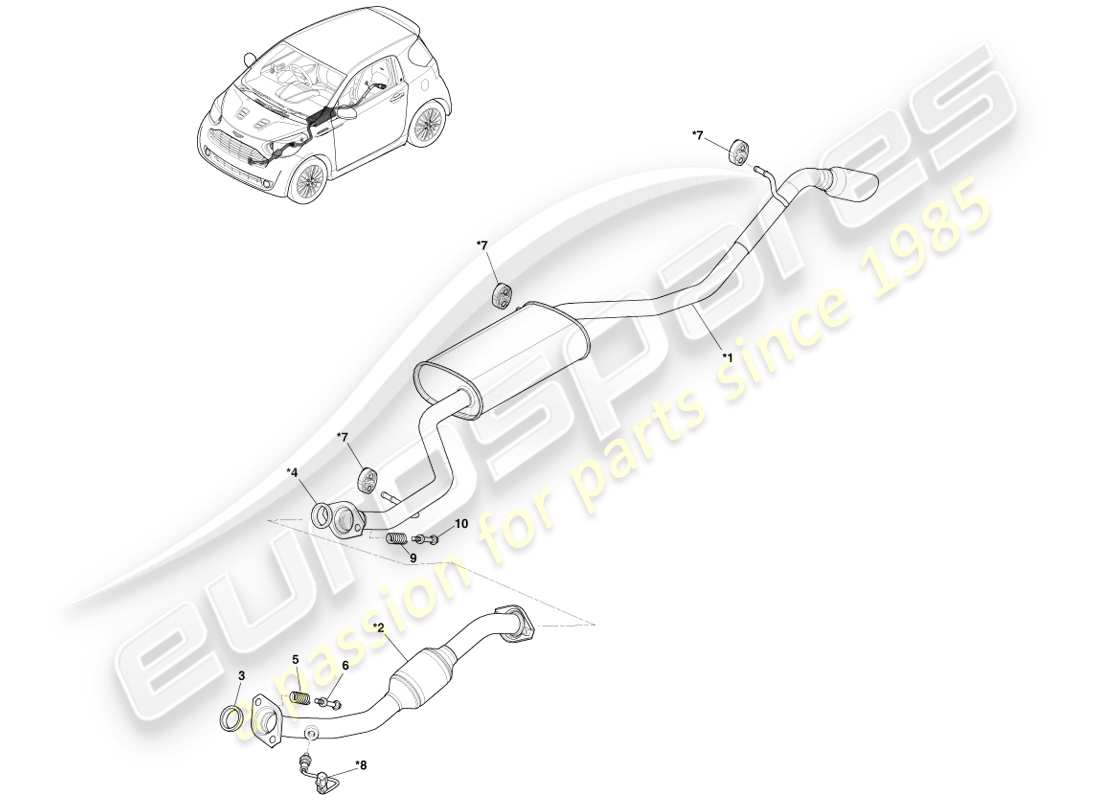

09.0502.01 - Exhaust System

Aston Martin Cygnet (2012) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 17430-47070
            Exhaust Pipe Assy, Tail
            * 05/2009 to 05/2010
            from £226.63
            from £226.63
            PIPE ASSEMBLY Genuine Aston Martin - New (to order)
            # 1
            MPN: 17430-47130
            Exhaust Pipe Assy, Tail
            * From 05/2010
            from £155.84
            from £155.84
            PIPE ASSEMBLY Genuine Aston Martin - New (to order)
            # 2
            MPN: 17410-47080
            EXHAUST PIPE ASSY, FRONT
            * 05/2009 to 05/2010
            from £768.11
            from £768.11
            PIPE ASSEMBLY Genuine Aston Martin - New (to order)
            # 2
            MPN: 17410-47190
            EXHAUST PIPE ASSY, FRONT
            * From 05/2010
            from £524.05
            from £524.05
            PIPE ASSEMBLY Genuine Aston Martin - New (to order)
            # 3
            MPN: 17451-21080
            GASKET
            from £15.34
            from £15.34
            GASKET Genuine Aston Martin - New (to order)
            # 4
            MPN: 17451-23041
            GASKET
            * 09/2010 to 10/2010
            from £12.21
            from £12.21
            GASKET Genuine Aston Martin - New (to order)
            # 4
            MPN: 17451-23042
            GASKET
            * From 10/2010
            from £7.25
            from £7.25
            GASKET Genuine Aston Martin - New (to order)
            # 5
            MPN: 90501-35037
            SPRING, COMPRESSION, EXHAUST
            from £6.06
            from £6.06
            SPRING Genuine Aston Martin - New (to order)
            # 6
            MPN: 90109-W0005
            BOLT, EXTENSION FLANGE EP91
            from £2.05
            from £2.05
            BOLT Genuine Aston Martin - New (to order)
            # 7
            MPN: 17565-0Q010
            SUPPORT, EXHAUST PIPE, NO.4
            * 09/2010 to 11/2010
            from £5.17
            from £5.17
            SUPPORT Genuine Aston Martin - New (to order)
            # 7
            MPN: 17565-47010
            SUPPORT, EXHAUST PIPE, NO.4
            * From 12/2010
            from £3.09
            from £3.09
            SUPPORT Genuine Aston Martin - New (to order)
            # 8
            MPN: 89465-74020
            SENSOR, OXYGEN
            * 05/2009 to 05/2010
            from £191.14
            from £191.14
            SENSOR Genuine Aston Martin - New (to order)
            # 8
            MPN: 89465-74030
            SENSOR, OXYGEN
            * From 05/2010
            from £197.52
            from £197.52
            SENSOR Genuine Aston Martin - New (to order)
            # 9
            MPN: 90501-W0007
            SPRING, COMPRESSION, EXHAUST
            from £4.83
            from £4.83
            SPRING Genuine Aston Martin - New (to order)
            # 10
            MPN: 90109-W0006
            BOLT HZB50
            from £1.29
            from £1.29
            BOLT Genuine Aston Martin - New (to order)
