12.0102.02 - Air Distribution Ducts

Aston Martin Cygnet (2012) Air Distribution Ducts Parts Diagram

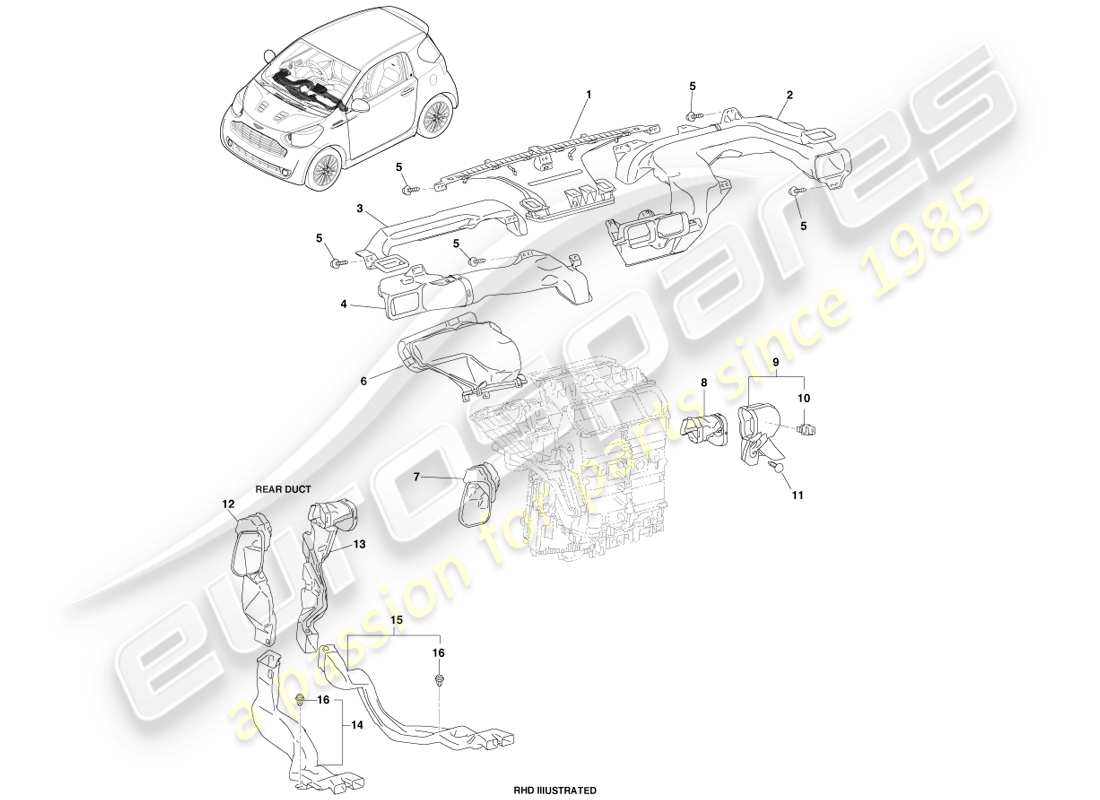

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 55950-74010
                        NOZZEL ASSY, DEFROSTER
                        NOZZLE ASSEMBLY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 55085-74020
                        DUCT SUB-ASSY, HEATER TO REGISTER, NO.2, RHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 55085-74010
                        DUCT SUB-ASSY, HEATER TO REGISTER, NO.2, LHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 55972-74020
                        DUCT, SIDE DEFROSTER NOZZEL, NO.2, RHD
                        DUCT Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 55972-74010
                        DUCT, SIDE DEFROSTER NOZZEL, NO.2, LHD
                        DUCT Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 55084-74020
                        DUCT SUB-ASSY, HEATER TO REGISTER, NO.1, RHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 55084-74010
                        DUCT SUB-ASSY, HEATER TO REGISTER, NO.1, LHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 93568-55014
                        SCREW, TAPPING
                        from £0.47
                        from £0.47
                        SCREW Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 87201-74110
                        DUCT SUB-ASSY, AIR, NO.4, RHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 87201-74120
                        DUCT SUB-ASSY, AIR, NO.4, LHD
                        from £47.87
                        from £47.87
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 87201-74030
                        DUCT SUB-ASSY, AIR, NO.1, RHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 87201-74080
                        DUCT SUB-ASSY, AIR, NO.1, LHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 87201-74020
                        DUCT SUB-ASSY, AIR, NO.2, RHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 87201-74070
                        DUCT SUB-ASSY, AIR, NO.2, LHD
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 87201-74170
                        DUCT SUB-ASSY, AIR, NO.3, RHD, MAN
                        Manual
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 87201-74010
                        Duct Sub-Assy, Air, No.3, RHD, AUTO
                        CVT
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 87201-74180
                        DUCT SUB-ASSY, AIR, NO.3, LHD, MAN
                        Manual
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 87201-74060
                        DUCT SUB-ASSY, AIR, NO.3, LHD, AUTO
                        CVT
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 88625-50130
                        THERMISTOR, COOLER
                        from £13.47
                        from £13.47
                        THERMISTOR Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 90467-08186-C0
                        CLIP, BLACK, FOR AIR DUCT
                        from £1.29
                        from £1.29
                        CLIP (FOR AIR DUCT) Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 87201-74100
                        DUCT SUB-ASSY, AIR, NO.1, COLD AREA SPEC, LHD
                        Cold Area spec
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 87201-74090
                        DUCT SUB-ASSY, AIR, NO.2, COLD AREA SPEC, LHD
                        Cold Area spec
                        DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 87230-74010
                        DUCT, AIR, REAR NO.2, COLD AREA SPEC, LHD
                        Cold Area spec
                        DUCT Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 87220-74010
                        DUCT, AIR, REAR NO.1, COLD AREA SPEC, LHD
                        Cold Area spec
                        DUCT Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 90467-W0009
                        CLIP
                        from £1.24
                        from £1.24
                        CLIP Genuine Aston Martin - New (to order)
