aston martin cygnet (2012) hvac unit parts diagram

12.0305.06 - HVAC UNIT

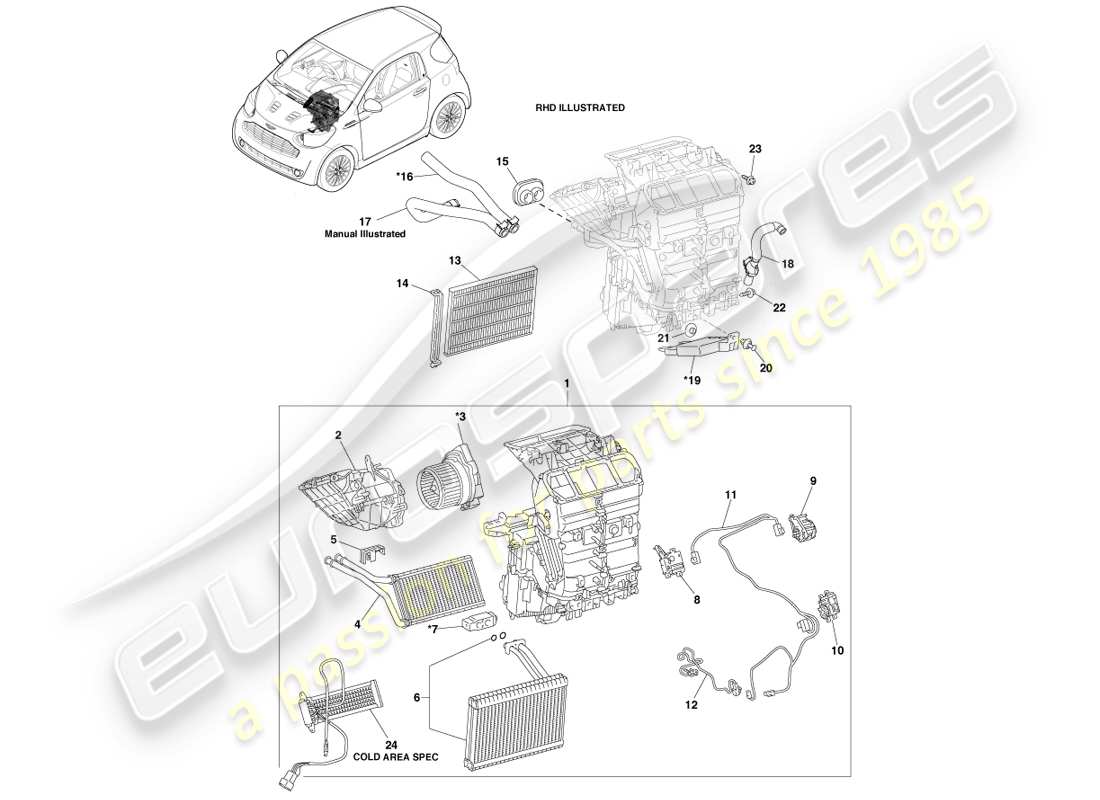

Aston Martin Cygnet (2012) HVAC Unit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 87010-74030
                                          UNIT ASSY, AIR CONDITIONER, RHD
                                          UNIT ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 1
                                          MPN: 87010-74080
                                          UNIT ASSY, AIR CONDITIONER, LHD
                                          from £1,774.64
                                          from £1,774.64
                                          UNIT ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 1
                                          MPN: 87010-74100
                                          UNIT ASSY, AIR CONDITIONER, COLD AREA SPEC, LHD
                                          UNIT ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 87200-74020
                                          ACCESSORY ASSY, HEATER, RHD
                                          ACCESSORY ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 87200-74040
                                          Accessory Assy, Heater, LHD
                                          ACCESSORY ASSEMBLY HEATER, LHD Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 87103-74021
                                          Motor Sub-Assy, Blower W/ Fan, RHD
                                          from £191.14
                                          from £191.14
                                          MOTOR SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 87103-74040
                                          Motor Sub-Assy, Blower W/ Fan, LHD
                                          *11/2008 to 12/2010
                                          MOTOR SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 87103-74041
                                          Motor Sub-Assy, Blower W/ Fan, LHD
                                          *From 01/2011
                                          MOTOR SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: 87107-74010
                                          Unit Sub-Assy, Heater Radiator
                                          UNIT SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 87237-74010
                                          COVER, COOLER NO.1
                                          COVER Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: 88501-74010
                                          EVAPORATOR SUB-ASSY, COOLER, NO.1
                                          from £419.90
                                          from £419.90
                                          EVAPORATOR SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: 88515-74010
                                          VALVE, COOLER EXPANSION
                                          *11/2008 to 10/2010
                                          from £170.20
                                          from £170.20
                                          VALVE Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: 88515-68010
                                          VALVE, COOLER EXPANSION
                                          *From 10/2010
                                          VALVE Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 87106-74030
                                          SERVO SUB-ASSY, DAMPER, NO.1, RHD
                                          SERVO SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 87106-74040
                                          SERVO SUB-ASSY, DAMPER, NO.1, LHD
                                          from £124.60
                                          from £124.60
                                          SERVO SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: 87106-74020
                                          SERVO SUB-ASSY, DAMPER, (FOR MODE)
                                          from £126.61
                                          from £126.61
                                          SERVO SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 87106-74010
                                          SERVO SUB-ASSY, DAMPER, (FOR AIRMIX)
                                          SERVO SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 82212-74010
                                          HARNESS ASSY, AIR CONDITIONER, RHD
                                          HARNESS ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 82212-74020
                                          HARNESS ASSY, AIR CONDITIONER, LHD
                                          from £168.62
                                          from £168.62
                                          HARNESS ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 88620-74010
                                          THERMISTOR, COOLER, NO.1
                                          THERMISTOR ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 88568-74011
                                          Filter, Clean Air
                                          Filter, Clean Air Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 88548-74010
                                          Case, Air Filter
                                          from £4.07
                                          from £4.07
                                          CASE Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: 87128-74010
                                          GROMMET, HEATER
                                          from £7.76
                                          from £7.76
                                          GROMMET Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 87245-74101
                                          HOSE, HEATER WATER, OUTLET, MAN
                                          *05/2009 to 02/2011
                                          HOSE Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 87245-74150
                                          HOSE, HEATER WATER, OUTLET, MAN
                                          *From 03/2011
                                          HOSE Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 87245-74101
                                          HOSE, HEATER WATER, OUTLET, AUTO
                                          HOSE Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: 87245-74110
                                          HOSE, HEATER WATER, INLET, MAN
                                          HOSE Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: 87245-74091
                                          HOSE, HEATER WATER, INLET, AUTO
                                          HOSE Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: 88505-74011
                                          DUCT SUB-ASSY, AIR CONDITIONER
                                          DUCT SUB-ASSY Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 88650-74031
                                          Amplifier Assy, Air Conditioner-Front Air Con-AUTO
                                          *05/2009 to 10/2010
                                          AMPLIFIER ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 88650-74032
                                          Amplifier Assy, Air Conditioner-Front Air Con-AUTO
                                          *From 11/2010
                                          AMPLIFIER ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 88650-74041
                                          Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC
                                          *05/2009 to 10/2010
                                          AMPLIFIER ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 88650-74042
                                          Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC
                                          *From 11/2010
                                          AMPLIFIER ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: 90467-07214
                                          CLIP
                                          from £1.18
                                          from £1.18
                                          CLIP Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: 90179-06282
                                          NUT
                                          from £1.18
                                          from £1.18
                                          NUT Genuine Aston Martin - New (to order)
                                          # 22
                                          MPN: 90159-60383
                                          SCREW W/WASHER TAPPING
                                          from £1.11
                                          from £1.11
                                          SCREW Genuine Aston Martin - New (to order)
                                          # 23
                                          MPN: 90159-70003
                                          SCREW W/WASHER
                                          from £1.10
                                          from £1.10
                                          SCREW Genuine Aston Martin - New (to order)
                                          # 24
                                          MPN: 87710-74030
                                          QUICK HEATER ASSY, COLD AREA SPEC
                                          QUICK HEATER ASSEMBLY Genuine Aston Martin - New (to order)
