aston martin cygnet (2012) ip harness parts diagram

18.0102.06 - IP Harness

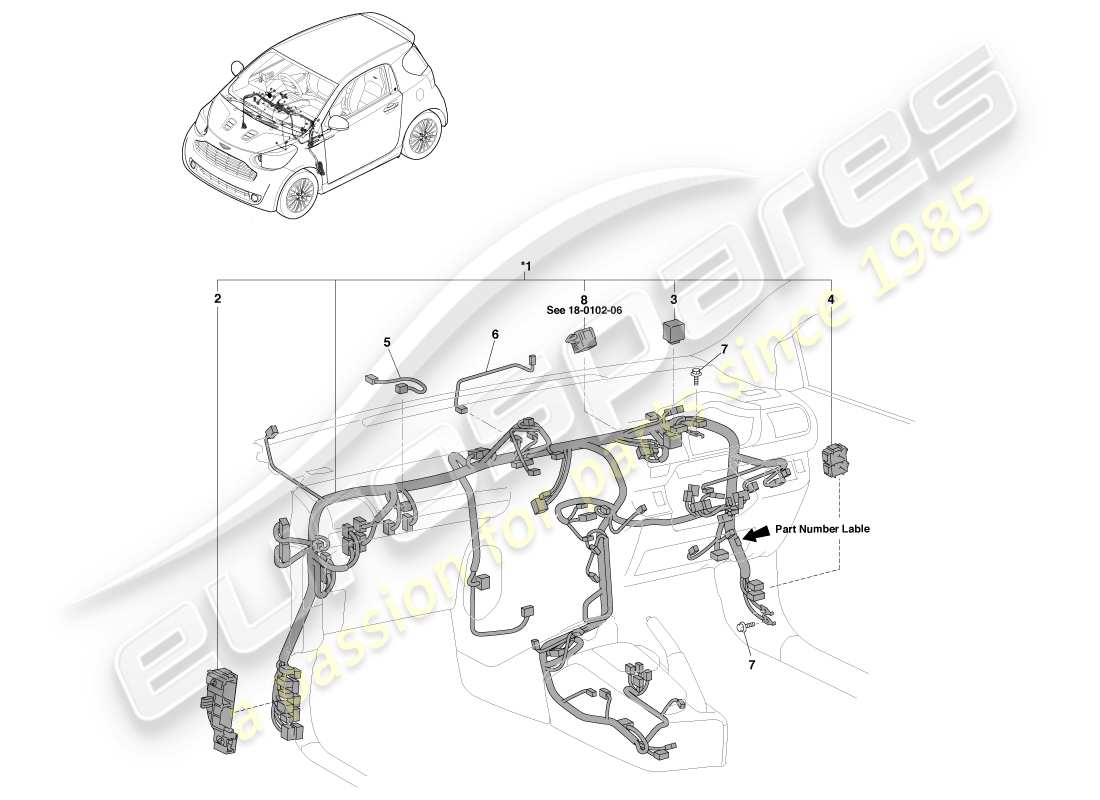

Aston Martin Cygnet (2012) IP Harness Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 82141-74171
                Harness, Instrument Panel, RHD, AUTO
                *To 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74172
                Harness, Instrument Panel, RHD, AUTO
                *From 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74191
                HARNESS, INSTRUMENT PANEL, LHD, AUTO
                *To 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74192
                HARNESS, INSTRUMENT PANEL, LHD, AUTO
                *From 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74231
                Harness, Instrument Panel, COLD CLIMATE SPEC, LHD, AUTO
                *To 05/2011
                Harness, Instrument Panel, COLD CLIMATE SPEC, LHD, AUTO Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74232
                Harness, Instrument Panel, COLD CLIMATE SPEC, LHD, AUTO
                *From 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74281
                HARNESS, INSTRUMENT PANEL, RHD, MAN
                *To 05/2011
                from £813.72
                from £813.72
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74282
                HARNESS, INSTRUMENT PANEL, RHD, MAN
                *From 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74311
                HARNESS, INSTRUMENT PANEL, LHD, MAN
                *To 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74312
                HARNESS, INSTRUMENT PANEL, LHD, MAN
                *From 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74321
                Harness, Instrument Panel, COLD CLIMATE SPEC, LHD, MAN
                *To 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 1
                MPN: 82141-74322
                Harness, Instrument Panel, COLD CLIMATE SPEC, LHD, MAN
                *From 05/2011
                WIRE Genuine Aston Martin - New (to order)
                # 2
                MPN: 82666-74010
                HOLDER, CONNECTOR NO.3
                HOLDER Genuine Aston Martin - New (to order)
                # 3
                MPN: 82671-74010
                BLOCK, JUNCTION
                BLOCK Genuine Aston Martin - New (to order)
                # 4
                MPN: 82666-22140
                HOLDER, CONNECTOR NO.2
                HOLDER Genuine Aston Martin - New (to order)
                # 5
                MPN: 82140-74010
                WIRE, INSTRUMENT PANEL, NO.2
                WIRE Genuine Aston Martin - New (to order)
                # 6
                MPN: 82142-74010
                WIRE, INSTRUMENT PANEL, NO.2, AUTO AIR CONDITIONING
                WIRE Genuine Aston Martin - New (to order)
                # 7
                MPN: 90119-06915
                SCREW
                from £0.81
                from £0.81
                BOLT Genuine Aston Martin - New (to order)
                # 8
                MPN: 82660-74010
                BLOCK ASSY, RELAY
                BLOCK ASSEMBLY Genuine Aston Martin - New (to order)
