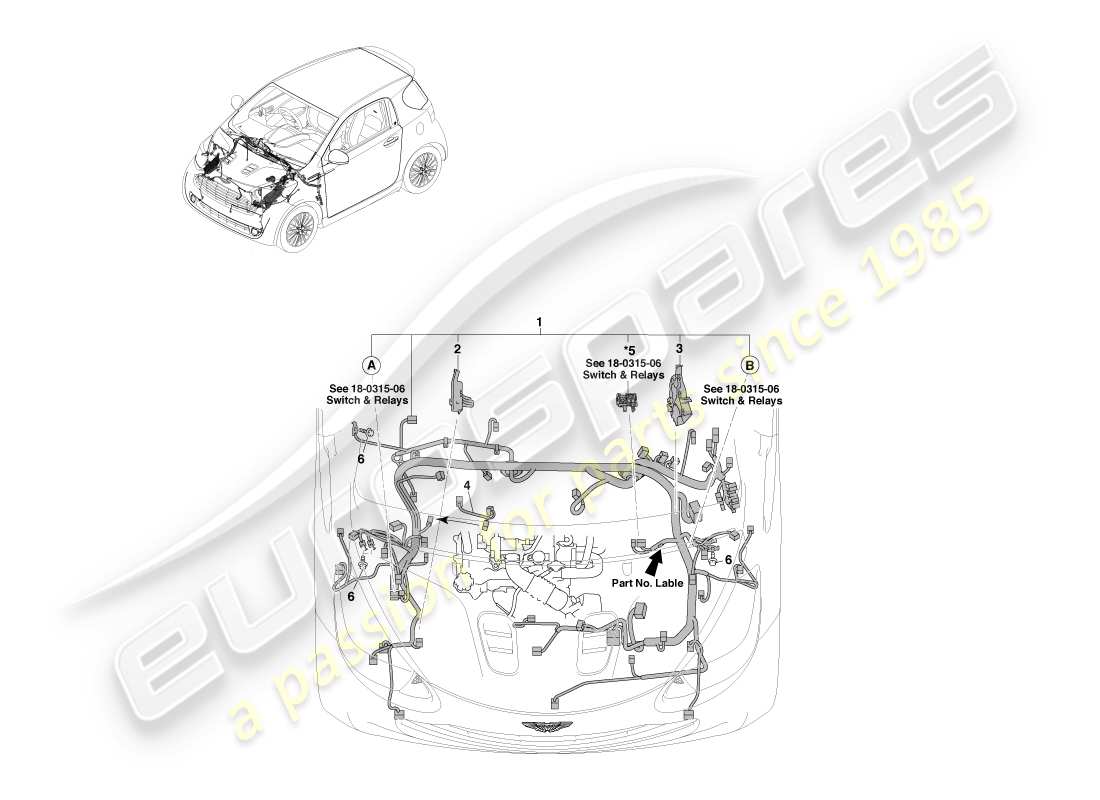

18.0111.06 - Engine Compartment Wiring Page 1

Aston Martin Cygnet (2012) Engine Compartment Wiring Page 1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 82111-74341
            HARNESS, ENGINE ROOM MAIN, RHD, AUTO
            WIRE Genuine Aston Martin - New (to order)
            # 1
            MPN: 82111-74361
            HARNESS, ENGINE ROOM MAIN, LHD, AUTO
            from £1,273.46
            from £1,273.46
            WIRE Genuine Aston Martin - New (to order)
            # 1
            MPN: 82111-74381
            HARNESS, ENGINE ROOM MAIN, COLD CLIMATE SPEC, LHD, AUTO
            WIRE Genuine Aston Martin - New (to order)
            # 1
            MPN: 82111-74451
            HARNESS, ENGINE ROOM MAIN, RHD, MAN
            from £1,258.72
            from £1,258.72
            WIRE Genuine Aston Martin - New (to order)
            # 1
            MPN: 82111-74471
            HARNESS, ENGINE ROOM MAIN, LHD, MAN
            WIRE Genuine Aston Martin - New (to order)
            # 1
            MPN: 82111-74491
            HARNESS, ENGINE ROOM MAIN, COLD CLIMATE SPEC, LHD, MAN
            WIRE Genuine Aston Martin - New (to order)
            # 2
            MPN: 82817-74110
            PROTECTOR, WIRING HARNESS, NO.2
            PROTECTOR Genuine Aston Martin - New (to order)
            # 3
            MPN: 82817-74010
            PROTECTOR, WIRING HARNESS, NO.1, RHD
            PROTECTOR Genuine Aston Martin - New (to order)
            # 3
            MPN: 82817-74130
            PROTECTOR, WIRING HARNESS, NO.1, LHD
            PROTECTOR Genuine Aston Martin - New (to order)
            # 4
            MPN: 89423-74020
            HARNESS, VACUUM SENSOR, RHD
            HARNESS, VACUUM SENSOR, RHD Genuine Aston Martin - New (to order)
            # 4
            MPN: 89423-74010
            HARNESS, VACUUM SENSOR, LHD
            HARNESS, VACUUM SENSOR, LHD Genuine Aston Martin - New (to order)
            # 5
            MPN: 82620-52050
            BLOCK ASSY, FUSIBLE LINK
            *11/2008 to 08/2010
            from £13.62
            from £13.62
            BLOCK ASSEMBLY Genuine Aston Martin - New (to order)
            # 5
            MPN: 82620-52070
            BLOCK ASSY, FUSIBLE LINK
            *From 09/2010
            from £7.97
            from £7.97
            BLOCK ASSEMBLY Genuine Aston Martin - New (to order)
            # 6
            MPN: 90119-06915
            SCREW
            from £0.81
            from £0.81
            BOLT Genuine Aston Martin - New (to order)
