5.4 - Handbrake

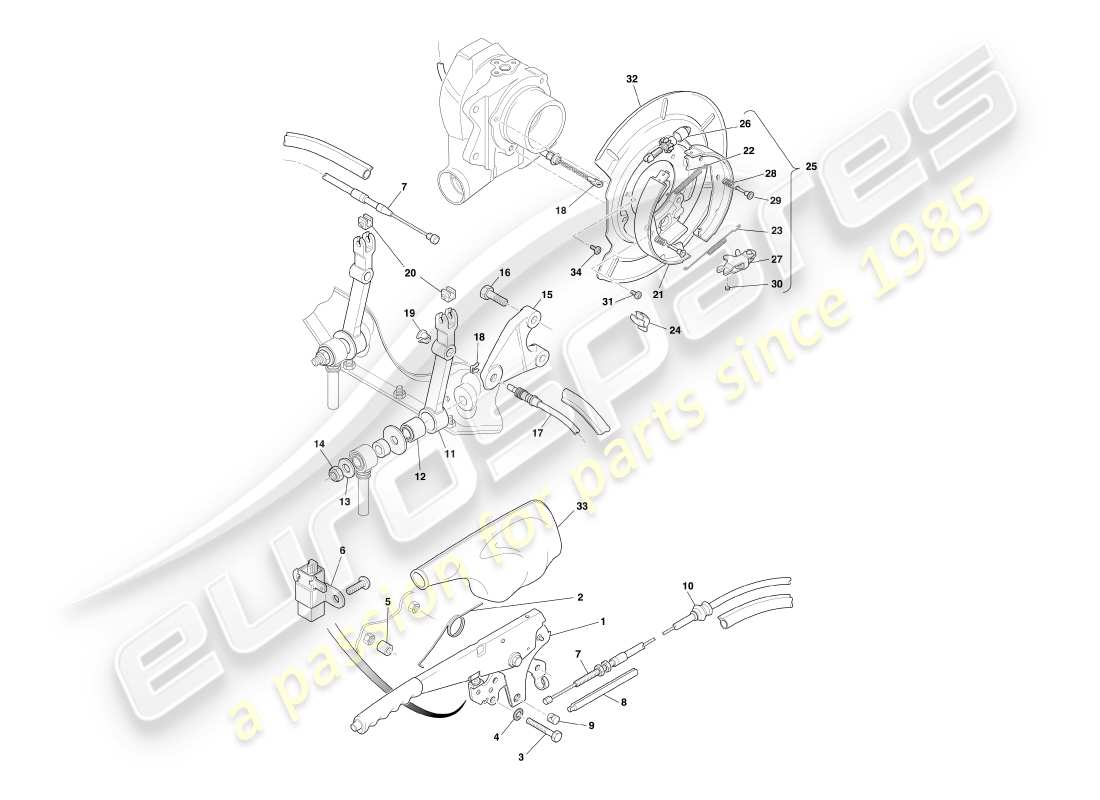

Aston Martin DB7 Vantage (2003) Handbrake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 30-90156
HANDBRAKE HANDLEVER ASSEMBLY
RHD
from £164.64
from £164.64
# 1
MPN: 30-90157
HANDBRAKE HANDLEVER ASSEMBLY
LHD
from £164.64
from £164.64
# 2
MPN: 30-83437
RETURN SPRING
RHD
from £3.27
from £3.27
# 2
MPN: 30-83438
RETURN SPRING
LHD
from £36.82
from £36.82
# 3
MPN: 697192
BOLT, M8X25
from £3.49
from £3.49
# 4
-
WASHER, SHAKEPROOF
# 5
MPN: 30-83439
SPACER
from £2.28
from £2.28
# 6
MPN: 37-84687
switch - handbrake
RHD
from £211.30
from £211.30
# 6
MPN: 37-84688
switch - handbrake
LHD
from £203.75
from £203.75
# 7
MPN: 30-83218
HANDBRAKE CABLE - FRONT
from £655.12
from £655.12
# -
-
CABLE, HANDBRAKE
Zagato
# 8
MPN: 30-123671-AA
EXTENSION TUBE
from £3.76
from £3.76
# 9
MPN: 30-83441
TRUNNION - HANDBRAKE CABLE
from £4.82
from £4.82
# 10
MPN: 30-80530
GAITER
from £1.21
from £1.21
# -
-
SLEEVE - CABLE PROTECTION, THERMAL
# 11
MPN: 30-80535
RATIO LEVER - PARKING BRAKE
from £34.95
from £34.95
# 12
MPN: 30-80536
BUSH - BONDED DOUBLE
from £6.95
from £6.95
# 13
MPN: 28-80512
WASHER, PLAIN, M12
# 14
MPN: 697205
NUT, NYLOC, 1/2 UNF
from £0.79
from £0.79
# 15
MPN: 30-80542
ABUTMENT BRACKET - PARKING BRAKE - LH
from £73.69
from £73.69
# 15
MPN: 30-80541
ABUTMENT BRACKET - PARKING BRAKE - RH
from £73.69
from £73.69
# 16
MPN: 28-80511
BOLT, 7/16 UNF X 1 5/8
from £0.76
from £0.76
# 17
MPN: 30-84493
CABLE ASSEMBLY - PARKING BRAKE REAR
from £216.07
from £216.07
# 18
MPN: 30-80543
CIRCLIP
from £0.65
from £0.65
# 19
MPN: 30-80544
COLLET, PARKING BRAKE CABLE
from £4.60
from £4.60
# 20
MPN: 30-80545
PIVOT ABUTMENT, PARKING BRAKE CABLE
from £22.83
from £22.83
# 21
MPN: 28-83211
KIT, BRAKE SHOES (FOUR SHOES)
Supersession
Supersession
# 22
MPN: 28-81769
TENSION SPRING
from £4.97
from £4.97
# 23
MPN: 28-81770
TENSION SPRING
from £70.63
from £70.63
# 24
MPN: 30-80539
CLIP
from £4.99
from £4.99
# 25
MPN: 28-81771
PARKING BRAKE REPAIR KIT
from £443.26
from £443.26
# 26
MPN: 28-81772
ADJUSTER ASSEMBLY
from £70.82
from £70.82
# 27
MPN: 28-81773
PARKING BRAKE LEVER
from £102.86
from £102.86
# 28
MPN: 28-81774
COMPRESSION SPRING
2 per side
from £3.92
from £3.92
# 29
MPN: 28-81775
PARKING BRAKE PIN
2 per side
from £6.60
from £6.60
# 30
MPN: 28-81777
BRAKE LEVER PIN
from £3.34
from £3.34
# 31
MPN: 28-84700
SCREW, TORX HD, M10X30
from £1.00
from £1.00
# 32
MPN: 30-122658-AA
BACKPLATE, DRUM PARKBRAKE, RH
from £136.58
from £136.58
# 32
MPN: 30-122659-AA
BACKPLATE, DRUM PARKBRAKE, LH
from £129.37
from £129.37
# -
-
FIXING GROMMET
# -
-
TIE STRAP
# 33
MPN: 83-122766-AAW
COVER ASSEMBLY, HANDBRAKE TRIM
RHD
from £165.41
from £165.41
# 33
MPN: 83-122767-AAW
COVER ASSEMBLY, HANDBRAKE TRIM
LHD
from £98.69
from £98.69
# 34
MPN: 697651
SCREW, TAPTITE, PAN HD
from £3.03
from £3.03
# -
-
DRUM, PARKING BRAKE, RH GT UPGRADE
optional
# -
-
DRUM, PARKING BRAKE, LH GT UPGRADE
optional
# -
-
DRUM, PARKING BRAKE, RH GT
GT
# -
-
DRUM, PARKING BRAKE, LH GT
GT
# -
-
BUFFER
# -
-
SPACER TUBE, GT
GT
