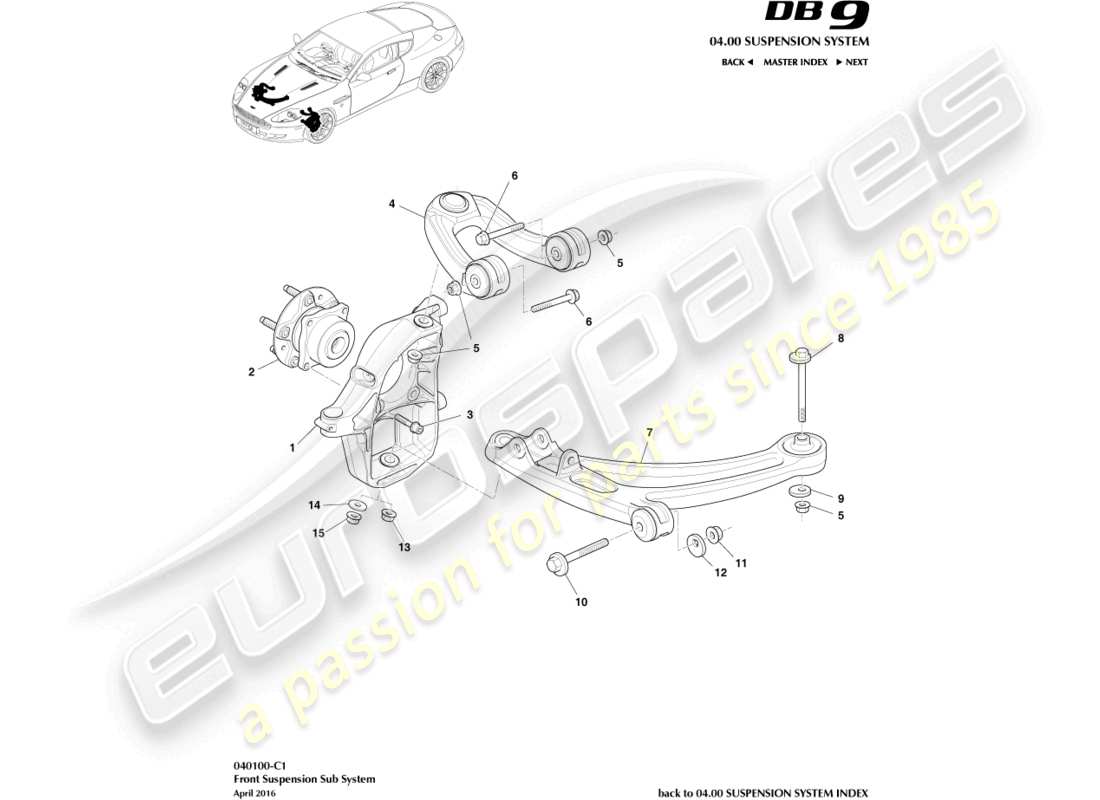

040100-C1 - Front Suspension Assembly

Aston Martin DB9 (2004) Front Suspension Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 7G43-3K186-AB
                  KNUCKLE FRONT, RH
                  from £1,258.33
                  from £1,258.33
                  KNUCKLE, FRONT, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 7G43-3K185-AB
                  KNUCKLE FRONT, LH
                  from £153.69
                  from £153.69
                  KNUCKLE, FRONT, LH Genuine Aston Martin - New (to order)
                  KNUCKLE, FRONT, LH Genuine Aston Martin - Used In stock
                  # 2
                  MPN: 4G43-2B663-AD
                  HUB AND BEARING ASSY
                  from £182.58
                  from £182.58
                  HB & BRG ASY FRONT BRK Genuine Aston Martin - New (to order)
                  HB & BRG ASY FRONT BRK Genuine Aston Martin - Used In stock
                  # 3
                  MPN: 4G43-0783-AA
                  BOLT, M10 X 55 GRD 10.9
                  Bearing to Knuckle
                  BOLT, M10 X 55 GRD 10.9 Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 8D33-3084-AC
                  ARM ASSY, UPPER, FRONT SUSPEN, RH
                  11MY (also 10.7MY with ADS)
                  from £410.43
                  from £410.43
                  ARM ASSEMBLY, UPPER, FRONT SUSPEN, RH Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-3084-AB
                  ARM ASSY, UPPER, FRONT SUSPEN, RH
                  09MY
                  from £398.48
                  from £398.48
                  ARM ASSEMBLY FRONT SUSP UPR Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-3084-BE
                  ARM ASSY, UPPER, FRONT SUSPEN, RH
                  Pre 09MY
                  from £219.16
                  from £219.16
                  ARM ASSEMBLY, UPPER, FRONT SUSPEN, RH Genuine Aston Martin - New (to order)
                  ARM ASSEMBLY, UPPER, FRONT SUSPEN, RH Genuine Aston Martin - Used In stock
                  # 4
                  MPN: 8D33-3091-AC
                  ARM ASSY, UPPER, FRONT SUSPEN, LH
                  11MY (also 10.7MY with ADS)
                  from £410.43
                  from £410.43
                  ARM ASSEMBLY, UPPER, FRONT SUSPEN, LH Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-3091-AB
                  ARM ASSY, UPPER, FRONT SUSPEN, LH
                  09MY
                  from £398.48
                  from £398.48
                  ARM ASSEMBLY FRONT SUSP UPR Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-3091-BE
                  ARM ASSY, UPPER, FRONT SUSPEN, LH
                  Pre 09MY
                  from £219.16
                  from £219.16
                  ARM ASSEMBLY, UPPER, FRONT SUSPEN, LH Genuine Aston Martin - New (to order)
                  ARM ASSEMBLY, UPPER, FRONT SUSPEN, LH Genuine Aston Martin - Used In stock
                  # 5
                  MPN: 703565
                  NUT, M12 HEX FLG
                  from £0.77
                  from £0.77
                  This part replaces part number 699876
                  NUT-M12 HEX FLG PLAS Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 703180
                  BOLT, M12 X 90
                  BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 8D33-3A052-AC
                  ARM ASSY, LOWER FRONT SUSPENS, RH
                  09MY
                  from £459.74
                  from £459.74
                  ARM & BSHG ASSEMBLY RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-3A052-BE
                  ARM ASSY, LOWER FRONT SUSPENS, RH
                  Pre 09MY
                  ARM ASSEMBLY, LOWER FRONT SUSPENS, RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 8D33-3A053-AC
                  ARM ASSY, LOWER FRONT SUSPENS, LH
                  09MY
                  from £459.74
                  from £459.74
                  ARM & BSHG ASSEMBLY LH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-3A053-BF
                  ARM ASSY, LOWER FRONT SUSPENS, LH
                  Pre 09MY
                  ARM ASSEMBLY, LOWER FRONT SUSPENS, LH Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 4G43-3B236-BB
                  BOLT, M12, ECCENTRIC
                  from £39.31
                  from £39.31
                  CAM & BOLT ASSEMBLY FRONT Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 4G43-3B237-BB
                  WASHER, M12, ECCENTRIC
                  from £6.75
                  from £6.75
                  WASHER M12 ECCENTRIC Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 4G43-3B236-CB
                  BOLT, CAM, M14
                  from £16.51
                  from £16.51
                  CAM BOLT M14 Genuine Aston Martin - New In stock
                  # 11
                  MPN: 701337
                  NUT M14, HEX FLG
                  Supersession
                  Supersession
                  Genuine Aston Martin (no longer available to order)
                  # 12
                  MPN: 4G43-3B237-CA
                  WASHER, CAM
                  08MY From (V) A09110
                  from £6.53
                  from £6.53
                  CAM WASHER - FRONT LCA Genuine Aston Martin - New In stock
                  # 12
                  MPN: 1R12-232726-AB
                  WASHER, CAM
                  07MY
                  from £8.22
                  from £8.22
                  WASHER, CAM Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 701578
                  NUT AND WASHER, M12
                  07MY
                  NUT AND WASHER, M12 Genuine Aston Martin - New (to order)
                  # 14
                  MPN: GG33-39078-AA
                  WASHER
                  08MY From VIN A09110
                  from £10.21
                  from £10.21
                  WASHER Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 703565
                  NUT, M12 HEX
                  08MY From VIN A09110
                  from £0.77
                  from £0.77
                  This part replaces part number 699876
                  NUT-M12 HEX FLG PLAS Genuine Aston Martin - New (to order)
