aston martin db9 (2004) transaxle, manual parts diagram

070300-R1 - Transaxle, Manual

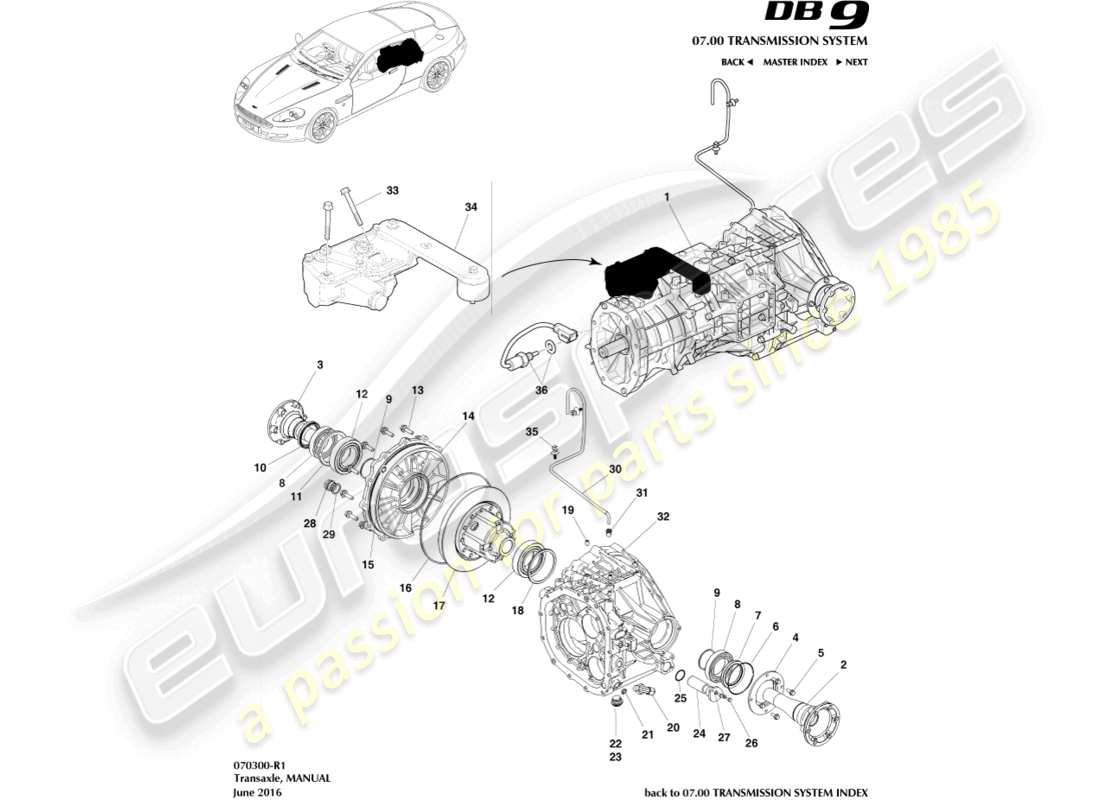

Aston Martin DB9 (2004) Transaxle, Manual Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 1
                                                                            MPN: 4G43-7002-AD
                                                                            TRANSAXLE ASSY, COMPLETE, MANUAL
                                                                            TRANSAXLE ASSEMBLY, COMPLETE, MANUAL Genuine Aston Martin - New (to order)
                                                                            # 2
                                                                            MPN: 4G43-27-10600
                                                                            OUTPUT SHAFT, DIFFERENTIAL LS
                                                                            from £731.13
                                                                            from £731.13
                                                                            O'PUT SHAFT-LFT SIDE Genuine Aston Martin - New (to order)
                                                                            # 3
                                                                            MPN: 4G43-27-10601
                                                                            OUTPUT SHAFT, DIFFERENTIAL RS
                                                                            from £533.88
                                                                            from £533.88
                                                                            O PUT SHAFT-RHT SIDE Genuine Aston Martin - New (to order)
                                                                            # 4
                                                                            MPN: 4G43-27-10602
                                                                            BEARING, DIFFERENTIAL OUTPUT SHAFT, LH
                                                                            from £58.97
                                                                            from £58.97
                                                                            RETAINER, DIF OUTPUT SHAFT BEARING Genuine Aston Martin - New (to order)
                                                                            # 5
                                                                            MPN: 702812
                                                                            BOLT, M6X16 FLANGE
                                                                            from £0.73
                                                                            from £0.73
                                                                            BOLT M6 X 16 FLANGE Genuine Aston Martin - New (to order)
                                                                            # 6
                                                                            MPN: 4G43-27-10482
                                                                            O RING, 2.62X75.87
                                                                            from £7.38
                                                                            from £7.38
                                                                            O RING 2.62 X 75.87 Genuine Aston Martin - New (to order)
                                                                            # 7
                                                                            MPN: 4G43-27-10483
                                                                            SEAL, LIP, 55X72X8
                                                                            from £45.58
                                                                            from £45.58
                                                                            SEAL-DIFFOUTPUT-LEFT Genuine Aston Martin - New (to order)
                                                                            # 8
                                                                            MPN: 4G43-27-10603
                                                                            BEARING, DIFFERENTIAL OUTPUT SHAFT
                                                                            from £125.22
                                                                            from £125.22
                                                                            BEARING, DIFFERENTIAL OUTPUT SHAFT Genuine Aston Martin - New (to order)
                                                                            # 9
                                                                            MPN: 702813
                                                                            SHIM
                                                                            from £2.61
                                                                            from £2.61
                                                                            SHIM Genuine Aston Martin - New (to order)
                                                                            # 10
                                                                            MPN: 4G43-27-10604
                                                                            SEAL, DIFFERENTIAL OUTPUT RH
                                                                            from £45.13
                                                                            from £45.13
                                                                            SEAL-DIFFOUTPUT SHFT Genuine Aston Martin - New (to order)
                                                                            # 11
                                                                            MPN: 702814
                                                                            SHIM
                                                                            from £101.80
                                                                            from £101.80
                                                                            SHIM Genuine Aston Martin - New (to order)
                                                                            # 12
                                                                            MPN: 4G43-27-10605
                                                                            BEARING, DIFFERENTIAL OUTPUT
                                                                            from £188.38
                                                                            from £188.38
                                                                            BEARING, DIFFERENTIAL OUTPUT Genuine Aston Martin - New (to order)
                                                                            # 13
                                                                            MPN: 702815
                                                                            BOLT, M8X30
                                                                            from £3.09
                                                                            from £3.09
                                                                            BOLT M8 X 30 Genuine Aston Martin - New (to order)
                                                                            # 14
                                                                            MPN: 4G43-27-10606
                                                                            COVER, DIFFERENTIAL
                                                                            from £951.28
                                                                            from £951.28
                                                                            COVER, DIFFERENTIAL Genuine Aston Martin - New (to order)
                                                                            # 15
                                                                            MPN: 4G43-27-10502
                                                                            O RING 2.62X9.92
                                                                            from £1.07
                                                                            from £1.07
                                                                            O RING 2.69 X 9.92 Genuine Aston Martin - New (to order)
                                                                            # 16
                                                                            MPN: 4G43-27-10607
                                                                            SEAL, COVER
                                                                            from £73.75
                                                                            from £73.75
                                                                            SEAL, COVER Genuine Aston Martin - New (to order)
                                                                            # 17
                                                                            MPN: 4G43-27-10608
                                                                            CROWN WHEEL, DIFFERENTIAL
                                                                            CROWN WHEEL, DIFFERENTIAL Genuine Aston Martin - New (to order)
                                                                            # 18
                                                                            MPN: 702816
                                                                            SHIM
                                                                            from £40.85
                                                                            from £40.85
                                                                            SHIM Genuine Aston Martin - New (to order)
                                                                            # 19
                                                                            MPN: 702817
                                                                            SET SCREW, M8X10
                                                                            from £4.26
                                                                            from £4.26
                                                                            SET SCREW, M8X10 Genuine Aston Martin - New (to order)
                                                                            # 20
                                                                            MPN: 4G43-27-10609
                                                                            PIPE, TRANS COOLING, 90°
                                                                            PIPE, TRANS COOLING, 90° Genuine Aston Martin - New (to order)
                                                                            # 21
                                                                            MPN: 702818
                                                                            PLUG
                                                                            from £2.04
                                                                            from £2.04
                                                                            PLUG Genuine Aston Martin - New (to order)
                                                                            # 22
                                                                            MPN: 702819
                                                                            PLUG, OIL DRAIN
                                                                            PLUG, OIL DRAIN Genuine Aston Martin - New (to order)
                                                                            # 23
                                                                            MPN: 702820
                                                                            WASHER, OIL DRAIN PLUG
                                                                            WASHER, OIL DRAIN PLUG Genuine Aston Martin - New (to order)
                                                                            # 24
                                                                            MPN: 4G43-27-10490
                                                                            FILTER, OIL
                                                                            from £122.50
                                                                            from £122.50
                                                                            OIL FILTER Genuine Aston Martin - New (to order)
                                                                            # 25
                                                                            MPN: 4G43-27-10491
                                                                            O RING, 2.62X20.63
                                                                            from £2.71
                                                                            from £2.71
                                                                            O RING, 2.62X20.63 Genuine Aston Martin - New In stock
                                                                            # 26
                                                                            MPN: 4G43-27-10492
                                                                            SCREW, M5X0.8X12
                                                                            from £1.90
                                                                            from £1.90
                                                                            SCREW M5 X 12 Genuine Aston Martin - New (to order)
                                                                            # 27
                                                                            MPN: 702821
                                                                            WASHER, 5.3X0.5
                                                                            from £2.53
                                                                            from £2.53
                                                                            WASHER, 5.3X0.5 Genuine Aston Martin - New (to order)
                                                                            # 28
                                                                            MPN: 4G43-27-10493
                                                                            PLUG, OIL LEVEL M22X1.5
                                                                            from £8.56
                                                                            from £8.56
                                                                            PLUG - OIL LEVEL M22 Genuine Aston Martin - New (to order)
                                                                            # 29
                                                                            MPN: 4G43-27-10245
                                                                            SEAL, FLAT 22X28X1.5
                                                                            from £2.67
                                                                            from £2.67
                                                                            SEAL, FLAT 22X28X1.5 Genuine Aston Martin - New (to order)
                                                                            # 30
                                                                            MPN: 4G43-7A245-CA
                                                                            PIPE, BREATHER, TRANSAXLE, MANUAL
                                                                            from £10.78
                                                                            from £10.78
                                                                            PIPE, BREATHER, TRANSAXLE, MANUAL Genuine Aston Martin - New (to order)
                                                                            # 31
                                                                            MPN: 4G43-27-10610
                                                                            ADAPTOR, BREATHER PIPE, TRANSAXLE
                                                                            ADAPTOR, BREATHER PIPE, TRANSAXLE Genuine Aston Martin - New (to order)
                                                                            # 32
                                                                            MPN: 4G43-27-10611
                                                                            HOUSING, DIFFERENTIAL
                                                                            from £3,014.12
                                                                            from £3,014.12
                                                                            HOUSING, DIFFERENTIAL Genuine Aston Martin - New (to order)
                                                                            # 33
                                                                            MPN: 702822
                                                                            BOLT, M6X50
                                                                            from £3.32
                                                                            from £3.32
                                                                            BOLT M6 X 50 Genuine Aston Martin - New (to order)
                                                                            # 34
                                                                            MPN: 6G33-7N372-AB
                                                                            BELLCRANK ASSY, TRANSAXLE
                                                                            from £6,594.81
                                                                            from £6,594.81
                                                                            BELLCRANK ASSEMBLY, TRANSAXLE Genuine Aston Martin - New (to order)
                                                                            # 35
                                                                            MPN: 701575
                                                                            CLIP, PIPE
                                                                            from £0.47
                                                                            from £0.47
                                                                            CLIP 6.0X6.5X0.8-6 Genuine Aston Martin - New (to order)
                                                                            # 36
                                                                            MPN: 6G33-8F875-AA
                                                                            KIT, SWITCH, REVERSE LIGHT
                                                                            from £166.87
                                                                            from £166.87
                                                                            SWITCH, REVERSE LIGHT Genuine Aston Martin - New (to order)
                                                                            # -
                                                                            -
                                                                            GREASE, TRANSMISSION MANUAL
                                                                            # -
                                                                            -
                                                                            PINION AND BEVEL GEAR SET
                                                                            # -
                                                                            -
                                                                            OIL, TRANSAXLE
