aston martin db9 (2004) sat nav display, 12my on parts diagram

190703-20 - Sat Nav Display, 12MY on

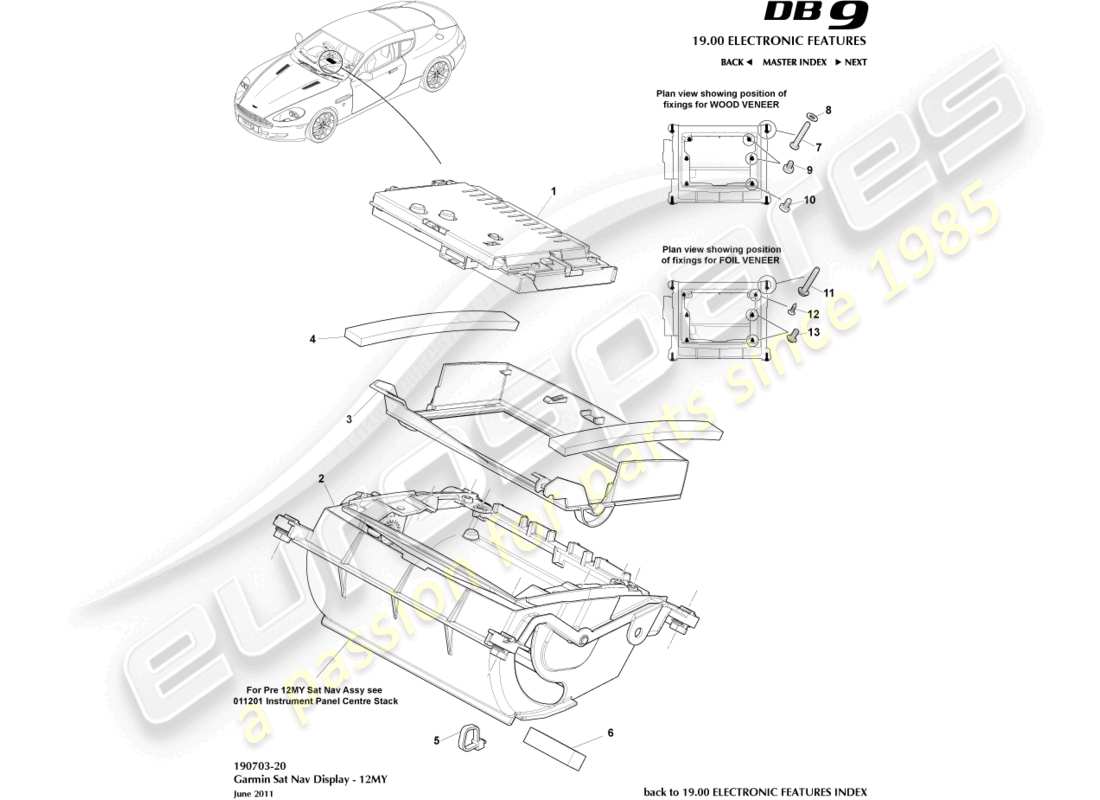

Aston Martin DB9 (2004) Sat Nav Display, 12MY on Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: ED33-10E889-AA
              DISPLAY UNIT, NAV, EPSON
              from £879.53
              from £879.53
              EIZO DISPLAY SCREEN Genuine Aston Martin - New (to order)
              # 2
              MPN: CG43-10E990-AD
              SUPPORT ASSEMBLY, NAV SCREEN
              from £384.70
              from £384.70
              SUPPORT ASSEMBLY, NAV SCREEN Genuine Aston Martin - New (to order)
              # 3
              MPN: CG43-18C918-AB
              BRACKET, NAV BEZEL
              from £236.73
              from £236.73
              BRACKET NAV BZL Genuine Aston Martin - New (to order)
              # 4
              MPN: CG43-3G4610-AA
              FOAM STRIP, NAV ASSEMBLY
              from £0.84
              from £0.84
              FOAM STRIP NAV ASSY Genuine Aston Martin - New (to order)
              # 5
              MPN: 37-90075
              TIE WRAP
              from £0.47
              from £0.47
              TIE STRAP-290MM Genuine Aston Martin - New (to order)
              # 6
              MPN: 8D33-19H474-AA
              ANTI RATTLE HOLDER
              from £0.47
              from £0.47
              ANTI/RTL HLDR TRANS Genuine Aston Martin - New (to order)
              # 7
              MPN: CG43-56382-AB
              SCREW M4X22 PAN
              Wood Veneer Only
              from £2.01
              from £2.01
              SCREW-M4 X 22 PAN Genuine Aston Martin - New (to order)
              # 8
              MPN: 703756
              WASHER, M4
              Wood Veneer Only
              WASHER, M4 Genuine Aston Martin - New (to order)
              # 9
              MPN: 706901
              SCREW M4X6 PAN
              Wood Veneer Only
              from £0.47
              from £0.47
              SCREW M4X6 PAN Genuine Aston Martin - New (to order)
              # 10
              MPN: 703178
              SCREW M4X8 TORX HEAD
              Wood Veneer Only
              from £0.47
              from £0.47
              M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
              # 11
              MPN: CG43-56383-AA
              SCREW M4X22 PAN
              Foil Veneer Only
              from £0.47
              from £0.47
              SCREW M4X22 PAN Genuine Aston Martin - New (to order)
              # 12
              MPN: 703024
              SCREW M4X3/8 CSK
              Foil Veneer Only
              from £0.47
              from £0.47
              SCREW, NO4 X 3/8 Genuine Aston Martin - New (to order)
              # 13
              MPN: 4G43-80899-AA
              SCREW M4X8 PAN
              Foil Veneer Only
              from £0.47
              from £0.47
              SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
