aston martin db9 (2008) rear end trim, volante parts diagram

010508-B3 - Rear End Trim, Volante

Aston Martin DB9 (2008) Rear End Trim, Volante Parts Diagram

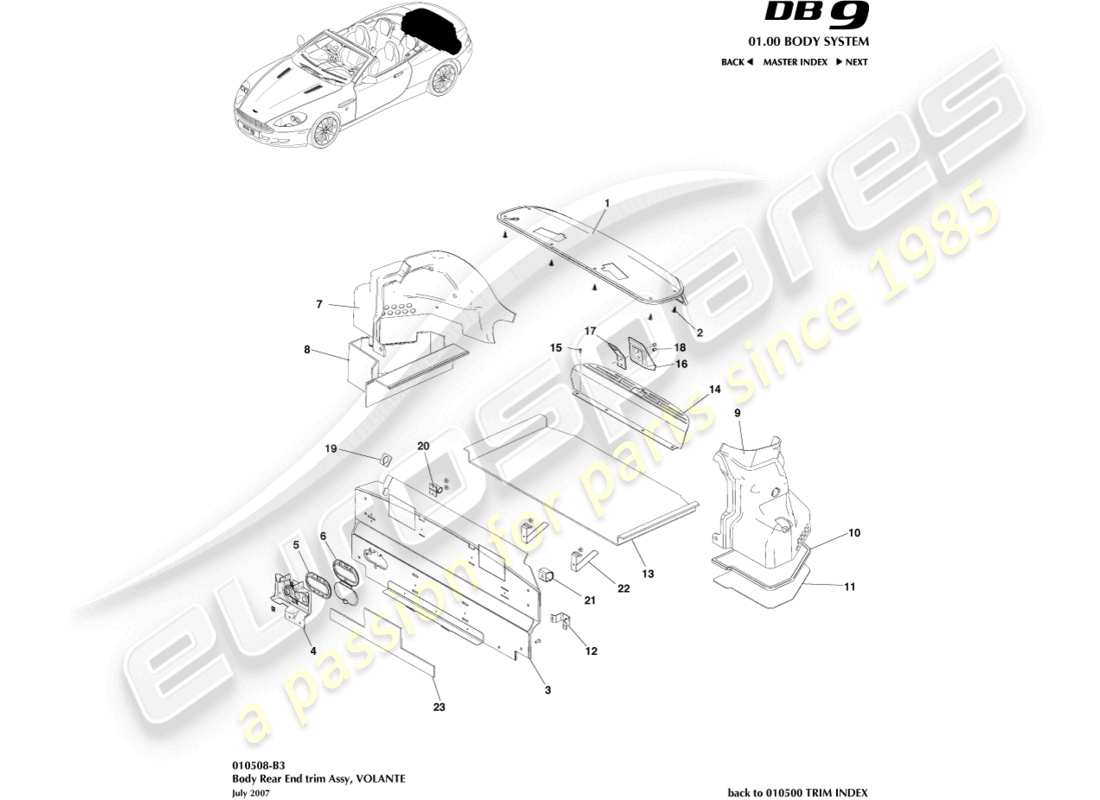

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 4G43-L580374-AC
                                      TRUNKLID TRIM ASSY
                                      from £1,066.93
                                      from £1,066.93
                                      TRUNKLID TRIM ASSEMBLY Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 4G43-MXC1800-AA-PK
                                      FIR TREE FASTNER
                                      Pack of 20
                                      Supersession
                                      Supersession
                                      Genuine Aston Martin (no longer available to order)
                                      # 3
                                      MPN: 9G43-L45445-ACW
                                      FRONT COVER ASSY, LUGGAGE COMPARTMENT
                                      from £646.75
                                      from £646.75
                                      PNL ASSEMBLY L/C FRT Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 9G43-L45445-BCW
                                      FRONT COVER ASSY, LUGGAGE COMPARTMENT
                                      Federal
                                      from £1,696.35
                                      from £1,696.35
                                      FRONT COVER ASSEMBLY, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 4G43-L43660-AB
                                      SWITCH PLATE ASSY, LUGGAGE COMPARTMENT
                                      With Battery Conditioner Socket
                                      from £51.96
                                      from £51.96
                                      SWITCH PLATE ASSEMBLY, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 4G43-L43660-AC
                                      SWITCH PLATE ASSY, LUGGAGE COMPARTMENT
                                      Without Battery Conditioner Socket
                                      from £40.09
                                      from £40.09
                                      SWITCH PLATE ASSEMBLY, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 5
                                      MPN: 4G43-43662-AA
                                      BEZEL ASSY SWITCH, LUGGAGE COMPARTMENT
                                      07MY
                                      from £71.54
                                      from £71.54
                                      BEZEL ASSEMBLY, LUGGAGE COMPARTMENT SWITCH Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 4G43-13A752-AC
                                      LID, POWER SWITCH, LUGGAGE COMPARTMENT
                                      from £5.59
                                      from £5.59
                                      LID L/C AUX POWER SW Genuine Aston Martin - New (to order)
                                      LID L/C AUX POWER SW Genuine Aston Martin - Used In stock
                                      # 7
                                      MPN: 4G43-L45422-AD
                                      CARPET, SIDE, RH, LUGGAGE COMPARTMENT
                                      Also order Clip 4G43-N623361-AA x1
                                      from £117.30
                                      from £117.30
                                      CARPET, SIDE, RH, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 4G43-L454K65-AA
                                      CARPET, FLOOR, SIDE, RH, LUGGAGE COMPARTMENT
                                      from £691.06
                                      from £691.06
                                      CRPT L/C FLR SD RH Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 4G43-L45423-AA
                                      CARPET, SIDE, LH, LUGGAGE COMPARTMENT
                                      from £220.87
                                      from £220.87
                                      CARPET, SIDE, LH, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 4G43-L454K64-AB
                                      CARPET, SIDE, LH, LUGGAGE COMPARTMENT
                                      from £565.45
                                      from £565.45
                                      CARPET, SIDE, LH, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 4G43-L41654-AC
                                      MLDING, FLOOR, SIDE, LH, LUGGAGE COMPARTMENT
                                      from £18.00
                                      from £18.00
                                      MLDING, FLOOR, SIDE, LH, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 4G43-L454A21-AA
                                      BRACKET, FLOOR PANEL
                                      from £14.55
                                      from £14.55
                                      BRACKET, FRONT BOARD SUPPORT Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 4G43-45456-CC
                                      CARPET, FLOOR, LUGGAGE COMPARTMENT
                                      from £107.04
                                      from £107.04
                                      CRPT L/C FLR Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 4G43-L42626-AB
                                      PLATE, LUGGAGE COMPARTMENT, SCUFF
                                      from £121.40
                                      from £121.40
                                      SCUFF PLATE ASSEMBLY, REAR LOADSPACE Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 4G43-3L657-AA
                                      SCREW M5X20, FLAT HEAD
                                      07MY
                                      from £0.47
                                      from £0.47
                                      SCW M5X20 CSK HD SS Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 4G43-L21893-AA
                                      COVER ASSY, STRIKER
                                      from £28.69
                                      from £28.69
                                      COVER ASSEMBLY, STRIKER Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 4G43-434A30-AB
                                      PULL ASSY, LUGGAGE COMPARTMENT
                                      from £271.16
                                      from £271.16
                                      PULL ASSEMBLY L/C DR Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: 4G43-012M6TA-AA
                                      INSERT M6
                                      from £0.87
                                      from £0.87
                                      INSERT M6 Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 4G43-L40170-AA
                                      REINFORCEMENT, FRONT COVER
                                      from £7.32
                                      from £7.32
                                      REINF COVER UPR FRT Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: 4G43-31426-AA
                                      STRAP ASSY, UMBRELLA POINT
                                      from £144.41
                                      from £144.41
                                      RET STRP ASY UMB PT Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: 4G43-31427-AA
                                      STRAP ASSY, UMBRELLA HANDLE
                                      from £110.46
                                      from £110.46
                                      RET STRP ASY UMB HND Genuine Aston Martin - New (to order)
                                      # 22
                                      MPN: 4G43-19G537-AA
                                      STRAP, WARNING TRIANGLE
                                      from £5.39
                                      from £5.39
                                      STRAP, WARNING TRIANGLE Genuine Aston Martin - New (to order)
                                      # 22
                                      MPN: 4G43-P2100014B-AA
                                      RIVET, STRAP, WARNING TRIANGLE
                                      from £0.47
                                      from £0.47
                                      RIVET R-LOK Genuine Aston Martin - New (to order)
                                      # 23
                                      MPN: 4G43-L45436-AA
                                      FOAM, BACKBOARD
                                      from £7.64
                                      from £7.64
                                      FOAM, FRONT BOARD Genuine Aston Martin - New (to order)
                                      # 24
                                      MPN: 4G43-3678AA-AA
                                      FIR TREE, 5MM, PUSH ON
                                      from £0.47
                                      from £0.47
                                      FIR TREE PSH ON Genuine Aston Martin - New (to order)
