aston martin db9 (2008) tonneau latching system parts diagram

011411-B1 - Tonneau Latching System

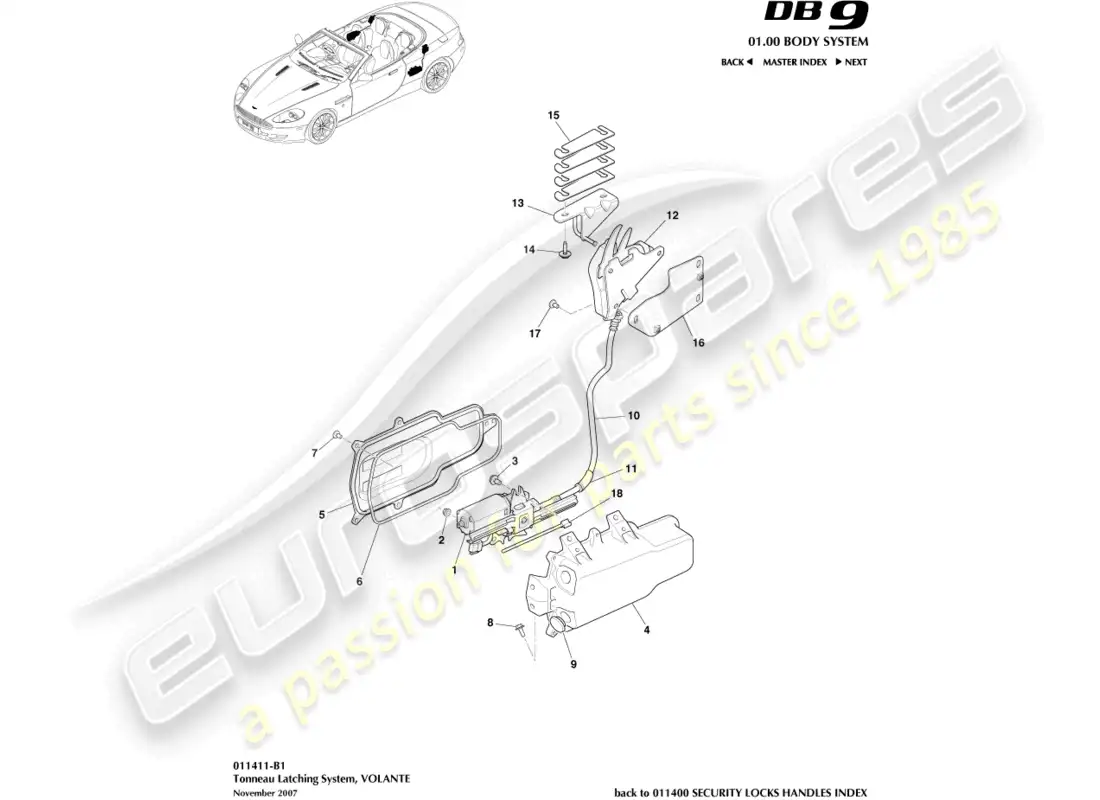

Aston Martin DB9 (2008) Tonneau Latching System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 4G43-37-10477
                        MOTOR, TONNEAU LATCH
                        Cable guide clip required
                        from £718.75
                        from £718.75
                        MOTOR, TONNEAU LATCH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 4G43-239600-AA
                        MOTOR CABLE GUIDE CLIP
                        Order with motor
                        from £8.81
                        from £8.81
                        MOTOR CABLE GUIDE CLIP Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 4G43-93-10903
                        CABLE GUIDE
                        from £31.90
                        from £31.90
                        CABLE GUIDE Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 701170
                        NUT, FLG, M6
                        07MY
                        NUT, FLG, M6, REGULATOR TO BODY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 702944
                        NUT, FLG, M6
                        08MY
                        from £0.58
                        from £0.58
                        NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                        LOWER MESH NUTS (702944) Genuine Ferrari Part - New (to order)
                        # 3
                        MPN: 701196
                        SCREW / WASHER M6X16
                        07MY
                        SCREW / WASHER M6X16 Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 703151
                        SCREW / WASHER M6X16
                        08MY
                        from £0.47
                        from £0.47
                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                        LOWER MESH BOLTS (703151) Genuine Ferrari Part - New (to order)
                        # 4
                        MPN: 4G43-96-11272
                        ENCLOSURE, TONNEAU LATCH MOTOR, LH
                        from £44.47
                        from £44.47
                        ENCLOSURE, TONNEAU LATCH MOTOR, LH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 4G43-96-11273
                        ENCLOSURE, TONNEAU LATCH MOTOR, RH
                        from £44.47
                        from £44.47
                        ENCLOSURE, TONNEAU LATCH MOTOR, RH Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 4G43-53548-AC
                        LID, TONNEAU LATCH MOTOR ASSY
                        from £15.08
                        from £15.08
                        LID, TONNEAU LATCH MOTOR ASSEMBLY Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 4G43-3956-AB
                        SEAL, TONNEAU LATCH MOTOR
                        SEAL, TONNEAU LATCH MOTOR Genuine Aston Martin - New (to order)
                        # 7
                        MPN: W505972-S424
                        SCREW, M6X12, PAN
                        SCREW, M6X12, PAN Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 702839
                        SCREW / WASHER M6X16
                        SCREW / WASHER M6X16 Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 4G43-301347-AA
                        PLUG, TONNEAU LATCH BOX
                        from £0.81
                        from £0.81
                        20MM BODY PLUG Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 4G43-53922-AB
                        DRIVE CABLE, TONNEAU LATCH
                        from £82.84
                        from £82.84
                        DRIVE CABLE, TONNEAU LATCH Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 4G43-6C691-AD
                        GROMMET SLEEVE, CABLE
                        from £2.66
                        from £2.66
                        GROMMET SLEEVE, CABLE Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 4G43-54797-AB
                        LATCH, TONNEAU, LH
                        from £194.30
                        from £194.30
                        LATCH, TONNEAU, LH Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 4G43-54796-AB
                        LATCH, TONNEAU, RH
                        from £194.30
                        from £194.30
                        LATCH, TONNEAU, RH Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 4G43-53975-AD
                        STRIKER ASSY, TONNEAU COVER, LH
                        from £27.40
                        from £27.40
                        STRIKER ASSEMBLY, TONNEAU COVER, LH Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 4G43-53974-AD
                        STRIKER ASSY, TONNEAU COVER, RH
                        from £54.25
                        from £54.25
                        STRIKER ASSEMBLY, TONNEAU COVER, RH Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 701350
                        SCREW, M6X20
                        07MY
                        SCREW, M6X20 Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 703152
                        SCREW, M6X20
                        08MY
                        SCREW, M6X20 Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 4G43-431F59-AC
                        SHIM, LOWER LATCH STRIKER PLATE
                        from £3.79
                        from £3.79
                        SPACER SHIM, TONNEAU STRIKER Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 4G43-L43161-AC
                        MOUNTING PLATE, TONNEAU LATCH, LH
                        from £9.97
                        from £9.97
                        MOUNTING PLATE, TONNEAU LATCH, LH Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 4G43-L43160-AC
                        MOUNTING PLATE, TONNEAU LATCH, RH
                        from £9.97
                        from £9.97
                        MOUNTING PLATE, TONNEAU LATCH, RH Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 700099
                        SCREW, FLG, M6X20 PLATE TO BODY
                        07MY
                        SCREW, FLG, M6X20 PLATE TO BODY Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 703203
                        SCREW, FLG, M6X20 PLATE TO BODY
                        08MY
                        from £0.47
                        from £0.47
                        SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                        LOWER RAD SUPPORT BOLT (703203) Genuine Ferrari Part - New (to order)
                        # 17
                        MPN: 700273
                        BUTTON TORX WASHER ASSY
                        07MY
                        TORX SCREW AND WASHER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 17
                        MPN: 703143
                        BUTTON TORX WASHER ASSY
                        08MY
                        from £1.07
                        from £1.07
                        SCRW & WSHR-M6 X 12 Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-53923-AA
                        WORM CABLE
                        from £13.60
                        from £13.60
                        WORM DRIVE Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-4S018-AA
                        MOUNTING BRACKET, TONNEAU COVER BUMP STOP, RH
                        from £22.79
                        from £22.79
                        TONN BUMP STOP BKT R Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-4S017-AA
                        MOUNTING BRACKET, TONNEAU COVER BUMP STOP, LH
                        from £22.79
                        from £22.79
                        TONN BUMP STOP BKT L Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 701179
                        SCREW FLG, M6X12, BUMP STOP BRACKET
                        07MY
                        from £0.47
                        from £0.47
                        SCREW M6X12 HEX FLG Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 700606
                        SCREW FLG, M6X12, BUMP STOP BRACKET
                        08MY
                        from £0.47
                        from £0.47
                        SCREW M6X12 FLG Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-239600-AA
                        GUIDE CLIP, TONNEAU MOTOR CABLE
                        from £8.81
                        from £8.81
                        MOTOR CABLE GUIDE CLIP Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-16K808-AA
                        BUFFER ASSY, TONNEAU BUMP STOP
                        BUFFER ASSEMBLY TONNEAU BUMP STOP Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 701170
                        NUT, FLG, M6, TONNEAU BUMP STOP
                        07MY
                        NUT, FLG, M6, REGULATOR TO BODY Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 702944
                        NUT, FLG, M6, TONNEAU BUMP STOP
                        08MY
                        from £0.58
                        from £0.58
                        NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                        LOWER MESH NUTS (702944) Genuine Ferrari Part - New (to order)
                        # 18
                        MPN: 4G43-49198-AA
                        SHIM, 2MM, TONNEAU HINGE
                        from £3.68
                        from £3.68
                        TON HGE SHIM 2MM Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-49199-AA
                        SHIM, 1MM, TONNEAU HINGE
                        from £3.14
                        from £3.14
                        TON HGE SHIM 1MM Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-49200-AA
                        SHIM, 0.5MM, TONNEAU HINGE
                        from £15.54
                        from £15.54
                        TON HGE SHIM 0.5MM Genuine Aston Martin - New (to order)
