aston martin db9 (2008) engine lubrication parts diagram

030200-E1 - Engine Lubrication

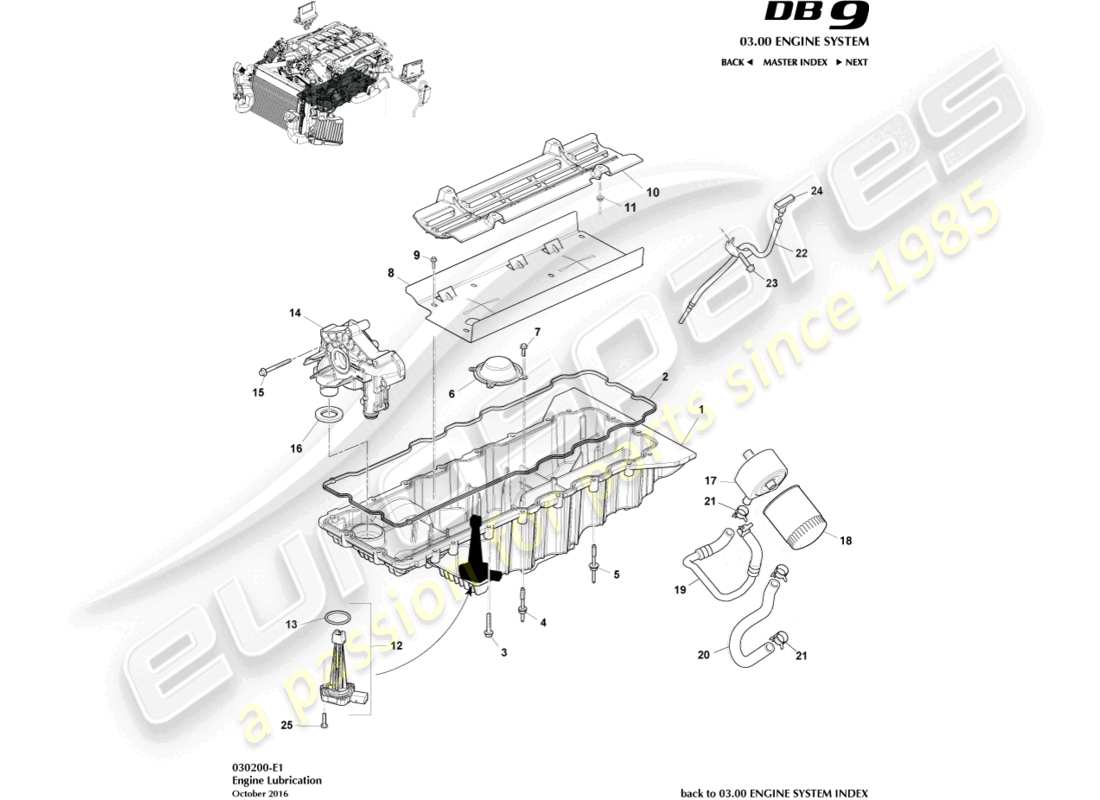

Aston Martin DB9 (2008) Engine Lubrication Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 4G4E-6675-CC
                                  OIL PAN ASSEMBLY
                                  from £779.75
                                  from £779.75
                                  OIL PAN ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: 8D33-6675-DA
                                  OIL PAN ASSEMBLY
                                  08MY, Includes item 12
                                  from £1,821.18
                                  from £1,821.18
                                  OIL PAN ASSEMBLY Genuine Aston Martin - New (to order)
                                  # -
                                  MPN: 4G43-04-10205
                                  DRAIN PLUG, M12
                                  Minimum order quantity of 8
                                  from £13.70
                                  from £13.70
                                  DRAIN PLUG, OIL PAN Genuine Aston Martin - New In stock
                                  # 2
                                  MPN: 04-85092
                                  GASKET, OIL PAN
                                  from £64.18
                                  from £64.18
                                  GASKET, OIL PAN Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 702605
                                  BOLT, M8X45
                                  from £19.34
                                  from £19.34
                                  BOLT, M8X45 Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 702604
                                  STUD AND WASHER
                                  from £18.54
                                  from £18.54
                                  STUD&WSHR M6X20+M8X4 Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 702604
                                  STUD AND WASHER M6X30+M8X47.5 HEX
                                  from £18.54
                                  from £18.54
                                  STUD&WSHR M6X20+M8X4 Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 4G4E-6622-BA
                                  SCREEN AND COVER ASSY, OIL PUMP
                                  from £109.25
                                  from £109.25
                                  SCREEN AND COVER ASSEMBLY, OIL PUMP Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 699111
                                  BOLT M6X18.5 HEX FLG HD
                                  from £0.60
                                  from £0.60
                                  BOLT M6X18.5 HEX FLG HD Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 8D33-6686-AA
                                  BAFFLE, OIL PAN
                                  08MY
                                  BAFFLE, OIL PAN Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 8D33-6686-AD
                                  BAFFLE, OIL PAN
                                  09MY
                                  from £125.90
                                  from £125.90
                                  BAFFLE, OIL PAN Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 702601
                                  BOLT, FLG, M6X18.5
                                  from £0.47
                                  from £0.47
                                  SCREW M56X20 HF 8N Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: 4G4E-6B660-BA
                                  BAFFLE, WINDAGE TRAY
                                  from £165.54
                                  from £165.54
                                  BAFFLE, WINDAGE TRAY Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 703168
                                  NUT, FLG, M6
                                  NUT, FLG, M6 Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 4G43-04-10972
                                  SENSOR ASSEMBLY, ENGINE LOW OIL
                                  from £59.06
                                  from £59.06
                                  SNSR ASSY-ENG LOWOIL Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 8W93-87030-BA
                                  GASKET, ENGINE LOW OIL LEVEL SENSOR
                                  ALWAYS REPLACE. DO NOT RE-USE
                                  from £22.63
                                  from £22.63
                                  O RING, ENGINE LOW OIL LEVEL SENSOR Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 4G4E-6621-AB
                                  PUMP ASSEMBLY, ENGINE OIL
                                  AM04 ENGINE
                                  from £2,893.61
                                  from £2,893.61
                                  PUMP ASSEMBLY, ENGINE OIL Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 8G43-04-11112
                                  PUMP ASSEMBLY, ENGINE OIL
                                  AM09 ENGINE
                                  from £1,481.76
                                  from £1,481.76
                                  SERVICE ASSY-OIL PMP Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 702552
                                  BOLT, M8X70
                                  AM04 ENGINE
                                  from £0.68
                                  from £0.68
                                  BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 697744
                                  BOLT, M6X72.5
                                  AM04 ENGINE
                                  from £1.37
                                  from £1.37
                                  BOLT, M6X72.5 Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 702552
                                  BOLT, M8X70
                                  AM09 ENGINE
                                  from £0.68
                                  from £0.68
                                  BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: 4G43-04-10196
                                  SEAL, OIL PUMP PICK UP TUBE
                                  from £61.17
                                  from £61.17
                                  SEAL, OIL PUMP PICKUP TUBE TO PAN Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 8G43-6A642-BA
                                  COOLER ASSEMBLY, ENGINE OIL
                                  09MY
                                  COOLER ASSEMBLY, ENGINE OIL Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 44-85095
                                  COOLER ASSEMBLY, ENGINE OIL
                                  from £578.84
                                  from £578.84
                                  OIL COOLER - ENGINE Genuine Aston Martin - New (to order)
                                  # -
                                  MPN: 8G43-6L626-AA
                                  INSERT, OIL COOLER MOUNTING BOLT
                                  09MY
                                  INSERT, OIL COOLER MOUNTING BOLT Genuine Aston Martin - New (to order)
                                  # -
                                  MPN: 4G43-44-10007
                                  INSERT, OIL COOLER MOUNTING BOLT
                                  from £39.15
                                  from £39.15
                                  INSERT, OIL COOLER MOUNTING BOLT Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: AG43-6714-AA-PK
                                  OIL FILTER
                                  Pack of 12
                                  from £26.66
                                  from £26.66
                                  OIL FILTER (single) (AG43-6714-AA) Genuine Aston Martin - New In stock
                                  OIL FILTER Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: 4G4E-6N867-BB
                                  TUBE AND HOSE ASSEMBLY
                                  from £37.83
                                  from £37.83
                                  TUBE AND HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 4G4E-8B451-BA
                                  HOSE
                                  from £42.87
                                  from £42.87
                                  HOSE Genuine Aston Martin - New (to order)
                                  # 21
                                  MPN: 702858
                                  CLAMP- 24 DIA
                                  2 per hose
                                  from £2.14
                                  from £2.14
                                  HOSE CLAMP 23.9-27.1 Genuine Aston Martin - New (to order)
                                  # 22
                                  MPN: 4G4E-6754-AD
                                  TUBE ASSY, OIL LEVEL INDICATOR
                                  from £35.95
                                  from £35.95
                                  TUBE ASSEMBLY, OIL LEVEL INDICATOR Genuine Aston Martin - New (to order)
                                  # 23
                                  MPN: 701745
                                  BOLT, M8 FLANGE HEAD, DIP STICK TUBE
                                  from £0.47
                                  from £0.47
                                  BOLT, M8 FLANGE HEAD, DIPSTICK TUBE Genuine Aston Martin - New (to order)
                                  # 24
                                  MPN: 4G4E-6750-AA
                                  DIPSTICK
                                  DIPSTICK Genuine Aston Martin - New (to order)
                                  # 24
                                  MPN: 8D33-6750-AA
                                  DIPSTICK
                                  08MY
                                  DIPSTICK Genuine Aston Martin - New (to order)
                                  # 24
                                  MPN: 8D33-6750-CA
                                  DIPSTICK
                                  09MY
                                  from £29.61
                                  from £29.61
                                  OIL LEVEL INDICATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                  # -
                                  MPN: 4G43-6K804-AA
                                  LABEL, ENGINE OIL DIPSTICK
                                  Not illustrated
                                  from £2.62
                                  from £2.62
                                  LABEL, ENGINE OIL DIPSTICK Genuine Aston Martin - New (to order)
                                  # 25
                                  MPN: 700607
                                  SCREW M6X20 HEX FLG HD
                                  from £0.47
                                  from £0.47
                                  SCREW M6X20 HEX FLG Genuine Aston Martin - New (to order)
