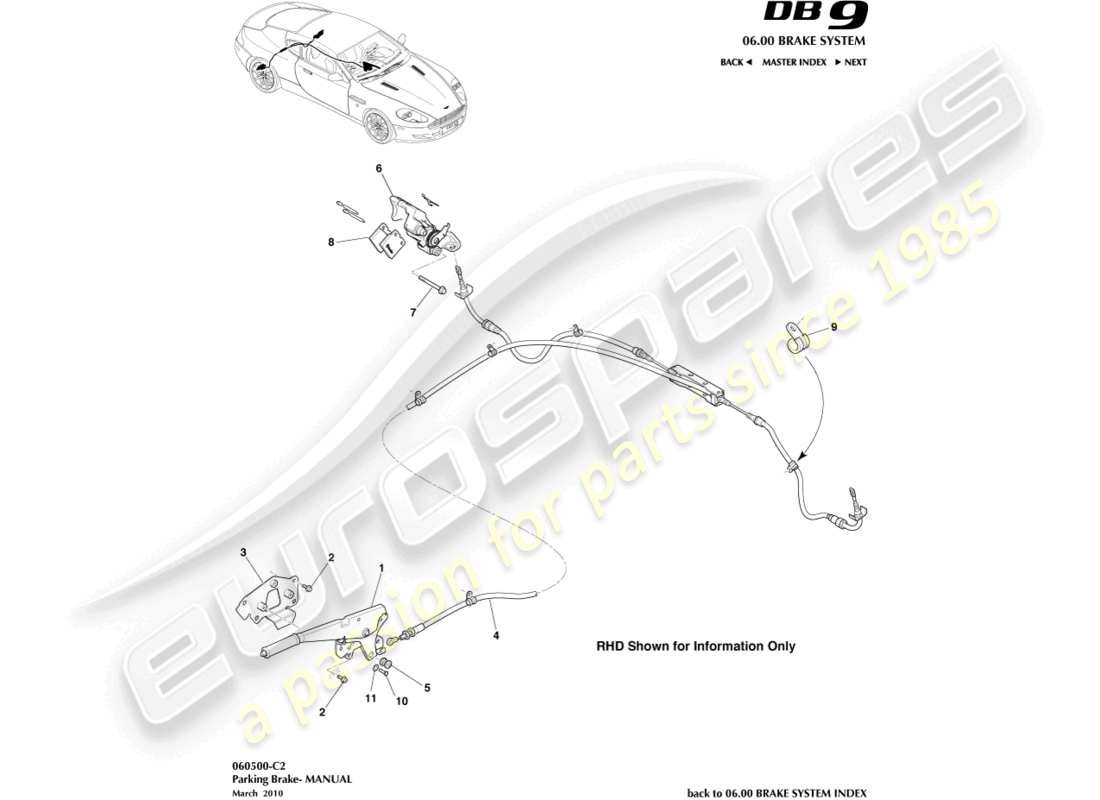

060500-C2 - PARKING BRAKE

Aston Martin DB9 (2008) Parking Brake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 4G43-8492-AC
                    HANDBRAKE LEVER ASSY, LHD
                    HANDBRAKE LEVER ASSEMBLY LHD Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 4G43-8492-BB
                    HANDBRAKE LEVER ASSY, RHD
                    from £97.44
                    from £97.44
                    HANDBRAKE LEVER ASSEMBLY RHD Genuine Aston Martin - New (to order)
                    HANDBRAKE LEVER ASSEMBLY RHD Genuine Aston Martin - Used In stock
                    # 2
                    MPN: 703121
                    SCREW, M8 X 20
                    from £0.47
                    from £0.47
                    SCREW M8X20 HEX FLG Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 4G43-2A686-AB
                    BRACKET ASSY, LHD
                    from £53.03
                    from £53.03
                    BRACKET ASSEMBLY P/BRK LVR Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 4G43-2A686-BB
                    BRACKET ASSY, RHD
                    from £19.88
                    from £19.88
                    BRACKET ASSEMBLY P/BRK LVR Genuine Aston Martin - New (to order)
                    BRACKET ASSEMBLY P/BRK LVR Genuine Aston Martin - Used In stock
                    # 4
                    MPN: 4G43-2853-AD
                    CABLE AND CONDUIT ASSY
                    from £116.26
                    from £116.26
                    CABLE AND CONDUIT ASSEMBLY Genuine Aston Martin - New (to order)
                    CABLE AND CONDUIT ASSEMBLY Genuine Aston Martin - Used In stock
                    # 5
                    MPN: 6G33-439136-AA
                    TRUNNION, H/BRAKE CABLE TO LEVER
                    from £1.31
                    from £1.31
                    TRUNNION, HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 4G43-2C564-CA
                    BOLT, FLG, M10 X 87
                    Caliper to Hub
                    from £1.84
                    from £1.84
                    BOLT-M10X87 HEX FLNG Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 4G43-2C562-BA
                    PAD SET
                    (per axle)
                    Supersession
                    Supersession
                    Genuine Aston Martin (no longer available to order)
                    # 9
                    MPN: 694891
                    P-CLIP
                    from £2.31
                    from £2.31
                    P-CLIP Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 7G43-2K605-AA
                    PIVOT PIN, H/BRAKE CABLE TO LEVER
                    from £1.17
                    from £1.17
                    PIVOT PIN, H/BRAKE CABLE TO LEVER Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 6G33-100063-AA-PK
                    PUSH ON FIX, H/BRAKE CABLE TO LEVER
                    from £7.52
                    from £7.52
                    PUSH ON FIX, H/BRAKE CABLE TO LEVER Genuine Aston Martin - New (to order)
                    # -
                    MPN: 4G43-2B296-BA
                    PIN, PAD RETAINING
                    1 Per Caliper
                    from £37.44
                    from £37.44
                    PIN, PAD RETAINING, 1 PER CALIPER Genuine Aston Martin - New (to order)
                    # -
                    MPN: 4G43-2W065-AA
                    BOOT, SLIDING PIN
                    from £27.97
                    from £27.97
                    BOOT, SLIDING PIN Genuine Aston Martin - New (to order)
                    # -
                    MPN: 4G43-224259-BA
                    SPRING, ANTI RATTLE
                    from £40.08
                    from £40.08
                    SPRING, ANTI-RATTLE Genuine Aston Martin - New (to order)
                    # -
                    MPN: 703163
                    NUT, M6, P CLIP ATTACHED
                    from £0.47
                    from £0.47
                    NUT M6 FLG LOCKING Genuine Aston Martin - New (to order)
                    # -
                    MPN: 703203
                    SCREW, M6 X 20
                    from £0.47
                    from £0.47
                    SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                    LOWER RAD SUPPORT BOLT (703203) Genuine Ferrari Part - New (to order)
                    # -
                    MPN: 4G43-2273-AA
                    GROMMET, PARK BRAKE CABLE
                    from £1.24
                    from £1.24
                    25MM BODY PLUG Genuine Aston Martin - New (to order)
                    # -
                    MPN: 4G43-228014-AA
                    PLUG BLANKING, M8
                    H/brake brkt rivnut blanking
                    from £0.48
                    from £0.48
                    PLUG BLANKING Genuine Aston Martin - New (to order)
                    # -
                    MPN: 4G43-338013-AA
                    PLUG BLANKING, M6
                    H/brake P clip rivnut blanking
                    from £0.47
                    from £0.47
                    PLUG BLANKING Genuine Aston Martin - New (to order)
                    # -
                    MPN: 37-84688
                    SWITCH, HANDBRAKE
                    from £193.39
                    from £193.39
                    SWITCH, HANDBRAKE Genuine Aston Martin - New (to order)
