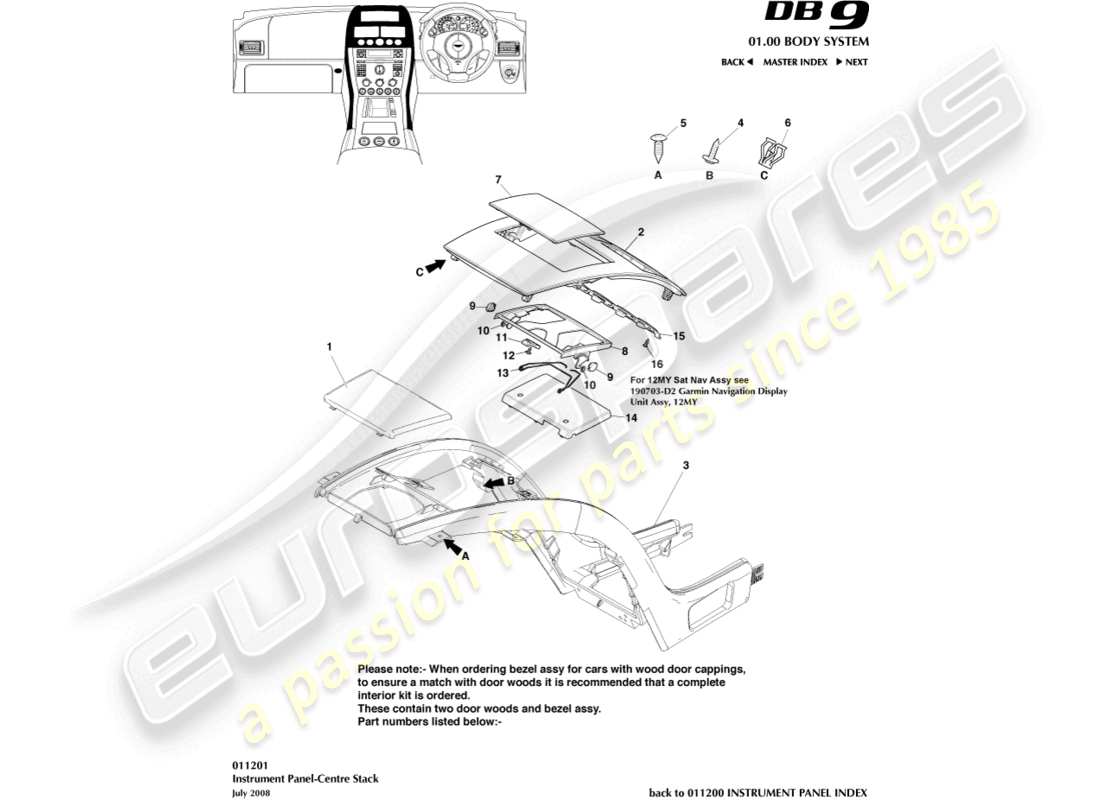

aston martin db9 (2009) instrument panel centre stack parts diagram

011201 - Instrument Panel Centre Stack

Aston Martin DB9 (2009) Instrument Panel Centre Stack Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # -
                          MPN: 4G43-87-10792
                          INTERIOR KIT, WALNUT, AUTO, WITH SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,582.18
                          from £1,582.18
                          INTERIOR KIT, WALNUT, AUTO, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10317
                          INTERIOR KIT, WALNUT, MANUAL, WITH SAT NAV
                          Up to and incl 08MY
                          from £1,154.94
                          from £1,154.94
                          INTERIOR KIT, WALNUT, MANUAL, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10794
                          INTERIOR KIT, WALNUT, AUTO, NON SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,356.16
                          from £1,356.16
                          INTERIOR KIT, WALNUT, AUTO, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10319
                          INTERIOR KIT, WALNUT, MANUAL, NON SAT NAV
                          Up to and incl 08MY
                          from £1,189.59
                          from £1,189.59
                          INTERIOR KIT, WALNUT, MANUAL, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10796
                          INTERIOR KIT, MAHOGANY, AUTO, WITH SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,356.16
                          from £1,356.16
                          INTERIOR KIT, MAHOGANY, AUTO, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10797
                          INTERIOR KIT, MAHOGANY, MANUAL, WITH SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,356.16
                          from £1,356.16
                          INTERIOR KIT, MAHOGANY, MANUAL, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10798
                          INTERIOR KIT, MAHOGANY, AUTO, NON SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,356.16
                          from £1,356.16
                          INTERIOR KIT, MAHOGANY, AUTO, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10323
                          INTERIOR KIT, MAHOGANY, MANUAL, NON SAT NAV
                          Up to and incl 08MY
                          from £1,189.59
                          from £1,189.59
                          INTERIOR KIT, MAHOGANY, MANUAL, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10800
                          INTERIOR KIT, BAMBOO, AUTO, WITH SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,356.16
                          from £1,356.16
                          INTERIOR KIT, BAMBOO, AUTO, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10325
                          INTERIOR KIT, BAMBOO, MANUAL, WITH SAT NAV
                          Up to and incl 08MY
                          INTERIOR KIT, BAMBOO, MANUAL, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10326
                          INTERIOR KIT, BAMBOO, AUTO, NON SAT NAV
                          Up to and incl 08MY
                          from £1,189.59
                          from £1,189.59
                          INTERIOR KIT, BAMBOO, AUTO, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10327
                          INTERIOR KIT, BAMBOO, MANUAL, NON SAT NAV
                          Up to and incl 08MY
                          from £1,189.59
                          from £1,189.59
                          INTERIOR KIT, BAMBOO, MANUAL, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10804
                          INTERIOR KIT, PIANO BLACK, AUTO, WITH SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £799.04
                          from £799.04
                          INTERIOR KIT, PIANO BLACK, AUTO, WITH SAT NAV Genuine Aston Martin - New (to order)
                          INTERIOR KIT, PIANO BLACK, AUTO, WITH SAT NAV Genuine Aston Martin - Used In stock
                          # -
                          MPN: 4G43-87-10805
                          INTERIOR KIT, PIANO BLACK, MANUAL, WITH SAT NAV
                          Up to and incl 08MY. Also require item 17
                          from £1,452.80
                          from £1,452.80
                          INTERIOR KIT, PIANO BLACK, MANUAL, WITH SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10330
                          INTERIOR KIT, PIANO BLACK, AUTO, NON SAT NAV
                          Up to and incl 08MY
                          from £1,304.41
                          from £1,304.41
                          INTERIOR KIT, PIANO BLACK, AUTO, NON SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          MPN: 4G43-87-10331
                          INTERIOR KIT, PIANO BLACK, MANUAL, NON SAT NAV
                          Up to and incl 08MY
                          from £1,304.41
                          from £1,304.41
                          INTERIOR KIT, PIANO BLACK, MANUAL, NON SAT NAV Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 4G43-C046A26-ACW
                          GRILLE ASSY, RADIO SPEAKER
                          from £28.63
                          from £28.63
                          GRILLE ASSEMBLY, RADIO SPEAKER Genuine Aston Martin - New (to order)
                          GRILLE ASSEMBLY, RADIO SPEAKER Genuine Aston Martin - Used In stock
                          # 1
                          MPN: 9D33-C046A26-AC
                          GRILLE ASSY, INSTRUMENT PANEL, SPEAKER
                          9.5MY
                          from £296.83
                          from £296.83
                          I/PNL CTR SPEAKER GRILL Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-ABW
                          BEZEL ASSY, WALNUT, AUTO, STANDARD
                          Up to
                          BEZEL ASSEMBLY, WALNUT, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-GB
                          BEZEL ASSY, WALNUT, AUTO, STANDARD
                          FROM DD100591
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, WALNUT, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-GA
                          BEZEL ASSY, WALNUT, AUTO, STANDARD
                          09MY
                          BEZEL ASSEMBLY, WALNUT, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-DBW
                          BEZEL ASSY, WALNUT, MANUAL, STANDARD
                          Up to
                          from £542.33
                          from £542.33
                          BEZEL ASSEMBLY, WALNUT, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-KB
                          BEZEL ASSY, WALNUT, MANUAL, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, WALNUT, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-KA
                          BEZEL ASSY, WALNUT, MANUAL, STANDARD
                          09MY
                          BEZEL ASSEMBLY, WALNUT, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-BBW
                          BEZEL ASSY, MAHOGANY, AUTO, STANDARD
                          Up to
                          BEZEL ASSEMBLY, MAHOGANY, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-HB
                          BEZEL ASSY, MAHOGANY, AUTO, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, MAHOGANY, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-HA
                          BEZEL ASSY, MAHOGANY, AUTO, STANDARD
                          09MY
                          BEZEL ASSEMBLY, MAHOGANY, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-EBW
                          BEZEL ASSY, MAHOGANY, MANUAL, STANDARD
                          Up to
                          from £542.33
                          from £542.33
                          BEZEL ASSEMBLY, MAHOGANY, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-LB
                          BEZEL ASSY, MAHOGANY, MANUAL, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, MAHOGANY, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-LA
                          BEZEL ASSY, MAHOGANY, MANUAL, STANDARD
                          09MY
                          BEZEL ASSEMBLY, MAHOGANY, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-CBW
                          BEZEL ASSY, BAMBOO, AUTO, STANDARD
                          Up to
                          from £542.33
                          from £542.33
                          BEZEL ASSEMBLY, BAMBOO, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-JB
                          BEZEL ASSY, BAMBOO, AUTO, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, BAMBOO, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-JA
                          BEZEL ASSY, BAMBOO, AUTO, STANDARD
                          09MY
                          BEZEL ASSEMBLY, BAMBOO, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-FBW
                          BEZEL ASSY, BAMBOO, MANUAL, STANDARD
                          Up to
                          from £542.33
                          from £542.33
                          BEZEL ASSEMBLY, BAMBOO, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-MB
                          BEZEL ASSY, BAMBOO, MANUAL, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, BAMBOO, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-MA
                          BEZEL ASSY, BAMBOO, MANUAL, STANDARD
                          09MY
                          BEZEL ASSEMBLY, BAMBOO, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-NAW
                          BEZEL ASSY, PIANO BLACK, AUTO, STANDARD
                          Up to
                          BEZEL ASSEMBLY, PIANO BLACK, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-QB
                          BEZEL ASSY, PIANO BLACK, AUTO, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, PIANO BLACK, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-RA
                          BEZEL ASSY, PIANO BLACK, AUTO, STANDARD
                          09MY
                          BEZEL ASSEMBLY, PIANO BLACK, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-047A04-OAW
                          BEZEL ASSY, PIANO BLACK, MANUAL, STANDARD
                          Up to
                          BEZEL ASSEMBLY, PIANO BLACK, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-RB
                          BEZEL ASSY, PIANO BLACK, MANUAL, STANDARD
                          from
                          from £900.75
                          from £900.75
                          BEZEL ASSEMBLY, PIANO BLACK, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 8D33-045K18-RA
                          BEZEL ASSY, PIANO BLACK, MANUAL, STANDARD
                          09MY
                          BEZEL ASSEMBLY PIANO BLACK, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-047A04-ABW
                          BEZEL ASSY, ALLOY, AUTO, STANDARD
                          07MY
                          from £632.01
                          from £632.01
                          BEZEL ASSEMBLY, ALLOY, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-047A05-CAW
                          BEZEL ASSY, ALLOY, AUTO, STANDARD
                          09MY
                          BEZEL ASSEMBLY, ALLOY, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-047A04-BBW
                          BEZEL ASSY, ALLOY, MANUAL, STANDARD
                          07MY
                          from £632.01
                          from £632.01
                          BEZEL ASSEMBLY, ALLOY, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-047A05-DAW
                          BEZEL ASSY, ALLOY, MANUAL, STANDARD
                          09MY
                          BEZEL ASSEMBLY, ALLOY, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-VA
                          BEZEL ASSY, TAMO ASH, AUTO, STANDARD
                          09MY
                          BEZEL ASSEMBLY, TAMO ASH, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-WA
                          BEZEL ASSY, TAMO ASH, MANUAL, STANDARD
                          09MY
                          BEZEL ASSEMBLY, TAMO ASH, MANUAL, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-TA
                          BEZEL ASSY, TETRA ROUGE, AUTO, STANDARD
                          LeMans
                          from £949.84
                          from £949.84
                          BEZEL ASSEMBLY, TETRA ROUGE, AUTO, STANDARD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-ACW
                          BEZEL ASSY, WALNUT, AUTO, PLASTIC SAT NAV
                          Up to (V) B08133
                          BEZEL ASSEMBLY, WALNUT, AUTO, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-AB
                          BEZEL ASSY, WALNUT, AUTO, METAL SAT NAV
                          From (V) B08134
                          from £773.50
                          from £773.50
                          NAV SURROUND, WALNUT, AUTO WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-AA
                          BEZEL ASSY, WALNUT, AUTO, SAT NAV
                          09MY
                          NAV SURROUND, WALNUT, AUTO WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-DCW
                          BEZEL ASSY, WALNUT, MANUAL, PLASTIC SAT NAV
                          Up to
                          BEZEL ASSEMBLY, WALNUT, MANUAL, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-DB
                          BEZEL ASSY, WALNUT, MANUAL, METAL, SAT NAV
                          from
                          from £773.50
                          from £773.50
                          NAV SURROUND, WALNUT, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-DA
                          BEZEL ASSY, WALNUT, MANUAL, SAT NAV
                          09MY
                          NAV SURROUND, WALNUT, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-BCW
                          BEZEL ASSY, MAHOGANY, AUTO, PLASTIC SAT NAV
                          Up to
                          BEZEL ASSEMBLY, MAHOGANY, AUTO, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-BB
                          BEZEL ASSY, MAHOGANY, AUTO, METAL SAT NAV
                          from
                          from £773.50
                          from £773.50
                          NAV SURROUND, MAHOGANY, AUTO WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-BA
                          BEZEL ASSY, MAHOGANY, AUTO, SAT NAV
                          09MY
                          NAV SURROUND, MAHOGANY, AUTO WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-ECW
                          BEZEL ASSY, MAHOGANY, MANUAL, PLASTIC SAT NAV
                          Up to (V) A08142
                          BEZEL ASSEMBLY, MAHOGANY, MANUAL, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-EB
                          BEZEL ASSY, MAHOG, MANUAL, METAL SAT NAV
                          From (V) A08143
                          from £773.50
                          from £773.50
                          NAV SURROUND, MAHOGANY, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-EA
                          BEZEL ASSY, MAHOGANY, MANUAL, SAT NAV
                          09MY
                          NAV SURROUND, MAHOGANY, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-CCW
                          BEZEL ASSY, BAMBOO, AUTO, PLASTIC SAT NAV
                          Up to
                          from £401.01
                          from £401.01
                          BEZEL ASSEMBLY, BAMBOO, AUTO, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          BEZEL ASSEMBLY, BAMBOO, AUTO, PLASTIC SAT NAV Genuine Aston Martin - Used In stock
                          Cracking on wood
                          # 2
                          MPN: 4G43-045K18-CB
                          BEZEL ASSY, BAMBOO, AUTO, METAL SAT NAV
                          from
                          from £773.50
                          from £773.50
                          NAV SURROUND, BAMBOO, AUTO WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-CA
                          BEZEL ASSY, BAMBOO, AUTO, SAT NAV
                          09MY
                          NAV SURROUND, BAMBOO, AUTO WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-FCW
                          BEZEL ASSY, BAMBOO, MANUAL, PLASTIC SAT NAV
                          Up to
                          from £833.69
                          from £833.69
                          BEZEL ASSEMBLY, BAMBOO, MANUAL, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-FB
                          BEZEL ASSY, BAMBOO, MANUAL, METAL SAT NAV
                          from
                          from £900.75
                          from £900.75
                          NAV SURROUND, BAMBOO, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-FA
                          BEZEL ASSY, BAMBOO, MANUAL, SAT NAV
                          09MY
                          NAV SURROUND, BAMBOO, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-GBW
                          BEZEL ASSY, PIANO BLACK, AUTO, PLASTIC SAT NAV
                          Up to (V) B08107
                          BEZEL ASSEMBLY, PIANO BLACK, AUTO, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-NB
                          BEZEL ASSY, PIANO BLACK, AUTO, METAL SAT NAV
                          From (V) B08108
                          from £792.84
                          from £792.84
                          NAV SURROUND, PIANO BLK, AUTO WITH SAT NAV Genuine Aston Martin - New In stock
                          # 2
                          MPN: 9G43-045K18-NA
                          BEZEL ASSY, PIANO BLACK, AUTO, SAT NAV
                          09MY
                          BEZEL ASSEMBLY PIANO BLACK, AUTO, SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045H43-HBW
                          BEZEL ASSY, PIANO BLACK, MANUAL, PLASTIC SAT NAV
                          Up to (V) A08054
                          BEZEL ASSEMBLY, PIANO BLACK, MANUAL, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-045K18-PB
                          BEZEL ASSY, PIANO BLACK, MANUAL, METAL SAT NAV
                          From (V) A08055
                          from £773.50
                          from £773.50
                          NAV SURROUND, PIANO BLK, MANUAL WITH SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 8D33-045K18-PA
                          BEZEL ASSY, PIANO BLACK, MANUAL, SAT NAV
                          09MY
                          BEZEL ASSEMBLY PIANO BLACK, MANUAL, SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-045H43-ABW
                          BEZEL ASSY, ALLOY, AUTO, PLASTIC SAT NAV
                          FROM DD101141
                          from £773.50
                          from £773.50
                          BEZEL ASSEMBLY, ALLOY, AUTO, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-045H43-BBW
                          BEZEL ASSY, ALLOY, MANUAL, PLASTIC SAT NAV
                          from
                          from £425.43
                          from £425.43
                          BEZEL ASSEMBLY, ALLOY, MANUAL, PLASTIC SAT NAV Genuine Aston Martin - New (to order)
                          BEZEL ASSEMBLY, ALLOY, MANUAL, PLASTIC SAT NAV Genuine Aston Martin - Used In stock
                          # 2
                          MPN: 4G43-045K18-SA
                          BEZEL ASSY, TETRA ROUGE, AUTO, SAT NAV
                          LeMans
                          from £1,020.37
                          from £1,020.37
                          BEZEL ASSEMBLY, TETRA ROUGE, AUTO, SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-SA
                          BEZEL ASSY, TAMO ASH, AUTO, SAT NAV
                          09MY
                          BEZEL ASSEMBLY, TAMO ASH, AUTO, SAT NAV Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-045K18-TA
                          BEZEL ASSY, TAMO ASH, MANUAL, SAT NAV
                          09MY
                          BEZEL ASSEMBLY, TAMO ASH, MANUAL, SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          -
                          NAVIGATION SURROUND ONLY, AUTO
                          11MY Nexus Alloy
                          # -
                          -
                          NAVIGATION SURROUND ONLY, MANUAL
                          11MY Nexus Alloy
                          # -
                          -
                          NAVIGATION SURROUND ONLY, AUTO
                          11MY Double Apex Alloy
                          # -
                          -
                          NAVIGATION SURROUND ONLY, MANUAL
                          11MY Double Apex Alloy
                          # -
                          -
                          SURROUND ASSY ONLY - NO NAV, AUTO
                          11MY Nexus Alloy
                          # -
                          -
                          SURROUND ASSY ONLY - NO NAV, MANUAL
                          11MY Nexus Alloy
                          # -
                          -
                          NAV SURROUND AND DOOR ASSY, AUTO
                          11MY Nexus Alloy
                          # -
                          -
                          NAV SURROUND AND DOOR ASSY, MANUAL
                          11MY Nexus Alloy
                          # -
                          -
                          SURROUND ASSY ONLY - NO NAV, AUTO
                          11MY Double Apex Alloy
                          # -
                          -
                          SURROUND ASSY ONLY - NO NAV, MANUAL
                          11MY Double Apex Alloy
                          # -
                          -
                          NAV SURROUND AND DOOR ASSY, AUTO
                          11MY Double Apex Alloy
                          # -
                          -
                          NAV SURROUND AND DOOR ASSY, MANUAL
                          11MY Double Apex Alloy
                          # -
                          -
                          NAV SURROUND AND DOOR ASSY, MANUAL
                          11MY Olive Ash Burl, 11MY
                          # -
                          -
                          NAV SURROUND AND DOOR ASSY, AUTO
                          11MY Olive Ash Burl, 11MY
                          # -
                          -
                          SURROUND ONLY, MANUAL - NO NAV
                          11MY Olive Ash Burl, 11MY
                          # -
                          -
                          SURROUND ONLY, AUTO - NO NAV
                          11MY Olive Ash Burl, 11MY
                          # -
                          -
                          COVER, RTI
                          For use with plastic sub surround
                          # -
                          -
                          COVER, RTI
                          For use with metal substrate/metal foil surround
                          # 3
                          MPN: 4G43-C04350-AFW
                          PANEL, INSTRUMENT, CENTRE
                          STANDARD
                          from £879.17
                          from £879.17
                          PANEL, INSTRUMENT, CENTRE Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 4G43-C04350-BCW
                          PANEL, INSTRUMENT, CENTRE
                          Sat Nav
                          from £455.85
                          from £455.85
                          PANEL, INSTRUMENT, CENTRE Genuine Aston Martin - New (to order)
                          PANEL, INSTRUMENT, CENTRE Genuine Aston Martin - Used In stock
                          # 3
                          MPN: 9G43-55210-ACW
                          PANEL, INSTRUMENT, CENTRE
                          11MY
                          PANEL, INSTRUMENT, CENTRE Genuine Aston Martin - New (to order)
                          # 3
                          MPN: CG43-55210-ACW
                          PANEL, INSTRUMENT, CENTRE
                          12MY
                          PANEL, INSTRUMENT, CENTRE Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 701441
                          SCREW, 4.2X13 PAN HEAD
                          SCREW, 4.2X13 PAN HEAD Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 701157
                          SCREW, 4.2X16, TAP
                          from £0.47
                          from £0.47
                          SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 702520
                          CLIP, 8.5X16X1.7
                          CLIP, 8.5X16X1.7 Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 6G33-045G37-AAW
                          DOOR, SAT NAV, ALLOY SAT NAV
                          from £352.51
                          from £352.51
                          DOOR, SAT NAV, ALLOY SAT NAV Genuine Aston Martin - New (to order)
                          # -
                          -
                          DOOR, CONSOLE NAVIGATION
                          11MY Nexus Alloy
                          # -
                          -
                          DOOR, CONSOLE NAVIGATION
                          11MY Double Apex Alloy
                          # 8
                          MPN: 6G33-18C917-AB
                          BRACKET
                          from £190.84
                          from £190.84
                          BRACKET - NAV MOUNTING Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 6G33-38392-AA
                          SPINDLE DAMPER
                          from £7.41
                          from £7.41
                          SPINDLE DAMPER Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 6G33-8979-AA
                          WASHER
                          from £2.95
                          from £2.95
                          WASHER Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 6G33-14163-AB
                          STOP BEZEL, INSTRUMENT PANEL VENEER
                          from £33.77
                          from £33.77
                          LOCATOR Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 6G33-104101-AB
                          SCREW, M4X10
                          SCREW, M4X10 Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 6G33-19363-AE
                          SPRING
                          from £22.03
                          from £22.03
                          SPRING, TORSION Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 6G33-10E901-AC
                          HOUSING, NAVIGATION DISPLAY
                          Less item 13
                          HOUSING, NAVIGATION DISPLAY Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-69-10571
                          HOUSING, NAVIGATION DISPLAY WITH SPRING
                          Includes Item 13
                          from £69.00
                          from £69.00
                          HOUSING, NAVIGATION DISPLAY WITH SPRING Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 6G33-14A462-AB
                          RETAINER, CONTROL SWITCH
                          RETAINER, CONTROL SWITCH Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 703170
                          SCREW, FLG, 4X8
                          from £1.27
                          from £1.27
                          SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 4G43-69-10786
                          VENEER FITTING KIT
                          Not illustrated
                          from £325.13
                          from £325.13
                          VENEER FITTING KIT Genuine Aston Martin - New (to order)
                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
