aston martin db9 (2009) transaxle, auto parts diagram

070000-P1 - Transaxle, Auto

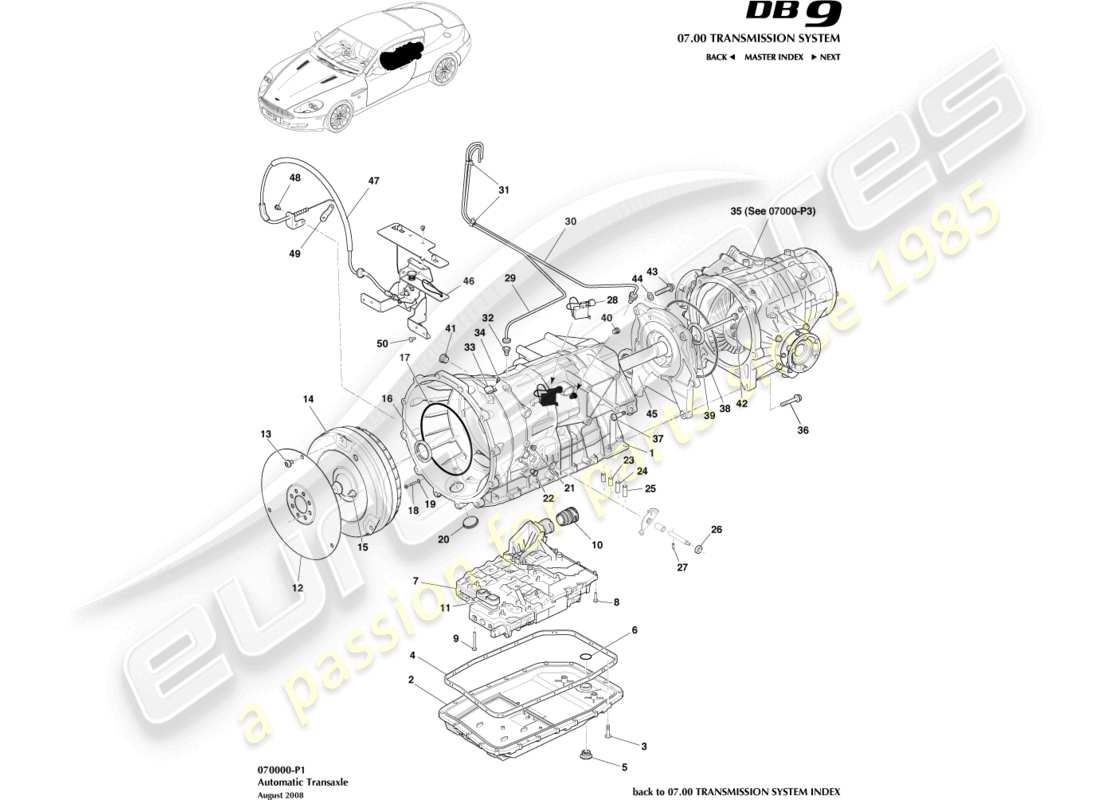

Aston Martin DB9 (2009) Transaxle, Auto Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price
                                                                                # 1
                                                                                MPN: 091725
                                                                                REMANNED INCL. TORQUE CONVERTER
                                                                                Upto 08MY - Includes item 14. You must also order item 42.
                                                                                from £4,660.80
                                                                                from £4,660.80
                                                                                AUTO GEARBOX INCL. TORQUE CONVERTER Genuine Aston Martin - New (to order)
                                                                                AUTO GEARBOX INCL. TORQUE CONVERTER Genuine Aston Martin - Used In stock
                                                                                # 1
                                                                                MPN: 8G43-70041-AD
                                                                                REMANNED INCL. TORQUE CONVERTER
                                                                                From 09MY - Includes item 14. You must also order item 42.
                                                                                TRANSMISSION UNIT, AUTO Genuine Aston Martin - New (to order)
                                                                                # -
                                                                                -
                                                                                HOUSING, AUTO GEARBOX
                                                                                # 2
                                                                                MPN: 4G43-42-10273
                                                                                OIL PAN
                                                                                from £161.39
                                                                                from £161.39
                                                                                OIL PAN Genuine Aston Martin - New (to order)
                                                                                # 3
                                                                                MPN: 4G43-42-10274
                                                                                SCREW, TORX HD, OIL PAN HOUSING
                                                                                from £5.66
                                                                                from £5.66
                                                                                SCREW, TORX HEAD Genuine Aston Martin - New (to order)
                                                                                # 4
                                                                                MPN: 4G43-184391-AA
                                                                                SEAL, TRANS PUMP
                                                                                from £27.28
                                                                                from £27.28
                                                                                SEAL, TRANS PUMP Genuine Aston Martin - New (to order)
                                                                                # 5
                                                                                MPN: 4G43-42-10277
                                                                                PLUG, OIL PAN
                                                                                from £4.44
                                                                                from £4.44
                                                                                SCREW PLUG, OIL SUMP Genuine Aston Martin - New (to order)
                                                                                # 6
                                                                                MPN: 4G43-7D741-AA
                                                                                O RING, TRANS PUMP
                                                                                from £0.82
                                                                                from £0.82
                                                                                O RING, TRANS PUMP Genuine Aston Martin - New (to order)
                                                                                # 7
                                                                                MPN: 4G43-42-10344
                                                                                MECHTRONIC UNIT/ TCM
                                                                                from £3,168.13
                                                                                from £3,168.13
                                                                                MECHTRONIC UNIT/ TCM Genuine Aston Martin - New (to order)
                                                                                # 7
                                                                                MPN: 8G43-14C247-AA
                                                                                MODULE, TRANSMISSION CONTROL
                                                                                09MY
                                                                                from £4,098.19
                                                                                from £4,098.19
                                                                                TRANSMISSION CONTROL MODULE Genuine Aston Martin - New (to order)
                                                                                # 8
                                                                                MPN: 4G43-807199-DA
                                                                                SCREW, M6X20 TORX
                                                                                from £0.68
                                                                                from £0.68
                                                                                SCREW, M6X20 TORX Genuine Aston Martin - New (to order)
                                                                                # 9
                                                                                MPN: 4G43-807199-CA
                                                                                SCREW, M6X59 TORX
                                                                                from £0.68
                                                                                from £0.68
                                                                                SCREW, M6X59 TORX Genuine Aston Martin - New (to order)
                                                                                # 10
                                                                                MPN: 4G43-7F183-AA
                                                                                GUIDE SLEEVE
                                                                                from £9.82
                                                                                from £9.82
                                                                                GUIDE SLEEVE, TRANSMISSION CONTROLLER Genuine Aston Martin - New (to order)
                                                                                # 11
                                                                                MPN: 4G43-7H586-AA
                                                                                ADAPTOR, AUTO TRANS MECH
                                                                                from £25.45
                                                                                from £25.45
                                                                                ADAPTOR, AUTO TRANS MECH Genuine Aston Martin - New (to order)
                                                                                # 12
                                                                                MPN: 4G43-6K375-AA
                                                                                FLEX PLATE
                                                                                from £41.69
                                                                                from £41.69
                                                                                FLEX PLATE, REAR Genuine Aston Martin - New (to order)
                                                                                FLEX PLATE, REAR Genuine Aston Martin - Used In stock
                                                                                # 13
                                                                                MPN: 4G43-HYG10549-AA
                                                                                SCREW M10 X 13 PAN HD
                                                                                Flex plate to converter
                                                                                from £1.42
                                                                                from £1.42
                                                                                SCREW-M10X13 PN HD Genuine Aston Martin - New (to order)
                                                                                # 14
                                                                                MPN: 4G43-42-10280
                                                                                TORQUE CONVERTER
                                                                                from £1,225.22
                                                                                from £1,225.22
                                                                                TORQUE CONVERTER Genuine Aston Martin - New (to order)
                                                                                # 15
                                                                                MPN: 4G43-HYG10549-AA
                                                                                SCREW M10 X 13 PAN HD
                                                                                Flex plate to crankshaft
                                                                                from £1.42
                                                                                from £1.42
                                                                                SCREW-M10X13 PN HD Genuine Aston Martin - New (to order)
                                                                                # 16
                                                                                MPN: 4G43-7A238-AA
                                                                                SEAL, TRANS INPUT SHAFT
                                                                                from £5.55
                                                                                from £5.55
                                                                                SEAL, TRANS INPUT SHAFT Genuine Aston Martin - New (to order)
                                                                                # 17
                                                                                MPN: 4G43-184335-AA
                                                                                O RING, TRANS HSG
                                                                                from £10.41
                                                                                from £10.41
                                                                                O RING, TRANS HSG Genuine Aston Martin - New (to order)
                                                                                # 18
                                                                                MPN: 4G43-807199-BA
                                                                                SCREW, M6X50 TORX
                                                                                from £3.07
                                                                                from £3.07
                                                                                SCREW, M6X50 TORX Genuine Aston Martin - New (to order)
                                                                                # 19
                                                                                MPN: 4G43-7L015-AA
                                                                                WASHER, TRANS HSG
                                                                                from £1.15
                                                                                from £1.15
                                                                                WASHER, TRANS HSG Genuine Aston Martin - New (to order)
                                                                                # 20
                                                                                MPN: 4G43-42-10021
                                                                                PLUG, TORQUE CONVERTER ACCESS
                                                                                from £3.90
                                                                                from £3.90
                                                                                PLUG-T/CONV ACCESS Genuine Aston Martin - New (to order)
                                                                                # 21
                                                                                MPN: 4G43-42-10276
                                                                                SCREW PLUG
                                                                                from £2.94
                                                                                from £2.94
                                                                                SCREW PLUG Genuine Aston Martin - New (to order)
                                                                                # 22
                                                                                MPN: 4G43-37521-BA
                                                                                PLUG, BLANK DOUBLE
                                                                                from £0.83
                                                                                from £0.83
                                                                                PLUG, BLANK DOUBLE Genuine Aston Martin - New (to order)
                                                                                # 23
                                                                                MPN: 4G43-29401-AA
                                                                                SLEEVE, SEAL 25.90
                                                                                from £1.99
                                                                                from £1.99
                                                                                SLEEVE, SEAL 25.90 Genuine Aston Martin - New (to order)
                                                                                # 24
                                                                                MPN: 4G43-29401-BA
                                                                                SLEEVE, SEAL 31.40
                                                                                from £2.39
                                                                                from £2.39
                                                                                SLEEVE, SEAL 31.40 Genuine Aston Martin - New (to order)
                                                                                # 25
                                                                                MPN: 4G43-29401-CA
                                                                                SLEEVE, SEAL 40.70
                                                                                from £2.92
                                                                                from £2.92
                                                                                SLEEVE, SEAL 40.70 Genuine Aston Martin - New (to order)
                                                                                # -
                                                                                -
                                                                                SEAL, TRANS SELECTOR SHIFT
                                                                                # 27
                                                                                MPN: 4G43-7Z309-AC
                                                                                PIN, TRANS SELECTOR SHIFT
                                                                                from £46.69
                                                                                from £46.69
                                                                                INS TRANS CSE COVER Genuine Aston Martin - New (to order)
                                                                                # 28
                                                                                MPN: 4G43-37-10250
                                                                                RFI CAPACITOR
                                                                                from £42.50
                                                                                from £42.50
                                                                                RFI CAPACITOR Genuine Aston Martin - New (to order)
                                                                                # 28
                                                                                MPN: 4G43-18801-AB
                                                                                MOUNTING PLATE, RFI CAPACITOR
                                                                                from £23.23
                                                                                from £23.23
                                                                                MOUNTING PLATE, RFI CAPACITOR Genuine Aston Martin - New (to order)
                                                                                # -
                                                                                -
                                                                                SCREW, M6 X 16 CAP ATTACH
                                                                                07MY
                                                                                # -
                                                                                -
                                                                                SCREW, M6 X 16 CAP ATTACH
                                                                                08MY
                                                                                # 29
                                                                                MPN: 4G43-7A245-AA
                                                                                HOSE, BREATHER, AUTO TRANSMISSION
                                                                                from £6.39
                                                                                from £6.39
                                                                                TUB ASY-AUTO TRANS Genuine Aston Martin - New (to order)
                                                                                # 30
                                                                                MPN: 4G43-7A245-BA
                                                                                HOSE, BREATHER, AUTO DIFFERENTIAL
                                                                                from £6.39
                                                                                from £6.39
                                                                                BREATHER AUTO DIFF Genuine Aston Martin - New (to order)
                                                                                # 31
                                                                                MPN: 701565
                                                                                CLIP, AUTO TRNS/DIFF BREATHER PIPES
                                                                                from £0.54
                                                                                from £0.54
                                                                                CLIP 4-6 DUX6.5 Genuine Aston Martin - New (to order)
                                                                                # 32
                                                                                MPN: 4G43-7179-AA
                                                                                PLUG, TRANS BREATHER
                                                                                from £7.23
                                                                                from £7.23
                                                                                PLUG, TRANSMISSION BREATHER Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 4G43-2860-AB
                                                                                CLIP
                                                                                Park brake cable
                                                                                from £0.52
                                                                                from £0.52
                                                                                P CLIP, DISENGAGE CABLE Genuine Aston Martin - New (to order)
                                                                                # 34
                                                                                MPN: 700606
                                                                                SCREW, FLG, M6X12, CLIP ATTACH
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                                # 36
                                                                                MPN: 703183
                                                                                BOLT, FLG, M10 X 45, DIFF TO TRANS
                                                                                from £0.47
                                                                                from £0.47
                                                                                BOLT M10 X 45 HEX Genuine Aston Martin - New (to order)
                                                                                # 37
                                                                                MPN: 703182
                                                                                BOLT, FLG, M10 X 65
                                                                                from £0.72
                                                                                from £0.72
                                                                                BOLT, M10 X 65, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                                                # 38
                                                                                MPN: 4G43-7J271-AB
                                                                                O RING
                                                                                Trans. Adaptor Plate
                                                                                from £9.60
                                                                                from £9.60
                                                                                O RG TRANS ADPT PLT Genuine Aston Martin - New (to order)
                                                                                # 39
                                                                                MPN: 4G43-42-10979
                                                                                SEAL, OUTPUT SHAFT (60X44X7MM)
                                                                                from £47.38
                                                                                from £47.38
                                                                                SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                                                                                # 40
                                                                                MPN: 4G43-42-10278
                                                                                SEAL, OUTPUT SHAFT (60X44X7MM)
                                                                                from £5.54
                                                                                from £5.54
                                                                                SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                                                                                # 41
                                                                                MPN: 4G43-42-10279
                                                                                SCREW PLUG
                                                                                from £10.89
                                                                                from £10.89
                                                                                SCREW PLUG Genuine Aston Martin - New (to order)
                                                                                # 42
                                                                                MPN: 4G43-9912553-AA
                                                                                CAPSCREW, M8 X 80, OUTPUT SHAFT
                                                                                Must be ordered with new transmission
                                                                                from £5.40
                                                                                from £5.40
                                                                                BOLT M8 X 80 CAP SOCKET Genuine Aston Martin - New (to order)
                                                                                # 43
                                                                                MPN: 4G43-42-10977
                                                                                SCREW M10X50, ADAPTOR PLATE
                                                                                SCREW, M10 X 50 Genuine Aston Martin - New (to order)
                                                                                # 44
                                                                                MPN: 4G43-42-10978
                                                                                USIT RING
                                                                                USIT RING Genuine Aston Martin - New (to order)
                                                                                # 45
                                                                                MPN: 4G43-42-11251
                                                                                OUTPUT SHAFT
                                                                                from £453.40
                                                                                from £453.40
                                                                                SHAFT, OUTPUT Genuine Aston Martin - New (to order)
                                                                                # -
                                                                                -
                                                                                O RING, OUTPUT SHAFT
                                                                                # -
                                                                                -
                                                                                SEAL, OUTPUT SHAFT (72X44X8MM)
                                                                                # 46
                                                                                MPN: 4G43-7J168-AC
                                                                                BRACKET ASSY, TRANS PARK
                                                                                from £107.10
                                                                                from £107.10
                                                                                STUD Genuine Aston Martin - New (to order)
                                                                                STUD Genuine Aston Martin - Used In stock
                                                                                # 46
                                                                                MPN: 8G43-7J168-AC
                                                                                BRACKET ASSY, TRANS PARK
                                                                                08MY
                                                                                from £165.37
                                                                                from £165.37
                                                                                BRACKET ASSEMBLY, TRANS PARK Genuine Aston Martin - New (to order)
                                                                                # 46
                                                                                MPN: 9D33-7J168-CB
                                                                                BRACKET ASSY, TRANS PARK
                                                                                09MY
                                                                                from £155.64
                                                                                from £155.64
                                                                                BRACKET ASSEMBLY AUTO PARK Genuine Aston Martin - New (to order)
                                                                                # 47
                                                                                MPN: 4G43-7J167-AC
                                                                                CABLE ASSY
                                                                                from £34.68
                                                                                from £34.68
                                                                                CABLE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                CABLE ASSEMBLY Genuine Aston Martin - Used In stock
                                                                                # 47
                                                                                MPN: 8G43-7J167-AD
                                                                                CABLE ASSY
                                                                                08MY
                                                                                from £63.05
                                                                                from £63.05
                                                                                CABLE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                # 47
                                                                                MPN: 9D33-7J167-CA
                                                                                CABLE ASSY
                                                                                09MY
                                                                                CABLE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                # 48
                                                                                MPN: 700606
                                                                                SCREW, FLG, M6 X 12
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                                # 49
                                                                                MPN: 4G43-7A257-AB
                                                                                LEVER ARM, AUTO TRANSMISSION
                                                                                from £1.88
                                                                                from £1.88
                                                                                SEL LVR AUTO Genuine Aston Martin - New (to order)
                                                                                # 50
                                                                                MPN: 703149
                                                                                SCREW, M6 X 10, BRACKET ATTACH
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                                                                # -
                                                                                -
                                                                                FLUID, AUTO TRANSMISSION, 1LT
