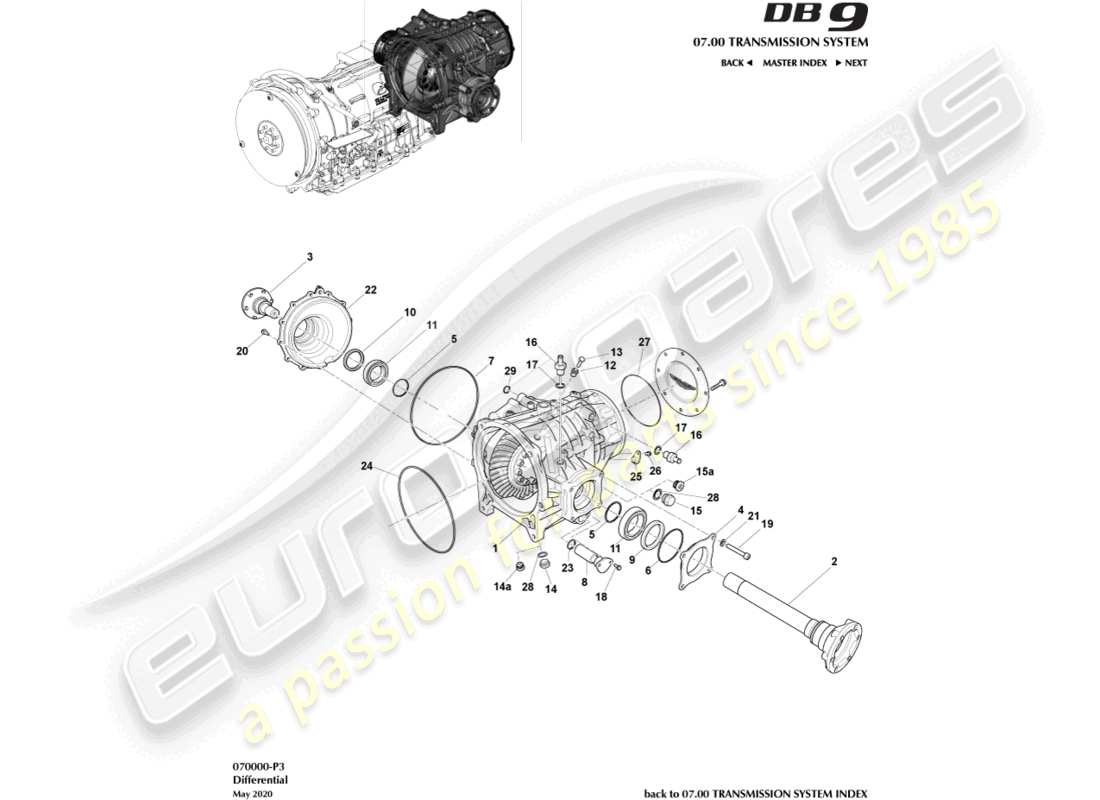

aston martin db9 (2009) differential parts diagram

070000-P3 - DIFFERENTIAL

Aston Martin DB9 (2009) Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 9G43-4200-AB
                                                    DIFFERENTIAL, 3.15:1, 6 SPEED
                                                    Up To VIN A14121
                                                    from £13,481.00
                                                    from £13,481.00
                                                    DIFFERENTIAL, 3.15:1, 6 SPEED Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: AG43-4200-AB
                                                    DIFFERENTIAL, 3.15:1, 6 SPEED
                                                    FROM VIN A14144
                                                    from £8,013.19
                                                    from £8,013.19
                                                    DIFFERENTIAL, 3.15:1, 6 SPEED Genuine Aston Martin - New (to order)
                                                    # 2
                                                    MPN: 4G43-27-10480
                                                    OUTPUT SHAFT, LH
                                                    Up To VIN A14121
                                                    from £911.88
                                                    from £911.88
                                                    OUTPUT SHAFT, LH Genuine Aston Martin - New (to order)
                                                    # 2
                                                    MPN: CD33-27-10005
                                                    OUTPUT SHAFT, LH
                                                    FROM VIN A14144
                                                    from £733.94
                                                    from £733.94
                                                    OUTPUT SHAFT, LH Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: 4G43-27-10601
                                                    OUTPUT SHAFT, RH
                                                    Up To VIN A14121
                                                    from £520.85
                                                    from £520.85
                                                    O PUT SHAFT-RHT SIDE Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: CD33-27-10006
                                                    OUTPUT SHAFT, RH
                                                    FROM VIN A14144
                                                    from £733.94
                                                    from £733.94
                                                    OUTPUT SHAFT, RH Genuine Aston Martin - New (to order)
                                                    # 4
                                                    MPN: 4G43-27-10481
                                                    COVER, OUTPUT SHAFT, DIFF
                                                    from £165.37
                                                    from £165.37
                                                    COVER, OUTPUT SHAFT, DIFF Genuine Aston Martin - New (to order)
                                                    # 5
                                                    MPN: 702813
                                                    SHIM
                                                    from £2.55
                                                    from £2.55
                                                    SHIM Genuine Aston Martin - New (to order)
                                                    # 6
                                                    MPN: 4G43-27-10482
                                                    O RING, 2.62 X 75.87
                                                    from £7.21
                                                    from £7.21
                                                    O RING 2.62 X 75.87 Genuine Aston Martin - New (to order)
                                                    # 7
                                                    MPN: 4G43-27-10500
                                                    O RING, 3.53 X 228.19
                                                    from £48.63
                                                    from £48.63
                                                    O RING-3.53 X 228.19 Genuine Aston Martin - New (to order)
                                                    # 8
                                                    MPN: 4G43-27-10490
                                                    FILTER, OIL
                                                    from £119.51
                                                    from £119.51
                                                    OIL FILTER Genuine Aston Martin - New (to order)
                                                    # 9
                                                    MPN: 4G43-27-10483
                                                    SEAL, DIFF OUTPUT, 55 X 72 X 8, LH
                                                    from £44.47
                                                    from £44.47
                                                    SEAL-DIFFOUTPUT-LEFT Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: 4G43-27-10604
                                                    SEAL, DIFF OUTPUT, 55 X 70 X 8, RH
                                                    from £44.03
                                                    from £44.03
                                                    SEAL-DIFFOUTPUT SHFT Genuine Aston Martin - New (to order)
                                                    # 11
                                                    MPN: CD33-27-10007
                                                    BALL BEARING, 50 X 80 X 16
                                                    from £37.06
                                                    from £37.06
                                                    BALL BEARING, 50X80X16 Genuine Aston Martin - New (to order)
                                                    # 12
                                                    MPN: 4G43-27-10488
                                                    ADAPTOR, BREATHER
                                                    from £56.02
                                                    from £56.02
                                                    ADAPTOR, BREATHER Genuine Aston Martin - New (to order)
                                                    # 13
                                                    MPN: 4G43-27-10489
                                                    PLUG, BREATHER
                                                    from £12.13
                                                    from £12.13
                                                    PLUG, BREATHER Genuine Aston Martin - New (to order)
                                                    # 14
                                                    MPN: 4G43-27-10244
                                                    PLUG, DRAIN, M22
                                                    from £30.61
                                                    from £30.61
                                                    PLUG, OIL DRAIN, MAGNETIC Genuine Aston Martin - New (to order)
                                                    # 14a
                                                    MPN: CD33-27-10004
                                                    PLUG, MAGNETIC, M18 X 1.5
                                                    from £18.57
                                                    from £18.57
                                                    DRAIN PLUG-MAGNETIC Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: 4G43-27-10493
                                                    PLUG, M22
                                                    from £8.36
                                                    from £8.36
                                                    PLUG - OIL LEVEL M22 Genuine Aston Martin - New (to order)
                                                    # 15a
                                                    MPN: CD33-4N205-AA
                                                    PLUG, M18 X 1.5
                                                    OIL PLUG Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: 4G43-27-10494
                                                    CONNECTOR
                                                    from £26.86
                                                    from £26.86
                                                    CONNECTOR Genuine Aston Martin - New (to order)
                                                    # 17
                                                    MPN: 4G43-27-10487
                                                    GASKET, FLAT, 16 X 22
                                                    from £0.49
                                                    from £0.49
                                                    GASKET, FLAT, 16X22 Genuine Aston Martin - New (to order)
                                                    # 18
                                                    MPN: 4G43-27-10492
                                                    SCREW, M5 X 12
                                                    from £1.85
                                                    from £1.85
                                                    SCREW M5 X 12 Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: 4G43-27-10485
                                                    SCREW, M8 X 30
                                                    from £0.50
                                                    from £0.50
                                                    SCREW, M8X30 Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: 4G43-27-10499
                                                    SCREW, M8 X 25
                                                    from £1.29
                                                    from £1.29
                                                    SCREW, M8X25 Genuine Aston Martin - New (to order)
                                                    # 21
                                                    MPN: CD33-27-10008
                                                    WASHER, ELASTIC CURVE
                                                    from £2.93
                                                    from £2.93
                                                    WASHER, ELASTIC CURVE Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: CD33-27-10009
                                                    COVER, DIFFERENTIAL ASSY
                                                    from £722.61
                                                    from £722.61
                                                    COVER, DIFFERENTIAL ASSEMBLY Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: 4G43-27-10491-PK
                                                    O RING, 2.62 X 20.63
                                                    Pack of 10
                                                    from £25.00
                                                    from £25.00
                                                    O RING, 2.62X20.63 Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: 4G43-7J271-AB
                                                    O RING SEAL TO TRANSMISSION
                                                    from £9.60
                                                    from £9.60
                                                    O RG TRANS ADPT PLT Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: 4G43-27-10495
                                                    SPEED SENSOR
                                                    from £316.85
                                                    from £316.85
                                                    SPEED SENSOR Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: 702812
                                                    SCREW, M6 X 16
                                                    from £0.72
                                                    from £0.72
                                                    BOLT M6 X 16 FLANGE Genuine Aston Martin - New (to order)
                                                    # 27
                                                    MPN: 4G43-27-11158
                                                    O RING, REAR COVER
                                                    from £33.56
                                                    from £33.56
                                                    O RING, REAR COVER Genuine Aston Martin - New (to order)
                                                    # 28
                                                    MPN: 4G43-27-10245-PK
                                                    SEAL, 22X28X1.5
                                                    Pack of 10
                                                    from £24.57
                                                    from £24.57
                                                    SEAL, 22X28X1.5 Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: 4G43-27-10502
                                                    O RING
                                                    from £1.05
                                                    from £1.05
                                                    O RING 2.69 X 9.92 Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: 704349-PK
                                                    OIL, DIFFERENTIAL LUBRICATING, 75W-90, 1 LTR
                                                    Pack of 12
                                                    from £177.61
                                                    from £177.61
                                                    TRANSAXLE OIL, AUTO, 75W-90, 1 LTR Genuine Aston Martin - New (to order)
