aston martin db9 (2010) engine cooling parts diagram

030300-E1 - engine cooling

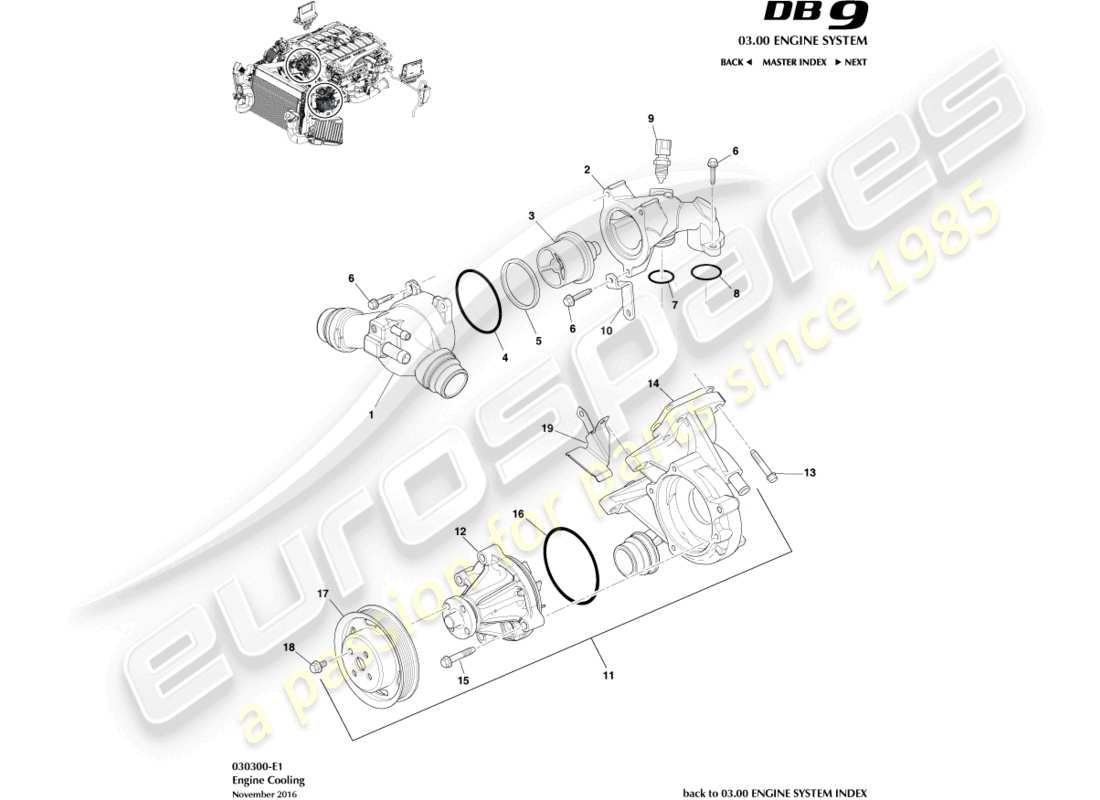

Aston Martin DB9 (2010) Engine Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # -
                                MPN: 7G43-8A586-AA
                                HOUSING AND CONNECTOR ASSY, ENGINE THERMOSTAT
                                Up to 08MY
                                from £546.66
                                from £546.66
                                THERMOSTAT HOUSING ASSEMBLY Genuine Aston Martin - New (to order)
                                # -
                                MPN: 8G43-8A586-AC
                                HOUSING AND CONNECTOR ASSY, ENGINE THERMOSTAT
                                FROM 08MY
                                from £768.44
                                from £768.44
                                HOUSING AND CONNECTOR ASSEMBLY, ENGINE THERMOSTAT Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 7G43-9K478-AA
                                HOUSING ASSY, THERMOSTAT
                                Up to 08MY
                                HOUSING ASSEMBLY, THERMOSTAT Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 8G43-9K478-AA
                                HOUSING ASSY, THERMOSTAT
                                FROM 08MY
                                HOUSING ASSEMBLY, THERMOSTAT Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 7G43-8594-AA
                                CONNECTION, WATER OUTLET
                                CONNECTION, WATER OUTLET Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 4G4E-8575-AB
                                THERMOSTAT ASSY
                                from £200.23
                                from £200.23
                                THERMO ASY WTR Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 32-85114
                                O-RING
                                from £1.50
                                from £1.50
                                O-RING Genuine Aston Martin - New In stock
                                # 5
                                MPN: 32-85116
                                SEAL, THERMOSTAT
                                from £104.07
                                from £104.07
                                SEAL, THERMOSTAT Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 702855
                                BOLT AND WASHER, M6
                                from £1.62
                                from £1.62
                                BOLT &WASHER-M6X30 Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 32-85112
                                O-RING
                                from £3.33
                                from £3.33
                                O RING-WATER OUTLET Genuine Aston Martin - New In stock
                                # 8
                                MPN: 32-85113
                                O-RING
                                from £0.52
                                from £0.52
                                O RING SEAL Genuine Aston Martin - New In stock
                                # 9
                                MPN: 6G43-39-10080
                                SENSOR, ENGINE COOL TEMP
                                from £260.74
                                from £260.74
                                SNSR ASY-ENG ELEC CN Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 32-85115
                                BRACKET, THERMO CONNECTOR
                                Up to 08MY
                                from £49.12
                                from £49.12
                                BRACKET, THERMO CONNECTOR Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 7G43-8A588-AA
                                BRACKET, THERMO CONNECTOR
                                FROM 08MY
                                from £55.25
                                from £55.25
                                BRKT-ENG.THERMO CONN Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 7G43-8K168-AB
                                WATER PUMP & HOUSING ASSY
                                Up to 08MY
                                from £672.63
                                from £672.63
                                WATER PUMP & HOUSING ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 8G43-8K168-AA
                                WATER PUMP & HOUSING ASSY
                                08MY
                                from £925.30
                                from £925.30
                                WATER PUMP & HOUSING ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 8G43-8K168-BA
                                WATER PUMP & HOUSING ASSY
                                FROM 09MY
                                WATER PUMP & HOUSING ASSEMBLY Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-05-10957
                                WATER PUMP ASSY
                                from £453.38
                                from £453.38
                                W/PUMP ASSY(NOSECONE Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 702842
                                BOLT AND WASHER, M8X41 HEX FLG
                                from £0.47
                                from £0.47
                                BOLT-M8X1.25X41 HEX Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 697741
                                BOLT AND WASHER, M8X49 HEX FLG
                                from £0.54
                                from £0.54
                                BOLT-M8 X 49.3 FLG Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 05-85382
                                GASKET
                                Housing to Block
                                from £32.48
                                from £32.48
                                WATER PUMP GASKET Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 702846
                                BOLT, M8 X 45, WATERPUMP TO HOUSING
                                BOLT-M8X45 HEX FLG 8 Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 1R12-32-10531
                                GASKET, WATER PUMP
                                from £3.16
                                from £3.16
                                SEAL RING-4.0 ID Genuine Aston Martin - New In stock
                                # 17
                                MPN: 05-85104
                                PULLEY, WATER PUMP
                                from £375.53
                                from £375.53
                                PULLEY, WATER PUMP Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 702843
                                SCREW AND WASHER, M8
                                from £0.71
                                from £0.71
                                SCREW &WASHER M8X19 Genuine Aston Martin - New (to order)
                                # 19
                                MPN: 4G43-18482-AA
                                GUARD, WATER PUMP HOSE
                                from £24.36
                                from £24.36
                                HOSE GUARD Genuine Aston Martin - New (to order)
